Why Choose the ABB E297161012 Installation Relay?

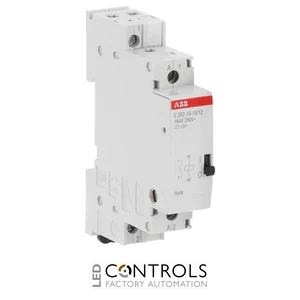

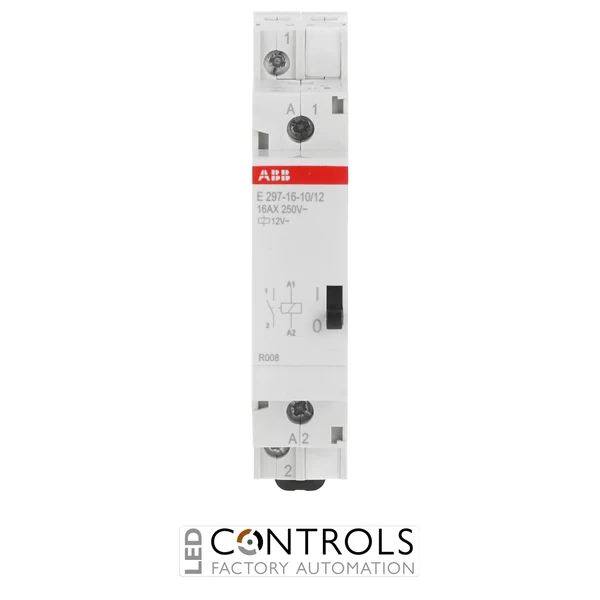

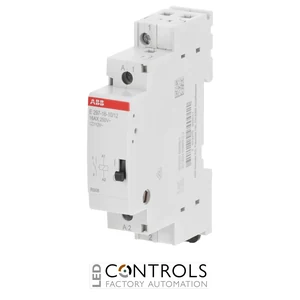

The ABB E297161012, type designation E297-16-10/12, is a compact monostable installation relay designed for dependable switching of lighting, ventilation, air-conditioning and other electrical loads. Part of ABB's E297 installation relay range, it combines a 16 A contact rating with one normally open contact in a compact single-module DIN-rail format.
The E297-16-10/12 features one normally open (1NO) main contact and a 12 V AC control coil. As a monostable relay, its contact remains operated while the control voltage is applied to the coil and automatically returns to its normal open position when the control voltage is removed, providing straightforward maintained-control switching.
With a rated operational voltage of 250 V AC, rated current of 16 A and operating frequency of 50/60 Hz, the E297161012 provides reliable load control in an 18 mm-wide DIN-rail module. Its low-loss coil, low switching noise and temporary manual operating lever make it a practical choice for residential, commercial and industrial electrical control systems.
Key Advantages
- 16 A switching capacity for lighting and other electrical loads.
- 1NO contact configuration provides straightforward normally open switching.
- 12 V AC control coil suits compatible low-voltage AC control circuits.
- Optimised coil design provides low switching noise and low power loss.
- Compact 18 mm single-module width saves valuable DIN-rail space.
- Front operating lever provides temporary manual operation and contact-position indication.
Key Features
- ABB E297 monostable installation relay series.
- 16 A rated current.
- One normally open (1NO) main contact.
- 12 V AC rated control supply voltage.
- 250 V AC rated operational voltage.
- 50/60 Hz rated frequency.
- 4 kV rated impulse withstand voltage.
- Electromagnetically operated monostable switching.
- 0.5 W power loss.
- Low-noise control coil optimised for efficient operation.
- Front lever for temporary manual operation and contact-position indication.
- DIN-rail mounting with an 18 mm module width.
- Compatible with ABB E298 main contact modules and E299 auxiliary contact modules.
Reliable 12 V AC Monostable Load Control
A monostable installation relay is an electromechanical switching device controlled by a continuous coil signal. When 12 V AC is applied to the ABB E297-16-10/12 control coil, its normally open contact closes and remains operated while the coil is energised; when the control voltage is removed, the contact automatically returns to its normal open position.
ABB's E297 range uses coils designed for low switching noise and low power loss, helping support reliable operation in modular electrical installations. The E297-16-10/12 can also be combined with compatible E298 main contact modules to increase the number of power contacts and E299 auxiliary contact modules for additional signalling and control functions.
Typical Applications
- Residential and commercial lighting control.
- Industrial lighting systems.
- Building automation using 12 V AC control circuits.
- Ventilation and fan control.
- Air-conditioning control circuits.
- Electrical distribution and modular control panels.
- Public-building switching systems.
- Industrial machinery and general load-control applications.
