Why Choose the ABB E297-16-20/12 Installation Relay?

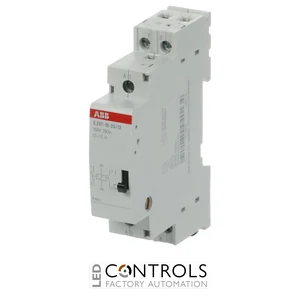

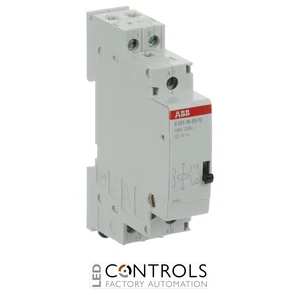

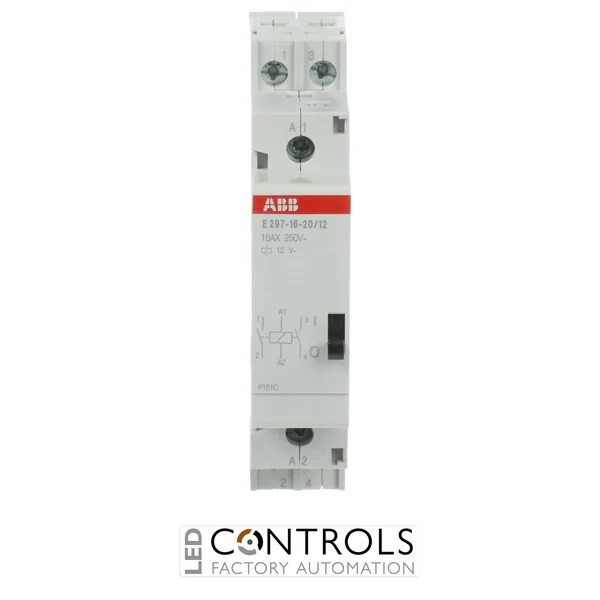

The ABB E297-16-20/12 is a compact and reliable monostable installation relay designed for switching electrical loads in industrial, commercial and building control applications. As part of the ABB E297 installation relay series, it combines a 16 A switching rating with two normally open contacts and a 12 V AC control coil.
The E297 series uses an electromagnetically operated switching mechanism controlled by a maintained control signal. When the coil is energised, the relay closes its normally open contacts and remains operated while control voltage is present; when the control voltage is removed, the relay automatically returns to its neutral position. Its optimised coil provides low power loss and helps maintain a low operating temperature inside electrical distribution boards.
With a 16 A rated current, 250 V AC rated operational voltage, 12 V AC control voltage and 2NO contact configuration, the E297-16-20/12 is well suited to lighting, ventilation, air-conditioning and similar electrical control circuits. Its compact 18 mm DIN rail format enables straightforward integration into modular distribution boards and control panels.
Key Advantages
- Compact monostable installation relay for electrical control applications.
- 16 A rated current for switching compatible electrical loads.
- Two normally open (2NO) contacts provide two switching paths.
- 12 V AC control coil suitable for low-voltage AC control circuits.
- Optimised electromagnetic coil provides low power loss and reduced operating temperature.
- Suitable for industrial plants, commercial premises and public buildings.
- Compact 18 mm DIN rail format conserves panel space.
Key Features
- ABB E297 installation relay series.
- 16 A rated current.
- 2NO main contact configuration.
- 250 V AC rated operational voltage.
- 12 V AC coil control voltage.
- 50–60 Hz rated frequency.
- 1 W power loss.
- 4 kV rated impulse withstand voltage.
- Monostable electromagnetic operating principle.
- DIN rail mounting with an 18 mm module width.
- Screw-terminal electrical connections.
Reliable Switching for Electrical Installations
Monostable installation relays such as the ABB E297-16-20/12 provide electrically controlled switching for loads that need to remain active while a maintained control signal is applied. Energising the 12 V AC coil closes the two normally open contacts, while removing the control voltage automatically returns the relay to its neutral off position.
The E297 series is designed primarily for industrial plants while also being suitable for commercial and public buildings. Its compact DIN rail construction, 16 A switching capability and optimised electromagnetic coil make the E297-16-20/12 a practical solution for lighting, air-conditioning, fan and other compatible control applications.
Typical Applications
- Lighting control circuits.
- Ventilation and fan switching.
- Air-conditioning control systems.
- Commercial and public building installations.
- Industrial electrical control panels.
- DIN rail distribution boards and automation systems.
