Why Choose the ABB E297-16-11/12 Installation Relay?

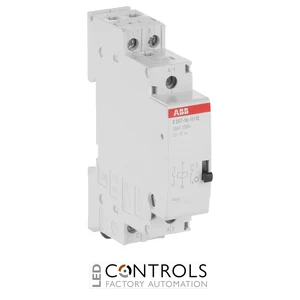

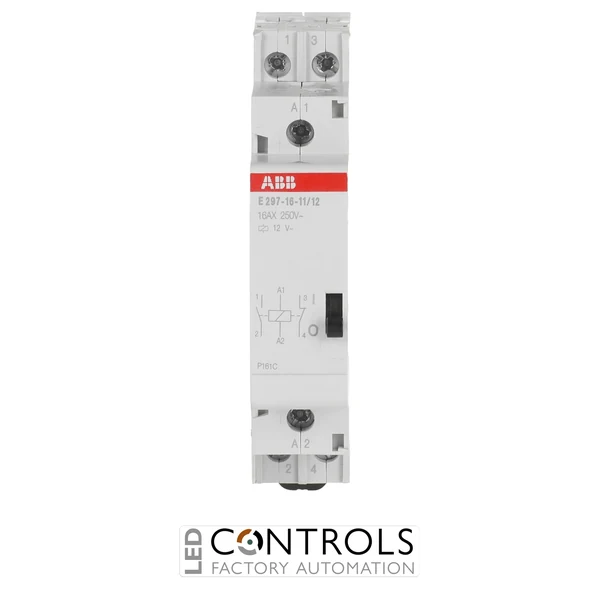

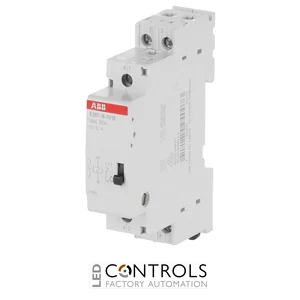

The ABB E297-16-11/12 is a compact and reliable monostable installation relay designed for switching electrical loads in industrial, commercial and building control applications. As part of the ABB E297 installation relay series, it combines a 16 A switching rating with one normally open and one normally closed contact and a 12 V AC control coil.
The E297 series uses an electromagnetically operated switching mechanism controlled by a maintained control signal. When the coil is energised, the relay changes the state of its contacts and remains operated while the control voltage is present; when the control voltage is removed, the relay automatically returns to its normal state. Its optimised coil provides low power loss and reduced operating temperature for dependable use in electrical distribution boards.
With a 16 A rated current, 250 V AC rated operational voltage, 12 V AC control voltage and 1NO+1NC contact configuration, the E297-16-11/12 provides flexible switching for lighting, ventilation, air-conditioning and similar electrical control circuits. Its compact 18 mm DIN rail format enables straightforward integration into modular distribution boards and control panels.
Key Advantages
- Compact monostable installation relay for electrical control applications.
- 16 A rated current for switching compatible electrical loads.
- 1NO+1NC contact configuration provides normally open and normally closed switching functions.
- 12 V AC control coil suitable for low-voltage AC control circuits.
- Low 0.5 W power loss supports efficient operation and reduced heat generation.
- Front lever enables temporary manual operation and indicates contact position.
- Compact 18 mm DIN rail format conserves distribution-board space.
Key Features
- ABB E297 installation relay series.
- 16 A rated current.
- 1NO+1NC main contact configuration.
- 250 V AC rated operational voltage.
- 12 V AC rated control supply voltage.
- 50–60 Hz rated frequency.
- 0.5 W power loss.
- 4 kV rated impulse withstand voltage.
- Monostable electromagnetic operating principle.
- DIN rail mounting with an 18 mm module width.
- Compatible with ABB E298 additional power contact and E299 auxiliary contact modules.
Reliable Switching for Electrical Installations
Monostable installation relays such as the ABB E297-16-11/12 provide electrically controlled switching for circuits that need to change state while a maintained control signal is applied. Its combination of one normally open and one normally closed contact provides complementary switching functions from a single compact device.
The E297 series is designed primarily for industrial plants while also being suitable for commercial and public buildings. Its quiet magnetic system, low-loss coil, compact DIN rail construction and 16 A switching capability make the E297-16-11/12 a practical solution for lighting, air-conditioning, fan and other compatible control applications.
Typical Applications
- Lighting control circuits.
- Ventilation and fan switching.
- Heating and air-conditioning control systems.
- Commercial and public building installations.
- Industrial electrical control panels.
- DIN rail distribution boards and automation systems.
