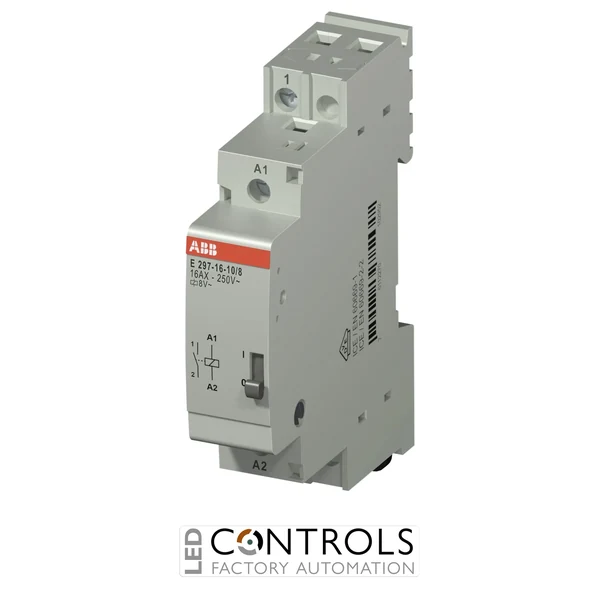

Why Choose the ABB E297-16-10/8 Installation Relay?
The ABB E297-16-10/8 is a compact and reliable monostable installation relay designed for switching electrical loads in building control, distribution and automation applications. As part of the ABB E297 installation relay series, it combines a 16 A rated switching current with a single normally open contact and an 8 V AC control coil.
This electromechanical relay is operated by a continuous control signal and is designed for low switching noise and low power loss. Its modular construction allows straightforward integration into electrical distribution boards and control panels, while screw terminals provide secure connections for power and control wiring.
With a 16 A rated current, 250 V AC rated contact voltage and 8 V AC coil control voltage, the E297-16-10/8 provides dependable switching for lighting and other electrical loads. Its compact 18 mm width occupies only one DIN module, helping conserve valuable installation space.
Key Advantages
- Compact monostable installation relay for electrical control applications.
- 16 A rated current for dependable load switching.
- Single normally open (1NO) contact configuration.
- 8 V AC control coil for low-voltage control circuits.
- Low-noise coil design suited to building and control installations.
- Only 18 mm wide for space-efficient DIN rail mounting.
Key Features
- ABB E297 installation relay series.
- 16 A rated switching current.
- 250 V AC rated contact voltage.
- 1NO normally open contact.
- 8 V AC rated control voltage.
- 50–60 Hz rated frequency.
- DIN rail mounting with screw-terminal connections.
- Low power loss and low switching noise.
Reliable Switching for Electrical Control Systems
Installation relays such as the ABB E297 provide electrically controlled switching between a low-voltage control circuit and connected electrical loads. The E297-16-10/8 uses an 8 V AC coil to operate its normally open contact, allowing remote control of lighting and other loads from compatible control equipment.
The E297 series is designed for compact modular installations where reliable switching, low coil noise and efficient use of panel space are important. DIN rail mounting and an 18 mm module width make the relay particularly convenient for integration into distribution boards, building controls and electrical automation systems.
Typical Applications
- Building electrical control systems.
- Lighting switching and control circuits.
- Electrical distribution boards.
- Industrial and commercial control panels.
- Remote load switching applications.
- DIN rail mounted automation and control systems.
