Why Choose the ABB E297-16-11/8 Installation Relay?

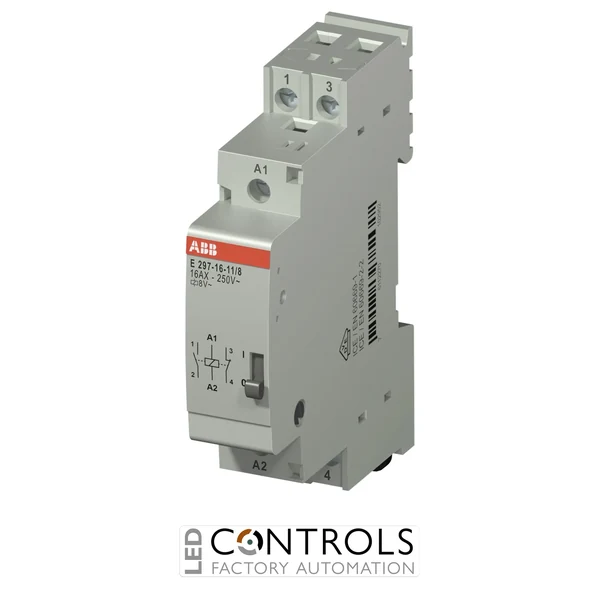

The ABB E297-16-11/8 is a compact and reliable monostable installation relay designed for switching electrical loads in industrial, commercial and building control applications. As part of the ABB E297 installation relay series, it combines a 16 A switching rating with one normally open and one normally closed contact and an 8 V AC control coil.
The E297 series uses an electromechanical switching mechanism operated by a maintained control voltage. When the coil is energised, the relay changes the state of its contacts and remains operated while the control voltage is present; when the control voltage is removed, the relay automatically returns to its normal state. The series features a low-noise coil optimised for low power loss and dependable operation in modular electrical installations.
With a 16 A rated current, 250 V AC contact voltage, 8 V AC control voltage and 1NO+1NC contact configuration, the E297-16-11/8 provides flexible switching for lighting, ventilation and other compatible electrical circuits. Its compact 18 mm DIN rail format enables straightforward integration into electrical distribution boards and control panels.
Key Advantages
- Compact monostable installation relay for electrical control applications.
- 16 A rated current for switching compatible electrical loads.
- 1NO+1NC contact configuration provides normally open and normally closed switching functions.
- 8 V AC control coil suitable for low-voltage AC control circuits.
- Low-noise electromagnetic operation for building and industrial installations.
- Low 0.5 W power loss supports efficient operation.
- Compact 18 mm DIN rail format conserves distribution-board space.
Key Features
- ABB E297 installation relay series.
- 16 A rated current.
- 1NO+1NC contact configuration.
- 250 V AC maximum contact voltage.
- 8 V AC rated coil voltage.
- 0.5 W power loss.
- Monostable electromechanical operating principle.
- DIN rail mounting with an 18 mm module width.
- Screw-terminal electrical connections.
- Expandable within the E297 system using compatible ABB contact modules.
Reliable Switching for Electrical Installations
Monostable installation relays such as the ABB E297-16-11/8 provide electrically controlled switching for circuits that need to change state while a maintained control signal is applied. Its combination of one normally open and one normally closed contact enables complementary switching functions to be implemented from a single compact device.
The E297 series is designed for modular electrical installations and combines low-noise switching with a space-saving DIN rail enclosure. Its 16 A contact rating and 8 V AC control coil make the E297-16-11/8 suitable for low-voltage control arrangements used in building services and industrial electrical systems.
Typical Applications
- Lighting control circuits.
- Ventilation and fan switching.
- Heating and air-conditioning control systems.
- Commercial and public building installations.
- Industrial electrical control panels.
- DIN rail distribution boards and automation systems.
