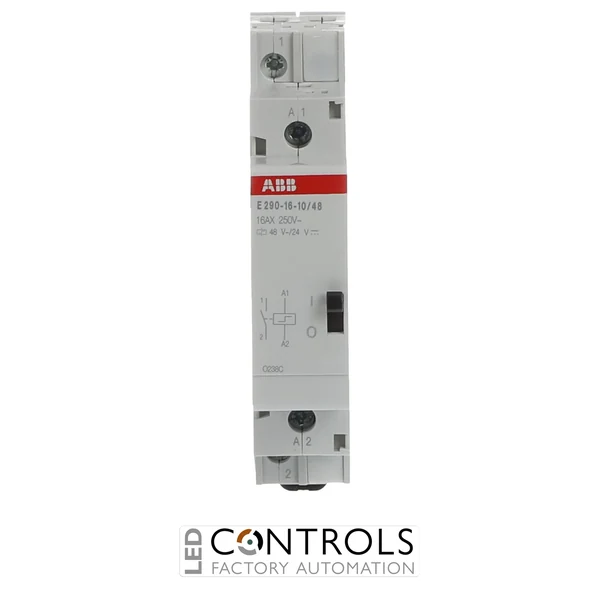

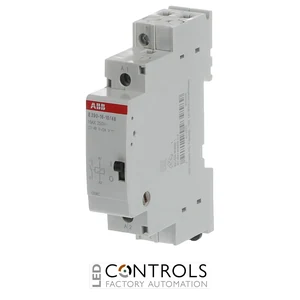

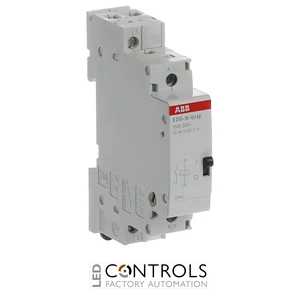

Why Choose the ABB E290-16-10/48 Latching Relay?
The ABB E290-16-10/48 is a compact and reliable electromechanical latching relay designed for energy-efficient switching of lighting and other suitable electrical loads from multiple control points. As part of the ABB E290 latching relay series, it combines a 16 A switching rating with one normally open contact and a 48 V AC / 24 V DC control coil.
Unlike a conventional monostable relay, the E290 uses an impulse-operated mechanical latching mechanism. Each brief control pulse changes the contact state, after which the contact remains mechanically latched without continuous coil energisation. This operating principle reduces control-circuit power consumption and makes the relay particularly suitable for lighting circuits controlled from multiple normally open push-buttons.
With a 16 A rated current, 250 V AC rated voltage, 48 V AC / 24 V DC control voltage and 1NO contact configuration, the E290-16-10/48 provides efficient impulse switching for residential, commercial and industrial installations. Its compact 18 mm DIN rail format enables straightforward integration into modular distribution boards and control panels.
Key Advantages
- Energy-efficient electromechanical latching relay operated by brief control impulses.
- 16 A rated current for switching compatible electrical loads.
- One normally open (1NO) contact for straightforward circuit switching.
- 48 V AC / 24 V DC control coil supports compatible AC and DC control circuits.
- Mechanical latching retains the contact state without continuous coil energisation.
- Front operating lever enables manual operation and provides contact-position indication.
- Compact 18 mm DIN rail format conserves distribution-board space.
Key Features
- ABB E290 electromechanical latching relay series.
- 16 A rated current.
- 1NO main contact configuration.
- 250 V AC rated voltage.
- 48 V AC / 24 V DC coil control voltage.
- 50 Hz rated frequency.
- 0.32 W power loss.
- 4 kV rated impulse withstand voltage.
- Impulse-operated mechanical latching mechanism.
- Front lever for local manual operation and contact-state indication.
- DIN rail mounting with an 18 mm module width.
Energy-Efficient Impulse Switching for Lighting Control
Latching relays such as the ABB E290-16-10/48 change their contact state each time a short electrical impulse is applied to the control coil. The internal mechanical mechanism then holds the contact securely in its new position without continuous coil energisation until another control impulse changes the state again.
This switching principle is particularly useful where lighting needs to be controlled from multiple locations using normally open push-buttons. The E290-16-10/48 combines a 16 A contact rating with 48 V AC / 24 V DC control compatibility, making it a practical solution for residential, commercial, public-building and industrial electrical installations.
Typical Applications
- Multi-point lighting control systems.
- Staircase and corridor lighting.
- Residential electrical installations.
- Commercial and public building lighting.
- Factory and industrial lighting systems.
- DIN rail distribution boards and control panels.
