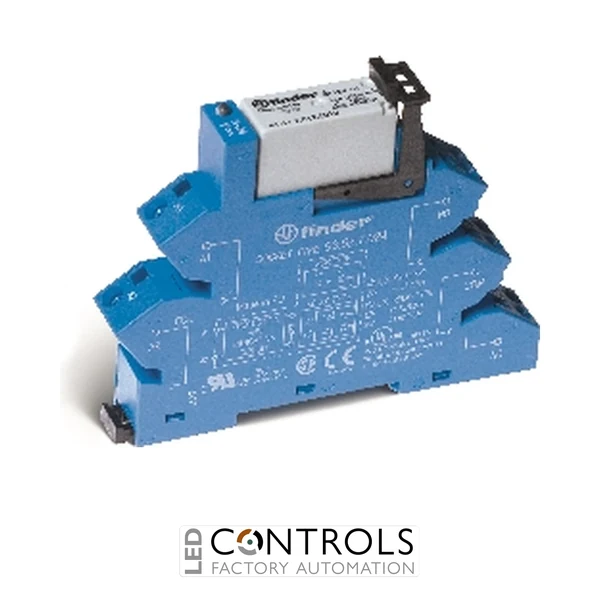

38.11.7.024.0050 Finder Modular Relay 16A 1pole 16A DC 24V
Finder 38.11.7.024.0050 electromechanical relay interface module with a 16 A changeover contact, 24 V DC coil, screwless spring-clamp terminals and LED indication.
Why Choose the Finder 38.11.7.024.0050 Relay Interface Module?
The Finder 38.11.7.024.0050 is a compact and highly reliable electromechanical relay interface module designed to provide electrical isolation and dependable load switching between control equipment and field devices. As part of the Finder 38 Series, it combines a plug-in relay, socket and retaining clip in a complete DIN-rail-mounted assembly.
This interface module provides a single changeover contact rated at 16 A, allowing the common terminal to switch between normally open and normally closed circuits. Its AgNi silver-nickel contact material supports general-purpose load switching, while integrated LED indication makes the control state easy to identify.
With a 24 V DC coil and screwless spring-clamp terminals, the 38.11.7.024.0050 supports fast and secure control-panel wiring. Its compact 14 mm-wide construction helps conserve DIN-rail space in PLC interfaces, machinery controls and industrial automation systems.
Key Advantages
Complete relay interface module with relay, socket and retaining clip.
16 A changeover contact supports versatile load-switching arrangements.
24 V DC coil is compatible with common industrial control systems.
Screwless spring-clamp terminals simplify installation and maintenance.
Integrated LED provides clear coil-status indication.
Relay interface modules allow PLC outputs, sensors and low-voltage controllers to switch separate electrical loads while maintaining galvanic isolation between the control and load circuits. A changeover contact provides both normally open and normally closed switching functions within one compact module.
The Finder 38 Series combines a replaceable electromechanical relay with a DIN-rail socket, status indication and accessible spring-clamp terminals. This modular construction simplifies installation, testing, troubleshooting and relay replacement in industrial control systems.
Typical Applications
PLC output isolation and signal interfacing.
Industrial machinery control panels.
Building-management and automation systems.
Solenoid valves and small actuator controls.
Heating, ventilation and lighting controls.
Process-control and instrumentation systems.
Technical Specifications
Tick the specs you need, then view products that match.
Terminal Type
Spring clamp
Load Voltage
400 V AC
Mounting Type
DIN rail
Switching Current (A)
16 A
Manufacturer
Finder
Series
38 Series
Model
38.11.7.024.0050
Product type
Electromechanical relay interface module
Relay type
Finder 41.61.9.024.0010
Socket type
Finder 93.52.7.024
Number of poles
1
Contact configuration
1 CO / SPDT
Rated contact current
16 A
Rated contact voltage
250 V AC
Maximum switching voltage
400 V AC / 220 V DC
Coil voltage
24 V DC
Must-operate voltage
19.2 V DC
Must-release voltage
2.4 V DC
Contact material
AgNi silver nickel
Terminal type
Screwless spring-clamp terminals
Indication
LED
Operate time
8 ms
Release time
10 ms
Mechanical life
10,000,000 cycles
Operating temperature
−40 to +70 °C
Protection rating
IP20
Mounting type
35 mm DIN rail
Module width
14 mm
Dimensions
93 × 14 × 74.9 mm
Coil / Supply Voltage
24 V DC
Contacts
1 C/O
IP Rating
IP20
Frequently Asked Questions
What is the Finder 38.11.7.024.0050 used for?
This relay interface module isolates a low-voltage control signal and switches an external electrical load in PLC, machinery and building-automation systems.
What contact arrangement does the module provide?
The module provides one changeover contact, also described as a single-pole double-throw or SPDT contact.
What coil voltage does the module require?
The Finder 38.11.7.024.0050 uses a 24 V DC coil.
What current can the relay contact switch?
The electromechanical relay has a rated contact current of 16 A.
How is the relay interface module installed?
The module mounts onto a standard 35 mm DIN rail and uses screwless spring-clamp terminals for field wiring.
Trusted Finder Interface Technology
Finder relay interface modules are widely used by control-panel builders and automation engineers to provide dependable signal isolation, convenient wiring and reliable switching in industrial control systems.
Terminal Type
Spring clamp
Load Voltage
400 V AC
Mounting Type
DIN rail
Switching Current (A)
16 A
Manufacturer
Finder
Series
38 Series
Model
38.11.7.024.0050
Product type
Electromechanical relay interface module
Relay type
Finder 41.61.9.024.0010
Socket type
Finder 93.52.7.024
Number of poles
1
Contact configuration
1 CO / SPDT
Rated contact current
16 A
Rated contact voltage
250 V AC
Maximum switching voltage
400 V AC / 220 V DC
Coil voltage
24 V DC
Must-operate voltage
19.2 V DC
Must-release voltage
2.4 V DC
Contact material
AgNi silver nickel
Terminal type
Screwless spring-clamp terminals
Indication
LED
Operate time
8 ms
Release time
10 ms
Mechanical life
10,000,000 cycles
Operating temperature
−40 to +70 °C
Protection rating
IP20
Mounting type
35 mm DIN rail
Module width
14 mm
Dimensions
93 × 14 × 74.9 mm
Coil / Supply Voltage
24 V DC
Contacts
1 C/O
IP Rating
IP20
