Why Choose the Finder 38.52.0.240.0060 Relay Interface Module?

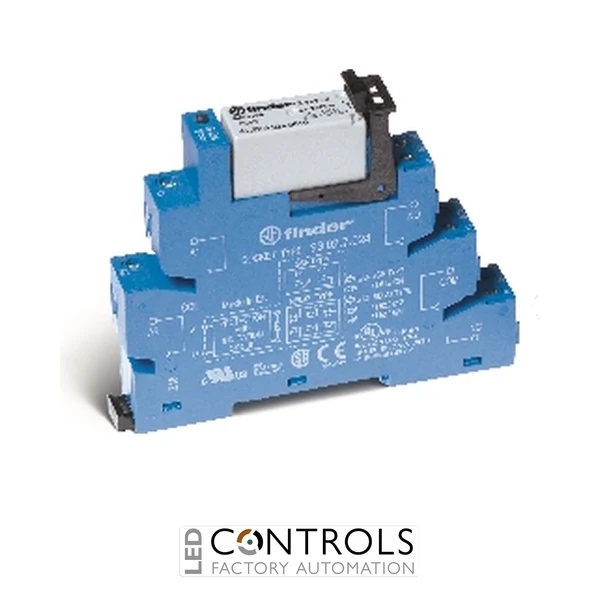

The Finder 38.52.0.240.0060 is a compact and dependable DIN-rail relay interface module designed to provide reliable switching and electrical isolation in industrial automation, control panels and building-management systems. As part of the versatile Finder Series 38 interface module range, it integrates an electromechanical relay and screw-terminal socket within a slim modular assembly.
This interface module features two changeover contacts, enabling two separate circuits to be switched from one control input. Its AgNi contacts support dependable general-purpose switching, while the integrated status indication and coil suppression circuit simplify commissioning and help protect connected control equipment.
With a 230–240 V AC/DC input, a rated contact current of 8 A and a compact 14 mm width, the 38.52.0.240.0060 is well suited to PLC interfaces, industrial machinery, control cabinets and building-automation installations.
Key Advantages
- Complete relay interface module for DIN-rail control panels.
- Two changeover contacts provide flexible multi-circuit switching.
- 8 A contact rating for general industrial loads.
- 230–240 V AC/DC input supports both alternating- and direct-current control supplies.
- Screw terminals provide secure and accessible field wiring.
- Integrated status indication and coil suppression support straightforward installation.
Key Features
- Finder Series 38 relay interface module.
- 2 CO contact configuration.
- 8 A rated contact current.
- 230–240 V AC/DC nominal input voltage.
- AgNi contact material.
- Integrated LED status indicator.
- Built-in coil suppression circuit.
- 14 mm-wide housing for 35 mm DIN-rail mounting.
Reliable Isolation and Switching for Control Systems
Relay interface modules such as the Finder 38.52 provide galvanic separation between control electronics and switched field circuits. Energising the input coil changes the state of both changeover contacts, allowing a single control signal to operate two independent loads or signalling circuits.
The Series 38 modular format combines the relay, socket, status indication and protection components in one DIN-rail assembly. This reduces panel assembly time, simplifies maintenance and provides an organised interface between controllers and connected equipment.
Typical Applications
- Industrial control panels and automation systems.
- PLC output interfaces and signal isolation.
- Machinery and production equipment.
- Building-management and lighting controls.
- Heating, ventilation and air-conditioning systems.
- Pumps, valves, contactors and signalling circuits.
