Why Choose the Finder 62.23.9.012.0200S Industrial Power Relay?

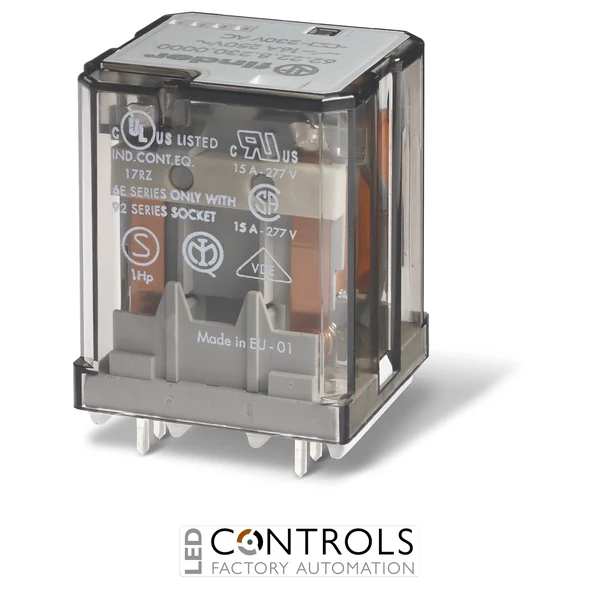

The Finder 62.23.9.012.0200S is a 16 A industrial electromagnetic power relay from the Finder Series 62 range, designed for printed circuit board installation and multi-circuit electrical switching. Featuring a 12 V DC operating coil and three changeover contacts (3CO / 3PDT), this model provides flexible switching for industrial control electronics, automation equipment and OEM electrical assemblies.
The relay incorporates silver cadmium oxide (AgCdO) contacts and a PCB mounting arrangement, enabling integration into electrical equipment requiring three independently switched circuits. Its changeover contact configuration provides normally open and normally closed switching paths for each pole, supporting electrical interlocking, equipment control and auxiliary switching functions.
The 62.23.9.012.0200S is identified as a special version for solar applications. Its specific .0200S designation should be retained when selecting a replacement, as the contact material and construction characteristics may differ from other Finder Series 62 variants.
Key Advantages
- 16 A rated contact current for compatible industrial switching applications.
- 12 V DC operating coil suitable for low-voltage DC control systems.
- Three changeover contacts (3CO / 3PDT) provide flexible multi-circuit switching.
- Silver cadmium oxide (AgCdO) contacts for electrical power switching duties.
- PCB mounting construction supports direct integration into electronic assemblies.
- Special .0200S solar application variant.
- Three independent contact circuits operated by one electromagnetic coil.
- Monostable operation returns the contacts to their normal positions when de-energised.
- Part of the established Finder Series 62 industrial power relay range.
Key Features
- Finder Series 62 industrial electromagnetic power relay.
- 12 V DC nominal coil voltage.
- Three changeover contacts (3CO / 3PDT).
- 16 A rated contact current.
- 250 V AC nominal contact voltage for the Series 62 contact system.
- 400 V AC maximum switching voltage for the Series 62 contact system.
- Silver cadmium oxide (AgCdO) contact material.
- Printed circuit board mounting with solder connections.
- DC-operated electromagnetic switching mechanism.
- Monostable, non-latching relay operation.
- RT I environmental protection category.
- Special construction variant identified for solar applications.
Reliable Multi-Circuit Switching for Industrial and Solar Control Equipment
The Finder 62.23.9.012.0200S operates using a 12 V DC electromagnetic coil that controls three independent changeover contacts. When the coil is energised, each contact transfers from its normally closed connection to its normally open connection. When the supply is removed, the monostable mechanism returns the contacts to their normal positions.
The relay's 16 A contact rating and three-pole changeover arrangement make it suitable for appropriately rated auxiliary power and control circuits. Its AgCdO contact construction distinguishes this model from other Series 62 variants using alternative contact materials.
The PCB mounting format allows direct integration into electronic control assemblies, making the relay useful for equipment manufacturers and electrical system designers. Although this model is identified as a special solar application variant, its suitability for any particular photovoltaic or DC switching duty must be established from the applicable manufacturer load ratings. The 12 V DC coil rating does not determine the maximum DC voltage that the contacts can switch.
Typical Applications
- Solar equipment auxiliary control circuits.
- Industrial printed circuit board assemblies.
- OEM electrical and electronic equipment.
- Industrial automation control systems.
- Auxiliary power switching circuits.
- Electrical interlocking and control sequencing.
- Machinery control electronics.
- Equipment signalling and status indication.
- Replacement of compatible Finder 62.23.9.012.0200S relays.
