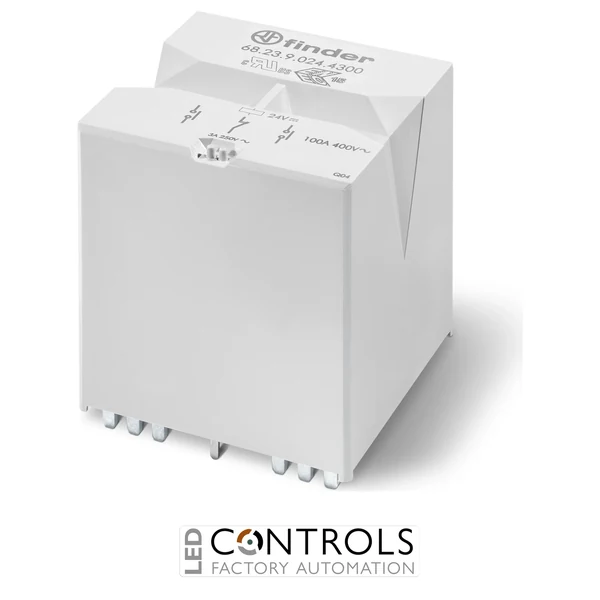

Why Choose the Finder 68.23.9.024.4300 High Power PCB Relay?
The Finder 68.23.9.024.4300 is a powerful and reliable high-current PCB relay designed for switching demanding electrical loads in industrial automation, power electronics and energy management systems. As part of the advanced Finder Series 68 high power relay family, it combines compact PCB integration with exceptional switching performance for applications requiring dependable high-current control.
This relay features a 24 V DC coil and a versatile 2 normally open + 1 normally closed (DPST-NO + SPST-NC) contact configuration, allowing both high-power switching and auxiliary circuit control within a single component. It supports up to 100 A switching current and uses durable AgSnO₂ contact material for reliable operation under demanding conditions.
With PCB mounting, reinforced insulation between coil and contacts, a contact gap of at least 3.6 mm and suitability for high-temperature environments, the Finder 68.23.9.024.4300 is ideal for industrial power control, EV charging equipment, inverters and other high-load electrical systems.
Key Advantages
- High-performance power PCB relay designed for heavy electrical loads.
- 100 A switching capability for demanding power applications.
- 24 V DC coil operation for industrial control systems.
- 2 NO + 1 NC contact arrangement enables flexible circuit management.
- AgSnO₂ contacts provide excellent durability and switching reliability.
- Compact PCB design reduces space requirements in control assemblies.
Key Features
- Finder Series 68 high power relay.
- Model: 68.23.9.024.4300.
- 24 V DC coil voltage.
- 2 normally open + 1 normally closed contacts.
- 100 A rated switching current.
- 690 V AC maximum switching voltage.
- AgSnO₂ contact material.
- PCB solder connection.
- Reinforced insulation between coil and contacts.
- RT II flux-proof relay construction.
- Suitable for high-power industrial applications.
Reliable High Current Switching for Industrial Systems
High power relays such as the Finder 68.23.9.024.4300 provide safe electrical switching between low-power control circuits and high-current electrical loads. They are commonly used where compact design, electrical isolation and reliable operation are essential.
The Finder Series 68 range has been developed for demanding applications requiring high switching capacity and long operational life. Its robust contact system and reinforced insulation make it suitable for modern industrial and energy applications.
Typical Applications
- Electric vehicle charging systems.
- Battery storage and energy management equipment.
- Industrial automation control panels.
- Power converters and inverters.
- Renewable energy systems.
- Industrial machinery power switching.
- High-current electrical control applications.
