Why Choose the Finder 78.12.1.230.2400 Power Supply?

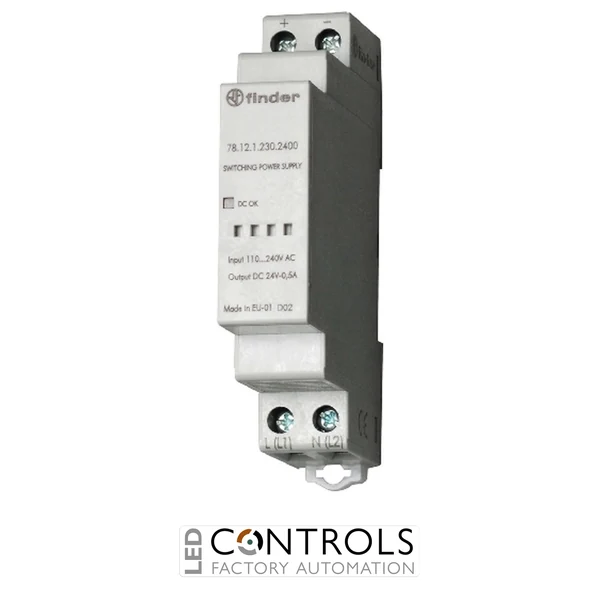

The Finder 78.12.1.230.2400 is a compact and efficient DIN rail switch mode power supply designed to provide a stable 24 V DC supply for industrial automation, control panels and electronic equipment. As part of the Finder 78 Series, it combines dependable AC/DC power conversion with a slim modular format suitable for space-conscious electrical installations.
This power supply accepts a wide input range of 100–265 V AC or 140–370 V DC and converts it into a regulated 24 V DC output. Integrated short-circuit, thermal and overvoltage protection helps protect the power supply and connected equipment, supporting reliable continuous operation in industrial control applications.
With a rated output power of 12 W and a 24 V DC output at 0.5 A, the Finder 78.12.1.230.2400 is ideal for supplying relays, sensors, interface modules and other low-power automation devices. Its 17.5 mm-wide housing mounts directly onto a standard 35 mm DIN rail for straightforward control cabinet integration.
Key Advantages
- Compact 24 V DC switch mode power supply for industrial applications.
- 12 W output power suitable for low-power automation and control equipment.
- 24 V DC, 0.5 A regulated output for standard industrial control circuits.
- Wide 100–265 V AC and 140–370 V DC input ranges.
- Integrated short-circuit, thermal and overvoltage protection.
- Slim 17.5 mm DIN rail housing minimises control cabinet space requirements.
Key Features
- Finder 78 Series switch mode power supply.
- 12 W rated output power.
- 24 V DC nominal output voltage.
- 0.5 A rated output current.
- 100–265 V AC, 50 / 60 Hz input range.
- 140–370 V DC input range.
- Short-circuit protection with automatic recovery.
- Internal thermal protection with output shutdown.
- Varistor overvoltage protection.
- 35 mm DIN rail mounting according to EN 60715.
Reliable 24 V DC Power for Industrial Automation
24 V DC is widely used throughout industrial automation for powering relays, sensors, interface modules and electronic control equipment. The Finder 78.12.1.230.2400 converts mains AC or a suitable high-voltage DC input into a regulated 24 V DC supply, providing a compact power source for equipment installed within automation panels and electrical cabinets.
The slim DIN rail format makes this power supply particularly suitable for control panels where installation space is limited. Its wide input range and integrated electrical protection provide additional flexibility and help maintain dependable operation when powering low-current industrial control devices.
Typical Applications
- Industrial automation control panels.
- 24 V DC relay and interface circuits.
- Sensors and electronic control equipment.
- Machine building and manufacturing systems.
- PLC and industrial control installations.
- DIN rail-mounted low-voltage power distribution.
