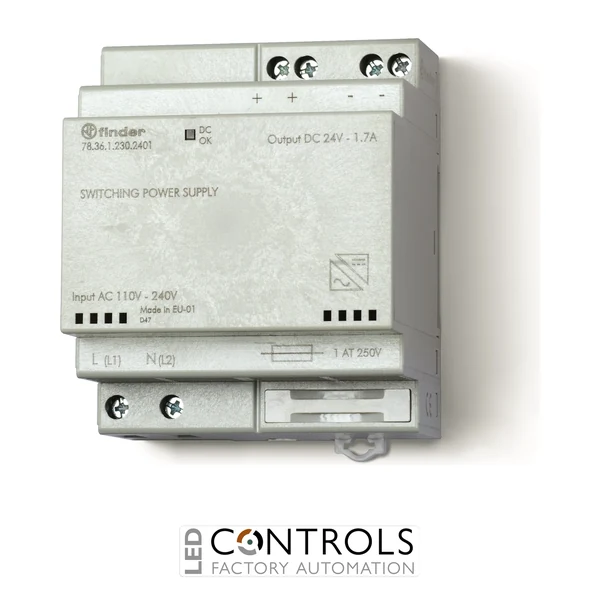

Why Choose the Finder 78.36.1.230.2402 Switch Mode Power Supply?
The Finder 78.36.1.230.2402 is a compact, high-efficiency 36 W switch mode power supply designed to provide a regulated 24 V DC output for industrial automation, electrical control panels and electronic equipment. Part of the Finder 78 Series, this modular AC/DC power supply combines reliable voltage conversion, adjustable output voltage and integrated electrical protection in a DIN-rail-mounted housing.
Designed for a nominal 110–240 V AC input or 220 V DC supply, the Finder 78.36.1.230.2402 delivers a nominal 24 V DC, 1.5 A output with a rated output power of 36 W. Its output voltage can be adjusted between 24 and 28 V DC, providing flexibility for compatible control circuits, industrial sensors and automation devices.
With efficiency of up to 90%, low standby consumption, integrated input protection and automatic short-circuit recovery, this power supply is designed for dependable operation in industrial electrical installations. Its 70 mm-wide modular housing, screw terminals and standard 35 mm DIN-rail mounting make it suitable for both new control-panel installations and equipment upgrades.
Key Advantages
- 36 W rated output power for industrial automation and electronic control applications.
- 24 V DC nominal output for compatible industrial control equipment.
- 1.5 A nominal output current for appropriately rated connected loads.
- Adjustable 24–28 V DC output using an integrated potentiometer.
- 110–240 V AC nominal input for standard industrial and commercial electrical supplies.
- 220 V DC nominal input capability for compatible DC distribution systems.
- High efficiency of up to 90% to help reduce power conversion losses.
- Low standby power consumption below 0.4 W for energy-efficient operation.
- Integrated input fuse for supply-side protection.
- Automatic short-circuit recovery through hiccup-mode protection.
- Internal thermal protection to help protect against overheating.
- Varistor overvoltage protection against supply-side voltage transients.
- Compact 70 mm modular width for efficient use of electrical enclosure space.
- 35 mm DIN-rail mounting for straightforward installation.
- Suitable for selected redundant power supply arrangements using external OR-ing diodes.
Key Features
- Finder 78 Series modular switch mode power supply.
- Model: 78.36.1.230.2402.
- Power supply type: AC/DC switch mode power supply.
- Number of outputs: 1.
- Rated output power: 36 W.
- Nominal output voltage: 24 V DC.
- Nominal output current: 1.5 A.
- Adjustable output voltage: 24–28 V DC.
- Nominal AC input voltage: 110–240 V AC.
- AC operating input range: 100–265 V AC.
- Nominal DC input voltage: 220 V DC.
- DC operating input range: 140–370 V DC.
- Efficiency: Up to 90%.
- Standby consumption: Less than 0.4 W.
- Conversion topology: Flyback with quasi-resonant zero-voltage switching.
- Input protection: Integrated fuse.
- Short-circuit protection: Hiccup mode with automatic recovery.
- Thermal protection: Internal overheating protection.
- Overvoltage protection: Varistor.
- Output adjustment: Integrated potentiometer.
- Mounting: 35 mm DIN rail.
- Connections: Screw terminals.
- Housing dimensions: 70 × 88.8 × 60.8 mm.
- Protection rating: IP20.
Technical Specifications
- Manufacturer: Finder
- Series: 78 Series
- Manufacturer part number: 78.36.1.230.2402
- Product type: Modular switch mode power supply
- Conversion type: AC/DC to regulated DC
- Number of DC outputs: 1
- Rated output power: 36 W
- Nominal output voltage: 24 V DC
- Nominal output current: 1.5 A
- Output voltage adjustment: 24–28 V DC
- Nominal AC supply voltage: 110–240 V AC
- AC operating voltage range: 100–265 V AC
- Nominal DC supply voltage: 220 V DC
- DC operating voltage range: 140–370 V DC
- Efficiency: Up to 90%
- No-load power consumption: Less than 0.4 W
- Conversion topology: Flyback
- Switching technology: Quasi-resonant zero-voltage switching (ZVS)
- Input fuse: Integrated
- Short-circuit protection: Hiccup mode with automatic recovery
- Thermal protection: Internal
- Overvoltage protection: Varistor
- Output voltage regulator: Integrated potentiometer
- Mounting method: 35 mm DIN rail (EN 60715)
- Terminal type: Screw terminals
- Housing width: 70 mm
- Housing height: 88.8 mm
- Housing depth: 60.8 mm
- Modular width: 4 modules
- Operating temperature: −20 to +70 °C, with applicable derating
- Input-to-output isolation rating: 3 kV
- Protection rating: IP20
- Approvals and markings: CE, UKCA, EAC
- Relevant standards: UL 61010 and EN 61204-3
- RoHS compliance: Compliant
- Product category: DIN-Rail Switch Mode Power Supplies
Efficient and Protected 24 V DC Power for Industrial Automation
The Finder 78.36.1.230.2402 converts a compatible AC or DC input supply into a regulated low-voltage DC output using high-frequency switch mode technology. Its flyback converter incorporates quasi-resonant zero-voltage switching to support efficient power conversion. The integrated potentiometer allows the output voltage to be adjusted from 24 to 28 V DC, enabling the supply to be configured for compatible equipment within its rated operating limits.
For protection against abnormal operating conditions, the power supply incorporates an integrated input fuse, internal thermal protection, varistor overvoltage protection and hiccup-mode short-circuit protection. During a short circuit, the hiccup protection system periodically attempts automatic recovery until normal operation can resume.
The power supply also supports suitable redundant arrangements using external OR-ing diodes. Finder identifies the 78.36 range as suitable for selected lead-acid battery charging applications, including compatible standard and gel batteries, subject to the battery manufacturer's charging requirements and the power supply's electrical characteristics.
Typical Applications
- Industrial automation and PLC control panels.
- 24 V DC control circuits and auxiliary power systems.
- Industrial sensors and monitoring devices.
- Control relays, interface modules and electronic controllers.
- Building management and automation systems.
- Industrial machinery and OEM electrical assemblies.
- Process control and instrumentation equipment.
- Low-voltage signalling and indication circuits.
- Compatible 24 V DC access control and security equipment.
- Selected lead-acid battery charging and backup power arrangements.
- Redundant DC power supply systems using appropriate external components.
- DIN-rail-mounted electrical distribution and control enclosures.
