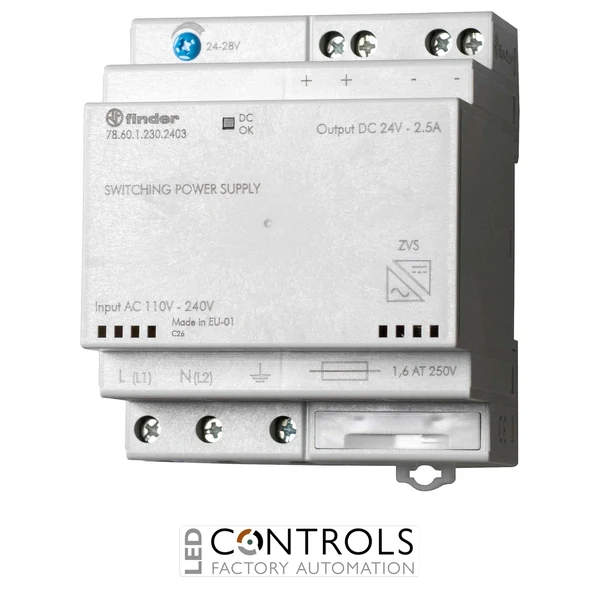

Finder 78.60.1.230.2402 – 24 V DC 60 W DIN Rail Switch Mode Power Supply
The Finder 78.60.1.230.2402 is a compact, high-efficiency 24 V DC DIN rail switch mode power supply designed to provide reliable, regulated electrical power for industrial automation, building control systems and electrical control panels. Part of the Finder 78 Series, this industrial AC/DC power supply converts a suitable mains or DC input into a stable low-voltage output for compatible electrical and electronic equipment.
Delivering a 60 W rated output power, 24 V DC nominal output voltage and 2.5 A rated output current, the Finder 78.60.1.230.2402 provides a practical power source for PLCs, interface relays, sensors, industrial controllers and other compatible 24 V DC devices.
The power supply accepts a nominal 110–240 V AC input or 220 V DC input, with an adjustable output voltage range of 24–28 V DC. Its efficient switch mode design, integrated protective functions and compact modular construction make it suitable for continuous use in properly designed industrial installations.
Featuring a 70 mm-wide housing, 35 mm DIN rail mounting and screw terminal connections, the Finder 78.60.1.230.2402 is an effective solution for electrical engineers, control panel builders, machine manufacturers and maintenance professionals seeking a dependable 24 V DC power supply.
Key Advantages
- 60 W rated output power provides reliable electrical power for compatible industrial control equipment.
- 24 V DC nominal output supports common industrial automation and electronic control systems.
- 2.5 A rated output current offers practical capacity for multiple low-voltage devices.
- Adjustable 24–28 V DC output provides flexibility for suitable applications.
- 110–240 V AC nominal input supports a wide range of standard mains supplies.
- 220 V DC nominal input capability provides additional flexibility in compatible electrical systems.
- Approximately 91% conversion efficiency helps minimise power losses and heat generation.
- Integrated short-circuit protection helps protect the supply during output faults.
- Overload protection supports dependable operation under abnormal load conditions.
- Thermal protection helps prevent damage from excessive internal temperatures.
- Overvoltage protection provides additional protection against suitable supply disturbances.
- Automatic redundancy capability allows suitable power supply arrangements using external OR-ing diodes.
- 35 mm DIN rail mounting enables straightforward installation in electrical enclosures.
- Compact 70 mm width helps conserve valuable control panel space.
- IP20 protection rating for installation within a suitable electrical cabinet.
Key Features
- Finder 78 Series Type 78.60 switch mode power supply.
- Single regulated DC output.
- 60 W rated output power.
- 24 V DC nominal output voltage.
- 2.5 A rated output current.
- 24–28 V DC adjustable output voltage.
- 110–240 V AC nominal input voltage.
- 220 V DC nominal input voltage.
- 100–265 V AC operating input range under specified conditions.
- 140–370 V DC operating input range.
- 50/60 Hz AC supply compatibility.
- Approximately 91% efficiency.
- 5 A maximum short-duration output current for 5 ms under specified conditions.
- Integrated input fuse.
- Output voltage adjustment facility.
- Short-circuit protection with automatic recovery.
- Overload and thermal protection.
- Input overvoltage protection using a varistor.
- Support for parallel redundancy arrangements with suitable external OR-ing diodes.
- 35 mm DIN rail mounting in accordance with EN 60715.
- 70 mm-wide modular housing.
- Screw terminal connections.
- IP20 protection rating.
- −20 to +70 °C operating temperature range, subject to thermal derating.
- RoHS-compliant construction.
Technical Specifications
- Manufacturer: Finder
- Series: 78 Series
- Type: 78.60
- Model: 78.60.1.230.2402
- Product category: DIN rail switch mode power supply
- Power conversion: AC/DC
- Number of outputs: 1
- Nominal output voltage: 24 V DC
- Adjustable output voltage: 24–28 V DC
- Rated output current: 2.5 A
- Short-duration maximum output current: 5 A for 5 ms
- Rated output power: 60 W
- Nominal AC input voltage: 110–240 V AC
- AC operating input voltage: 100–265 V AC under specified conditions
- Nominal DC input voltage: 220 V DC
- DC operating input voltage: 140–370 V DC
- AC input frequency: 50/60 Hz
- Conversion efficiency: Approximately 91%
- Output voltage regulation: Adjustable, stabilised DC output
- Short-circuit protection: Integrated, automatic recovery
- Overload protection: Integrated
- Thermal protection: Integrated, with shutdown protection
- Overvoltage protection: Integrated input varistor
- Input fuse: Integrated
- Parallel redundancy: Supported with suitable external OR-ing diodes
- Mounting method: DIN rail
- DIN rail size: 35 mm
- DIN rail standard: EN 60715
- Electrical connections: Screw terminals
- Protection rating: IP20
- Operating temperature: −20 to +70 °C, subject to derating
- Housing width: 70 mm
- Housing height: 88.8 mm
- Housing depth: Approximately 56.5 mm
- Modular width: 4 modules
- Country of origin: Italy
- Compliance: RoHS compliant
- EAN: 8012823444895
How the Finder 78.60 Switch Mode Power Supply Works
The Finder 78.60.1.230.2402 converts a suitable AC or DC input voltage into a regulated 24 V DC output using high-frequency electronic switching technology.
Switch mode power supplies use electronic components to control energy transfer efficiently, helping reduce the size, weight and heat generation associated with power conversion. This makes them particularly suitable for industrial control panels where space and electrical efficiency are important.
The Finder 78.60.1.230.2402 is designed to maintain a stable output voltage under normal operating conditions, supplying compatible 24 V DC equipment with dependable power.
Its 2.5 A rated output current provides up to 60 W at the nominal 24 V DC output. The connected equipment must remain within the supply's permitted electrical and thermal operating limits.
The power supply also provides a short-duration peak current capability of 5 A for 5 ms, which can help accommodate certain brief load transients. This is not a continuous-current rating.
Adjustable 24–28 V DC Output Voltage
A useful feature of the Finder 78.60.1.230.2402 is its adjustable output voltage.
The supply provides a nominal output of 24 V DC, which can be adjusted up to 28 V DC where required by the connected equipment and permitted by the application.
This flexibility can help compensate for acceptable voltage drops along supply cables or accommodate devices with specific operating voltage requirements.
The manufacturer's installation instructions recommend making output voltage adjustments slowly, preferably with a load connected.
The voltage setting must remain within the connected equipment's permitted input range. Increasing the output voltage does not increase the power supply's 60 W rated output capacity.
Integrated Protection for Industrial Reliability
The Finder 78.60.1.230.2402 incorporates several protective functions intended to support reliable operation and help protect the power supply from abnormal electrical conditions.
- Short-circuit protection: Uses an automatic recovery operating mode to respond to suitable output short circuits.
- Overload protection: Helps protect the power supply when the connected load exceeds its permitted operating conditions.
- Thermal protection: Provides internal protection against excessive operating temperatures, with a power reset required after certain thermal shutdown conditions.
- Input overvoltage protection: Uses a varistor to help protect against suitable voltage transients.
- Integrated input fuse: Provides an additional protective element within the power supply.
These integrated features do not replace appropriate upstream circuit protection, correctly sized wiring or safe electrical installation practices.
Support for Redundant Power Supply Systems
The Finder 78.60.1.230.2402 can be used in suitable parallel redundancy arrangements, allowing engineers to design systems where an alternative power supply can continue supporting a load if one supply becomes unavailable.
For automatic redundancy, the manufacturer's wiring guidance specifies the use of suitable external OR-ing diodes. These prevent unwanted reverse current flow between the connected power supplies.
Redundancy arrangements must be designed according to the manufacturer's instructions, with particular attention to output voltage adjustment, load current, wiring and protection.
The power supply must not simply be connected in parallel with another unit to increase output current unless the complete arrangement is expressly supported by the manufacturer's documentation.
Compact DIN Rail Installation
The Finder 78.60.1.230.2402 is designed for installation on a 35 mm DIN rail in accordance with EN 60715, making it suitable for industrial control cabinets, machinery enclosures and electrical distribution panels.
Its compact 70 mm width occupies approximately four standard modular spaces, helping electrical installers make efficient use of available panel space.
Screw terminal connections provide convenient wiring for the input supply and regulated DC output.
The unit should be installed with suitable ventilation and the clearances specified by Finder. Output current may require derating at elevated ambient temperatures, so thermal conditions must be considered during panel design.
Typical Applications
- Industrial automation control panels.
- 24 V DC PLC and electronic controller supplies.
- Industrial sensors and monitoring equipment.
- Interface relays and control modules.
- Building management and automation systems.
- Electrical distribution and control cabinets.
- Industrial instrumentation.
- Machine building and OEM equipment.
- Commercial electrical control installations.
- Compatible 24 V DC signalling equipment.
- Low-voltage electronic control circuits.
- Automated production and packaging machinery.
- Industrial process monitoring systems.
- Redundant DC power supply installations using suitable external components.
- General-purpose regulated 24 V DC power applications.
