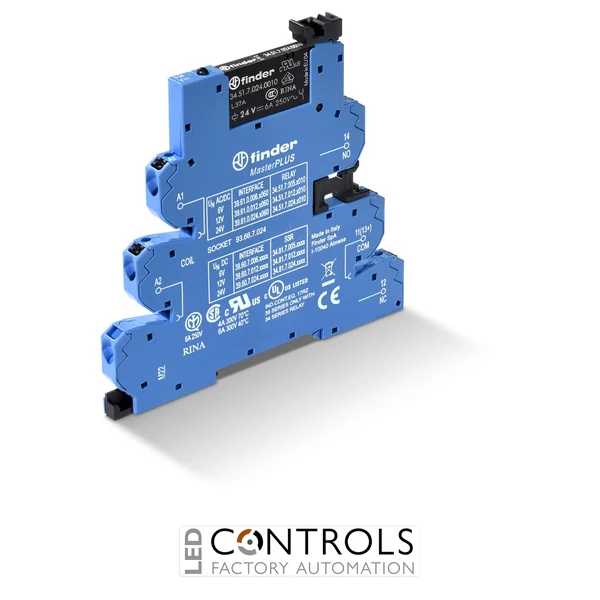

Why Choose the Finder 39.61.0.240.0060 Interface Relay Module?
The Finder 39.61.0.240.0060 is a compact 6 A electromechanical interface relay module designed for industrial automation, PLC interfacing and electrical control panel applications. Part of the Finder Series 39 MasterPLUS range, this slimline DIN rail-mounted relay combines a wide-range AC/DC control input with a single changeover contact, providing a practical interface between electronic controllers and electrical loads.
Featuring a 24–240 V AC/DC control input and one changeover contact (SPDT / 1 CO), the Finder 39.61.0.240.0060 supports flexible integration into control systems using different supply voltages. Its 6 A rated contact current and silver nickel (AgNi) contact material make it suitable for switching compatible resistive and control loads.
The module features a space-saving 6.2 mm wide housing, push-in terminals, LED status indication and a replaceable electromechanical relay. Designed for mounting on a standard 35 mm DIN rail, it is particularly useful where control panel space is limited and straightforward wiring, maintenance and fault diagnosis are important.
Key Advantages
- 6 A electromechanical interface relay for industrial control and automation.
- 24–240 V AC/DC control input provides flexibility across different control supply voltages.
- Single changeover contact (SPDT / 1 CO) supports normally open and normally closed switching functions.
- 6.2 mm slimline housing conserves valuable DIN rail space.
- Push-in terminal connections simplify wiring and installation.
- Silver nickel (AgNi) contacts provide dependable electromechanical switching.
- Integrated LED indication assists commissioning and troubleshooting.
- Replaceable relay design supports convenient maintenance.
- MasterPLUS construction supports output circuit protection using a compatible fuse accessory.
- Suitable for PLC outputs, industrial control circuits and automation interfaces.
- Standard DIN rail mounting enables organised electrical panel installation.
- IP20 protection rating for installation within suitable electrical enclosures.
Key Features
- Finder Series 39 MasterPLUS interface relay module.
- Type 39.61 with push-in terminal connections.
- 24–240 V AC/DC nominal control voltage range.
- 20.6–264 V AC/DC operating voltage range.
- 6 A rated contact current.
- SPDT / 1 Form C / 1 CO contact configuration.
- 250 V AC rated contact voltage.
- 400 V AC maximum switching voltage.
- 1500 VA rated AC1 switching capacity.
- 300 VA AC15 switching capacity at 230 V AC.
- Silver nickel (AgNi) contact material.
- Monostable, non-latching electromagnetic relay operation.
- 5 ms operate time and 6 ms release time.
- 6.2 mm module width for high-density panel layouts.
- 35 mm DIN rail mounting in accordance with EN 60715.
- Integrated LED indication for control input status.
- IP20 protection category.
- -40 to +70 °C operating temperature range.
Reliable Electrical Load Control for Industrial Automation
The Finder 39.61.0.240.0060 provides an electromechanical switching interface between a control signal and an electrical load. When a suitable voltage within its 24–240 V AC/DC nominal input range is applied, the relay coil energises and transfers its changeover contact from the normally closed position to the normally open position. When the input is removed, the contact returns to its original state.
Its single changeover contact allows the module to perform a range of control functions, including switching a load on or off, transferring a signal between circuits and interfacing PLC outputs with external electrical equipment. The electromechanical design provides galvanic separation between the control input and switched contact circuit, subject to the specified insulation ratings.
The Finder Series 39 MasterPLUS is designed for compact automation cabinets where installation efficiency and serviceability are important. Push-in terminals help reduce wiring time, while the integrated LED assists with identifying the presence of a control signal. The replaceable relay arrangement and compatibility with the MasterPLUS output fuse accessory system provide additional flexibility for maintenance and circuit protection.
Typical Applications
- PLC output interfacing and industrial automation systems.
- Industrial electrical control panels and switchgear cabinets.
- Machinery control and automation circuits.
- Process control and monitoring systems.
- Electrical signalling and status indication circuits.
- Building management and automation systems.
- Control of compatible contactors and auxiliary devices.
- Packaging, conveying and production line machinery.
- Control signal isolation and interfacing.
- Industrial equipment requiring changeover contact switching.
- OEM machinery and modular electrical control assemblies.
- Space-constrained DIN rail installations.
