Why Choose the Finder 94.84.2SPA Relay Socket?

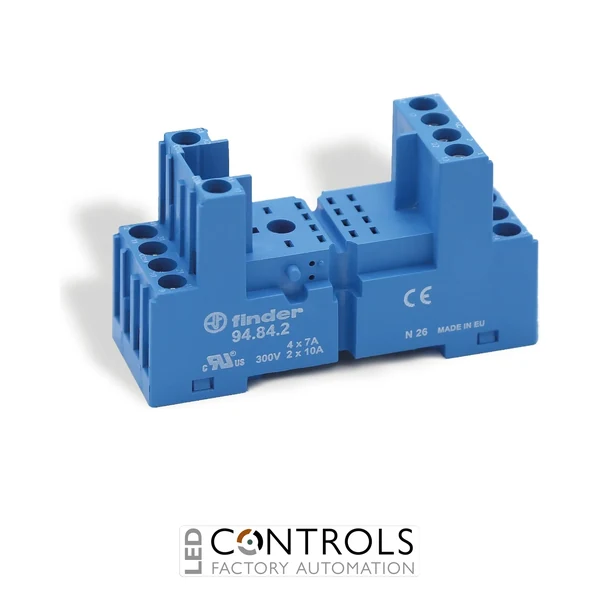

The Finder 94.84.2SPA is a 14-pin, 4-pole relay socket designed for compatible Finder 55 Series industrial relays and 85 Series timer relays. Part of the Finder 94 Series of relay sockets and accessories, it provides a reliable plug-in connection interface for electrical control panels, industrial automation equipment and auxiliary switching circuits.
Featuring box-clamp screw terminals, the Finder 94.84.2SPA is suitable for mounting on a 35 mm DIN rail or directly onto a panel. Its blue insulating housing and removable relay interface support organised wiring and straightforward maintenance.
The SPA configuration includes the Finder 094.91.3 plastic retaining and release clip, helping secure the installed relay while allowing convenient removal when replacement is required. The socket is designed for compatible Finder 55.34 and 85.04 four-pole relays, with a four-changeover contact connection arrangement.
With manufacturer-specified socket ratings of 10 A and 250 V, IP20 protection and support for optional indication and suppression modules, the Finder 94.84.2SPA offers a practical solution for industrial control installations requiring dependable relay connections.
Key Advantages
- Four-pole relay compatibility: Designed for compatible Finder 55.34 and 85.04 relay types.
- 14-pin connection interface: Provides connections for four changeover contact circuits and the relay coil.
- Box-clamp screw terminals: Enable secure conductor termination in industrial control panels.
- DIN rail or panel mounting: Offers installation flexibility for new equipment and replacement applications.
- Plastic retaining and release clip included: The SPA configuration incorporates the Finder 094.91.3 accessory.
- 10 A socket rating: Supports compatible relay circuits within the electrical ratings of the complete assembly.
- 250 V rated voltage: Suitable for appropriately rated industrial control applications.
- Removable relay arrangement: Allows a compatible plug-in relay to be replaced without disconnecting the fixed socket wiring.
- Optional indication and suppression: Supports compatible Finder 99.80 Series modules for selected control applications.
- Jumper link compatibility: Supports suitable Finder 094.06 accessories for common-potential wiring.
- IP20 protection: Suitable for installation within appropriately protected electrical enclosures.
Key Features
- Finder 94 Series relay socket.
- Model: 94.84.2SPA.
- Four-pole relay socket configuration.
- 14-pin relay connection interface.
- Compatible with specified Finder 55.34 industrial relays.
- Compatible with specified Finder 85.04 timer relays.
- Box-clamp screw terminals for conductor connections.
- 35 mm DIN rail or panel mounting.
- Finder 094.91.3 plastic retaining and release clip included.
- 10 A / 250 V manufacturer-specified socket ratings.
- 2 kV AC dielectric strength.
- IP20 protection category.
- -40 to +70 °C ambient temperature range.
- 0.5 Nm terminal screw tightening torque.
- 7 mm conductor stripping length.
- Compatible with selected Finder 99.80 indication and EMC suppression modules.
- Supports compatible Finder 094.06 jumper links.
- Blue insulating housing.
Technical Specifications
- Manufacturer: Finder
- Series: 94 Series
- Product code: 94.84.2SPA
- Product type: Industrial relay socket
- Socket configuration: Four-pole
- Relay connection positions: 14
- Contact arrangement supported: 4 changeover contacts (4 CO / 4PDT)
- Compatible relay families: Finder 55 and 85 Series
- Compatible four-pole relay types: Finder 55.34 and 85.04
- Rated socket current: 10 A
- Rated socket voltage: 250 V
- Terminal technology: Box-clamp screw terminals
- Mounting method: DIN rail or panel mounting
- DIN rail size: 35 mm
- DIN rail standard: EN 60715
- Housing width: 27 mm
- Housing height: 76.4 mm
- Dielectric strength: 2 kV AC
- Protection category: IP20
- Ambient temperature range: -40 to +70 °C
- Terminal tightening torque: 0.5 Nm
- Conductor stripping length: 7 mm
- Maximum solid conductor size: 1 × 6 mm² or 2 × 2.5 mm²
- Maximum stranded conductor size: 1 × 4 mm² or 2 × 2.5 mm²
- Retaining clip: Finder 094.91.3 plastic retaining and release clip
- Optional indication and suppression modules: Finder 99.80 Series
- Compatible jumper links: Finder 094.06 and 094.06.0
- Identification tag: Finder 094.80.3
- Marker tags for retaining clip: Finder 060.48
- Housing colour: Blue
- EAN: 8012823313719
- Country of origin: Italy
- Product category: Relay Sockets and Accessories
Reliable Four-Pole Relay Connections for Industrial Control Systems
The Finder 94.84.2SPA provides the electrical connection interface between a compatible 14-pin relay and the external wiring of an industrial control system. The socket accommodates the relay coil connections and the terminals associated with four changeover contacts, allowing multiple auxiliary circuits to be controlled through a single compatible relay.
When a suitable Finder 55.34 relay is installed, the relay coil operates the internal changeover contacts according to the selected relay's electrical characteristics. With a compatible Finder 85.04 timer relay, the switching sequence is determined by the timer's operating function. The socket itself is a passive connection accessory and does not independently provide switching or timing functions.
The box-clamp screw terminals allow the socket to be wired into the control panel, while the plug-in arrangement permits relay replacement without dismantling the fixed terminal connections. The supplied 094.91.3 plastic retaining and release clip helps secure the relay and supports convenient removal during servicing.
For suitable installations, optional Finder 99.80 Series modules can provide additional coil indication or EMC suppression functionality. Compatible Finder 094.06 jumper links can also simplify wiring between adjacent sockets. The complete relay and socket assembly must remain within the electrical ratings of both components.
Typical Applications
- Industrial automation control panels.
- Finder 55.34 four-pole relay installations.
- Finder 85.04 timer relay mounting.
- Machinery and equipment control circuits.
- Industrial process automation systems.
- Multi-circuit auxiliary switching applications.
- Electrical distribution and switchgear control cabinets.
- Motor control auxiliary circuits.
- Industrial signalling and interlocking circuits.
- Building automation and HVAC control panels.
- OEM machinery and equipment manufacturing.
- Industrial control panel refurbishment.
- Relay maintenance and replacement installations.
- Control circuits requiring optional indication or suppression modules.
