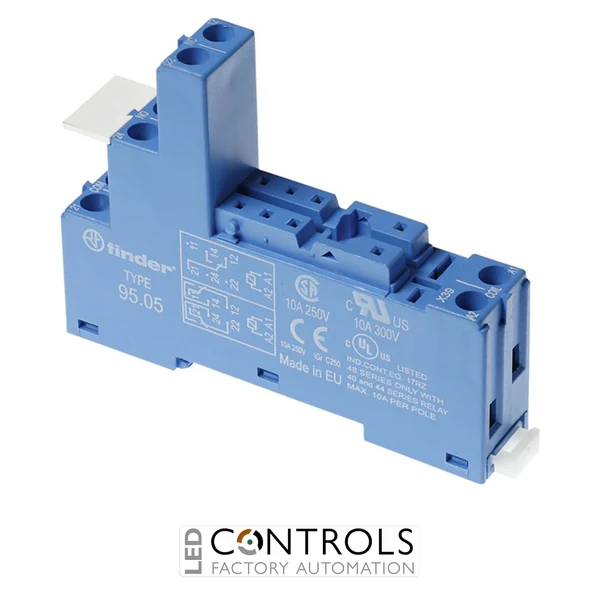

Why Choose the Finder 95.05.0SPA Relay Socket?
The Finder 95.05.0SPA is a robust 8-pin relay socket with screw terminals, designed for industrial automation, electrical control panels and machinery installations. Part of the Finder 95 Series, this socket provides a secure electrical and mechanical interface for compatible Finder 40 Series electromechanical relays.
Featuring a 10 A rated current, 250 V rated voltage and 35 mm DIN rail or panel mounting, the Finder 95.05.0SPA is suitable for a wide range of industrial relay applications. Its black housing, box-clamp screw terminals and compact 15.8 mm width make it a practical solution for control cabinets where secure wiring, efficient use of space and straightforward servicing are important.
The SPA version is supplied with a plastic retaining and release clip, helping secure the installed relay while allowing convenient removal during maintenance. The socket is compatible with selected Finder 40.51, 40.52, 40.61 and 40.62 relays, subject to the exact relay configuration and manufacturer's compatibility information.
Key Advantages
- 8-pin relay socket designed for compatible Finder electromechanical relays.
- 10 A rated current for suitable industrial switching applications.
- 250 V rated voltage for compatible electrical control circuits.
- Black housing for identification within electrical installations.
- Box-clamp screw terminals provide secure and dependable conductor connections.
- 35 mm DIN rail mounting enables efficient control cabinet installation.
- Panel mounting capability provides additional installation flexibility.
- Plastic retaining and release clip included for convenient relay retention and replacement.
- 15.8 mm housing width helps optimise available panel space.
- IP20 protection rating for use within suitable electrical enclosures.
- 6 kV impulse dielectric strength between coil and contacts under specified test conditions.
- Replaceable relay arrangement allows maintenance without disconnecting permanent socket wiring.
- Compatible accessory options support jumper connections, marking and selected additional interface functions.
Key Features
- Finder 95 Series relay socket.
- Manufacturer part number 95.05.0SPA.
- 8-pin socket configuration.
- 10 A nominal current rating.
- 250 V rated voltage.
- Black socket housing.
- Screw terminal connections with box-clamp construction.
- 35 mm DIN rail or panel mounting.
- Plastic retaining and release clip supplied with the SPA version.
- Compatible with selected Finder 40 Series relays.
- 15.8 mm housing width.
- IP20 protection category.
- 6 kV dielectric strength between coil and contacts.
- -40 to +70 °C ambient operating temperature range.
- 0.5 Nm terminal screw tightening torque.
- 8 mm recommended conductor stripping length.
- Optional jumper link and marking accessories.
- RoHS-compliant construction.
Technical Specifications
- Manufacturer: Finder
- Series: 95 Series
- Part number: 95.05.0SPA
- Product type: Electromechanical relay socket
- Socket configuration: 8-pin
- Rated current: 10 A
- Rated voltage: 250 V
- Housing colour: Black
- Compatible relay family: Finder 40 Series
- Associated relay types: 40.51, 40.52, 40.61 and 40.62, subject to compatibility
- Terminal type: Screw terminals
- Terminal construction: Box-clamp
- Mounting type: DIN rail or panel
- DIN rail size: 35 mm
- DIN rail standard: EN 60715
- Width: 15.8 mm
- Height: 78.6 mm
- Depth: 60.9 mm
- Protection category: IP20
- Ambient operating temperature: -40 to +70 °C
- Dielectric strength between coil and contacts: 6 kV (1.2/50 µs impulse)
- Terminal screw tightening torque: 0.5 Nm
- Recommended conductor stripping length: 8 mm
- Maximum solid conductor size: 1 × 6 mm² or 2 × 2.5 mm²
- Maximum stranded conductor size: 1 × 4 mm² or 2 × 2.5 mm²
- Relay retaining accessory: Plastic retaining and release clip
- Retaining clip reference: Finder 095.01.0
- Compatible 8-way jumper link: Finder 095.18.0
- Additional accessories: Selected Finder 99.02 indication and suppression modules, 86.30 timer modules and compatible marking accessories
- EAN / GTIN: 8012823259253
- Environmental compliance: RoHS compliant
- Country of origin: Italy
Reliable Relay Connections for Industrial Control Systems
The Finder 95.05.0SPA provides the electrical connection between a compatible plug-in relay and the permanent wiring of an industrial control system. Its eight-pin configuration accommodates the connections required by selected Finder 40 Series relays, allowing engineers to create modular switching interfaces for automation, machinery control and electrical distribution applications.
The socket's box-clamp screw terminals are designed to provide secure conductor retention and reliable electrical contact. With a recommended tightening torque of 0.5 Nm and an 8 mm conductor stripping length, the terminal arrangement supports consistent wiring practices during panel assembly and maintenance.
Its 35 mm DIN rail mounting allows the socket to be installed alongside other industrial control components, while the alternative panel mounting arrangement provides flexibility for different cabinet designs. The 15.8 mm width helps make efficient use of the available installation space.
The SPA designation identifies the version supplied with a plastic retaining and release clip. This clip helps keep the relay securely seated during operation and provides a convenient means of removing it for inspection or replacement. The relay can therefore be serviced without disconnecting the socket's fixed wiring.
The socket has a 10 A rated current and 250 V rated voltage, together with an IP20 protection category. The maximum permissible switching load of the complete assembly depends on the ratings of both the socket and the installed relay, as well as the characteristics of the connected load.
Flexible Installation with Finder 95 Series Accessories
The Finder 95 Series offers a modular approach to relay installation, with accessories available for selected socket configurations. The 95.05.0SPA is supplied with the appropriate plastic retaining and release clip, while compatible jumper links can simplify wiring arrangements where common electrical connections are required.
The Finder 095.18.0 8-way jumper link is an accessory option for compatible black 95 Series sockets. This can reduce repetitive wiring across adjacent relay installations when used in accordance with Finder's electrical connection diagrams.
Selected Finder 99.02 coil indication and EMC suppression modules and 86.30 timer modules may also be used with appropriate 95 Series configurations. These accessories are not integrated into the standard 95.05.0SPA socket and must be selected separately for the intended relay and control voltage.
The socket is therefore suitable for engineers who need a straightforward relay connection while retaining the flexibility to use compatible accessories for specific control panel requirements.
Typical Applications
- Industrial automation control panels.
- Machinery control and auxiliary switching circuits.
- PLC output relay interface assemblies.
- Electrical distribution and control cabinets.
- Industrial process control systems.
- Manufacturing and production machinery.
- Conveyor and material handling equipment.
- Building management and HVAC control panels.
- Motor control and auxiliary signalling installations.
- OEM electrical equipment manufacturing.
- Power management and monitoring systems.
- Maintenance and replacement of compatible Finder 40 Series relay installations.
