Why Choose the Finder 95.15.2.0SNA PCB Relay Socket?

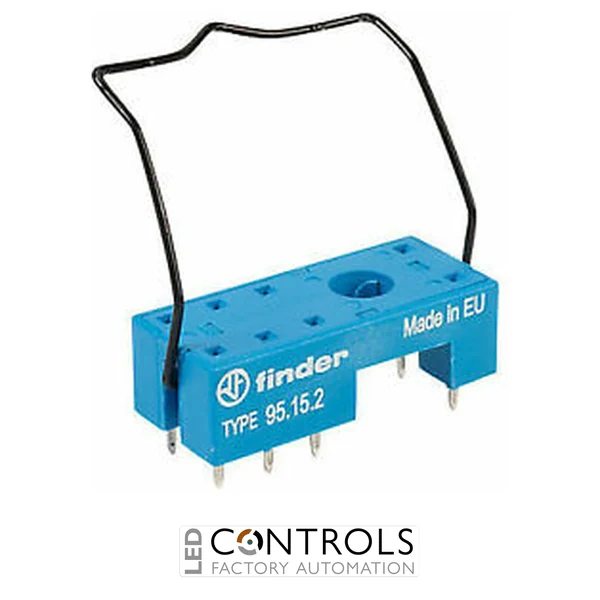

The Finder 95.15.2.0SNA is a compact 8-pin printed circuit board (PCB) relay socket from the Finder 95 Series, designed to provide a removable connection interface for compatible Finder 40 Series relays. It is suitable for electronic control assemblies, industrial automation equipment and PCB-based switching applications where reliable relay connections and convenient servicing are important.
Based on the Finder 95.15.2 socket design, this component uses through-hole PCB terminals that are soldered directly to a suitably designed circuit board. The socket allows a compatible plug-in relay to be installed or replaced without desoldering the relay itself, simplifying maintenance and supporting modular electronic equipment construction.
The Finder 95.15.2 socket family is rated at 10 A and 250 V, with a 6 kV impulse withstand rating between coil and contacts, IP20 protection and an operating temperature range of −40 to +70 °C. The 95.15.2.0SNA designation identifies a specific ordering variant; the exact packaging and accessory contents should be confirmed against the supplied item.
Key Advantages
- 8-pin PCB relay socket for compatible Finder 40 Series relays.
- 10 A rated current for suitable relay interface applications.
- 250 V rated voltage for electrical switching circuits.
- Through-hole PCB mounting provides a permanent soldered connection to the circuit board.
- Plug-in relay arrangement simplifies relay replacement and servicing.
- Compatible with selected Finder 40.51, 40.52, 40.61 and 40.62 relays.
- 6 kV impulse withstand rating between coil and contacts.
- IP20 protection category for installation inside suitable equipment enclosures.
- Wide −40 to +70 °C operating temperature range.
- Compact construction supports efficient PCB layouts.
- Suitable for industrial electronic control equipment and OEM assemblies.
Key Features
- Finder 95 Series relay socket.
- Manufacturer part number 95.15.2.0SNA.
- 95.15.2 PCB socket design.
- 8-pin relay connection arrangement.
- 10 A rated current.
- 250 V rated voltage.
- Through-hole PCB solder terminals.
- Designed for selected Finder 40 Series electromechanical relays.
- Compatible with Finder 40.51, 40.52, 40.61 and 40.62 relay types.
- 6 kV impulse withstand voltage between coil and contacts.
- IP20 protection category.
- −40 to +70 °C ambient operating temperature range.
- Supports compatible retaining clip accessories where required.
- Removable relay interface for PCB-based switching and control equipment.
Technical Specifications
- Manufacturer: Finder
- Series: 95 Series
- Manufacturer part number: 95.15.2.0SNA
- Base socket model: 95.15.2
- Product type: PCB relay socket
- Socket configuration: 8 pins
- Compatible relay series: Finder 40 Series
- Compatible relay types: Finder 40.51, 40.52, 40.61 and 40.62
- Rated current: 10 A
- Rated voltage: 250 V
- Terminal type: PCB solder pins
- Mounting type: Through-hole PCB mounting
- Impulse withstand voltage: 6 kV (1.2/50 µs) between coil and contacts
- Protection category: IP20
- Ambient operating temperature: −40 to +70 °C
- Compatible metal retaining clip: Finder 095.51
- Compatible plastic retaining clip: Finder 095.52
- Relay installation: Plug-in
- Product category: Relay sockets and accessories
Reliable PCB Relay Connections for Industrial Automation
PCB relay sockets provide a practical connection between removable electromechanical relays and the permanent copper tracks of a printed circuit board. The Finder 95.15.2.0SNA supports compatible Finder 40 Series relays in electronic control assemblies, allowing a relay to be removed for inspection or replacement without desoldering it from the board.
The Finder 95 Series is designed to support dependable relay installation in industrial electronic equipment. The 95.15.2 PCB socket design combines a compact 8-pin connection arrangement with 10 A and 250 V ratings, making it suitable for appropriately designed switching and control circuits. Circuit board layout, relay selection, conductor track capacity and electrical clearances must be considered when designing the complete assembly.
Typical Applications
- Industrial electronic control boards.
- PCB-based relay switching assemblies.
- OEM machine control electronics.
- Industrial automation equipment.
- Electronic monitoring and alarm circuits.
- Building control electronics.
- Power supply and control interface boards.
- Industrial signalling equipment.
- Electronic equipment requiring replaceable plug-in relays.
- Maintenance and repair of compatible Finder 40 Series relay assemblies.
