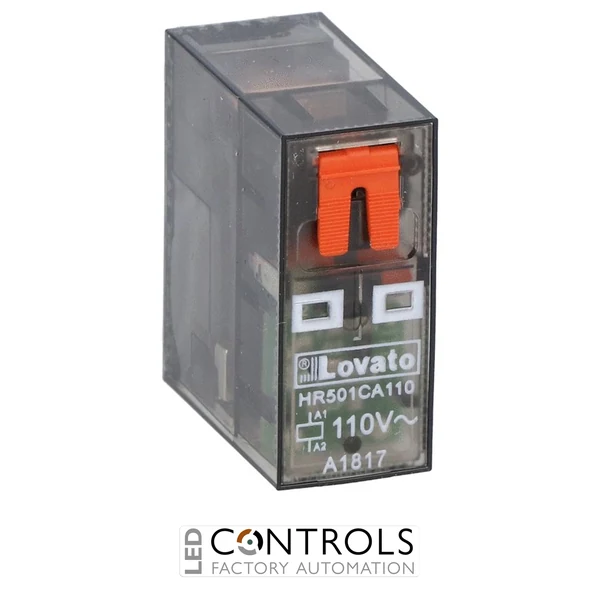

HR501CA110 - MINIATURE RELAY 1C/O 16A 110VAC + LED

HR501CA110 – MINIATURE RELAY 1C/O 16A 110VAC + LED

Lovato’s HR501CA110 miniature relay (SKU HR501CA110) delivers dependable switching for compact control panels.

SKU: HR501CA110MPN: HR501CA110
Price
List Price £9.25 ex VAT
Your Price (ex VAT)
£9.25
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £9.25
Trade pricing is personalised to your account

Manufacturer Lead Time

£9.25

Lovato HR501CA110 Miniature Relay 110-120VAC 16A 1 Changeover Contact with LED Indicator

The Lovato HR501CA110 is a compact miniature electromagnetic relay designed for reliable switching applications in industrial automation, control panels, and electrical systems. Featuring a 110/120VAC control coil, a 16A rated thermal current, and a 1 changeover (1 C/O / SPDT) contact, this HR501C series relay includes an integrated LED state indicator and mechanical actuator for enhanced status monitoring and easier maintenance. The relay is designed for installation on compatible HR5XS2 sockets.

Product Overview

The Lovato HR501CA110 miniature relay provides dependable electromechanical switching for industrial and automation applications where compact dimensions and reliable performance are required. The built-in LED indicator provides quick visual confirmation of relay operation, while the mechanical actuator allows convenient manual testing during commissioning and maintenance. The relay features a 110/120VAC coil supply and one changeover contact rated at 16A.

Key Features

  • Manufacturer: Lovato Electric
  • Model: HR501CA110
  • Product type: Miniature electromagnetic relay
  • Control coil voltage: 110/120VAC
  • Contact configuration: 1 changeover (1 C/O / SPDT)
  • Rated thermal current: 16A
  • LED state indicator included
  • Mechanical test actuator included
  • Compatible with HR5XS2 relay sockets
  • Suitable for industrial control applications
  • IEC/EN 61810 compliant

Applications

  • Industrial automation control panels
  • PLC interface circuits
  • Machine control systems
  • Motor and actuator switching
  • Electrical distribution equipment
  • OEM automation assemblies

Why Choose Lovato HR501CA110?

The Lovato HR501CA110 combines reliable relay switching with convenient LED status indication and manual testing capability. Its 16A contact rating, compact construction, and compatibility with Lovato relay socket systems make it a practical solution for professional industrial control installations requiring dependable operation and easy maintenance.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Plug-in Relay
Mounting Type Plug-in socket
Switching Current (A) 16 A
Current 16 A
Voltage 110 V
Coil / Supply Voltage 110 V AC, 120 V AC
Contacts 1 C/O
Specification Details Brand Lovato Electric
Part Number HR501CA110
Relay Series HR501C
Relay Type Miniature electromagnetic relay
Coil Voltage 110/120VAC
Contact Configuration 1 C/O (SPDT)
Rated Current 16A
Socket Rated Current 10A
LED Indicator Yes
Mechanical Actuator Yes
Mounting Plug-in socket mounting
Compatible Socket HR5XS2 series
Operating Temperature -40...+70°C
Weight 37.73g
EAN 8013975233498
HS Code 85365080

Frequently Asked Questions

What is the Lovato HR501CA110?

The Lovato HR501CA110 is a miniature electromagnetic relay with a 110/120VAC coil, one changeover contact, LED state indicator, mechanical actuator, and a 16A rated thermal current.

What coil voltage does the HR501CA110 use?

The HR501CA110 uses a 110/120VAC control coil.

How many contacts does the Lovato HR501CA110 have?

The relay has one changeover contact configuration (1 C/O or SPDT).
