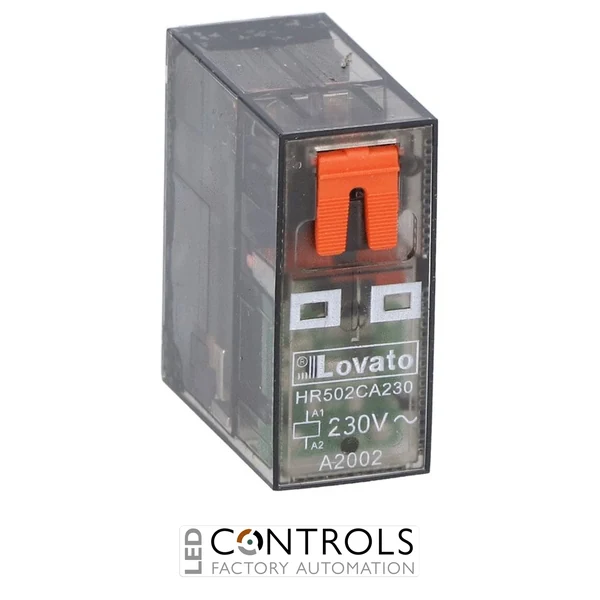

HR502CA230 - MINIATURE RELAY 2C/O 8A 230VAC + LED

HR502CA230 – MINIATURE RELAY 2C/O 8A 230VAC + LED

Designed for reliable control switching, the Lovato HR502CA230 miniature relay combines a 230VAC coil, 2 C/O contacts and an 8A Ith rating in a compact form.

SKU: HR502CA230MPN: HR502CA230
Price
List Price £10.20 ex VAT
Your Price (ex VAT)
£10.20
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £10.20
Trade pricing is personalised to your account

Manufacturer Lead Time

£10.20

Lovato HR502CA230 Miniature Relay 230VAC 8A 2C/O with LED Indicator

The Lovato HR502CA230 is a compact miniature electromechanical relay designed for reliable switching applications in industrial automation, control panels, and electrical systems. Featuring a 230VAC coil voltage, 8A rated thermal current, and a 2 changeover (2C/O / DPDT) contact configuration, this relay provides flexible and dependable switching performance for professional control applications.

The HR502CA230 includes an integrated LED state indicator, mechanical contact position indicator, and mechanical test actuator for easy commissioning, diagnostics, and maintenance. The relay is designed for fitting on compatible HR5 series sockets and is suitable for industrial automation and general-purpose switching systems.

Lovato HR502CA230 Product Features

  • Manufacturer: Lovato Electric
  • Model: HR502CA230
  • Product type: Miniature electromechanical relay
  • Coil voltage: 230VAC
  • Contact configuration: 2 changeover contacts (2C/O / DPDT)
  • Rated thermal current: 8A
  • Maximum instantaneous current: 10A
  • LED relay status indicator
  • Mechanical contact position indicator
  • Mechanical test actuator
  • HR50 series relay design
  • Socket mounting configuration

Applications

The Lovato HR502CA230 miniature relay is suitable for PLC interface circuits, industrial automation equipment, electrical control panels, machine control systems, contactor control, motor control applications, and general-purpose switching installations requiring reliable relay operation.

Why Choose Lovato HR502CA230?

  • Reliable 230VAC coil operation for industrial control applications
  • Dual changeover contacts for flexible circuit switching
  • Compact design for space-saving control panels
  • Built-in LED indication for quick relay status checks
  • Mechanical actuator enables simple testing and maintenance
  • Manufactured by Lovato Electric for professional automation systems

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Type Plug-in socket
Switching Current (A) 8 A
Current 8 A
Voltage 230 V
Coil / Supply Voltage 230 V AC
Specification Value Brand Lovato Electric
Part Number HR502CA230
Relay Type Miniature General Purpose Relay
Control Voltage 230VAC
Contact Type 2C/O Changeover (DPDT)
Rated Current 8A
Maximum Instantaneous Current 10A
Contact Material Ag/Ni
LED Indicator Yes
Mechanical Test Actuator Yes
Mechanical Position Indicator Yes
Mounting Plug-in Socket Mounting
EAN 8013975233559
HS Code 85365080

Frequently Asked Questions

What is the Lovato HR502CA230?

The Lovato HR502CA230 is a miniature electromechanical relay featuring a 230VAC coil, 8A rating, two changeover contacts, LED indication, mechanical position indicator, and test actuator.

What voltage does the HR502CA230 relay use?

The Lovato HR502CA230 operates with a 230VAC control coil voltage.

How many contacts does the Lovato HR502CA230 have?

The HR502CA230 features two changeover contacts, also known as 2C/O or DPDT contacts.

Does the Lovato HR502CA230 include an LED indicator?

Yes, the relay includes an LED state indicator for monitoring relay activation status.
