HR6XS22 - SOCKET FOR HR602C- SCREW TERMINALS

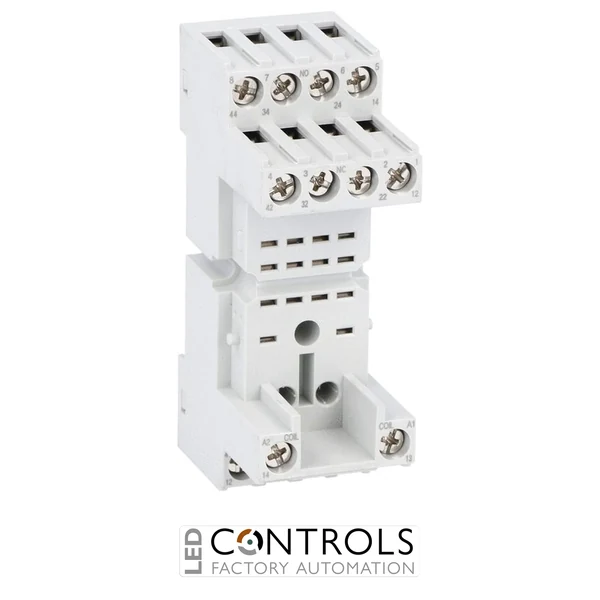

HR6XS22 – SOCKET FOR HR602C- SCREW TERMINALS

The Lovato HR6XS22 Socket delivers dependable, screw terminal connectivity for HR602C series installations.

SKU: HR6XS22MPN: HR6XS22
Price
List Price £5.47 ex VAT
Your Price (ex VAT)
£5.47
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £5.47
Trade pricing is personalised to your account

Manufacturer Lead Time

£5.47

LOVATO HR6XS22 Relay Socket for HR Series Relays DIN Rail Mount Screw Terminals

The LOVATO HR6XS22 is a robust relay socket designed for use with LOVATO HR60 series general purpose relays. Featuring screw terminal connections, an 8-pin configuration, and compatibility with relays having 2 changeover (C/O) contacts, this socket provides a reliable interface for industrial automation, electrical control panels, and switching applications.

Designed for convenient installation, the HR6XS22 supports mounting on standard 35mm DIN rails or direct screw fixing. Its secure relay mounting design allows fast replacement and maintenance while maintaining dependable electrical connections in industrial environments.

Product Features

  • Manufacturer: LOVATO Electric
  • Model: HR6XS22
  • Product type: Relay socket
  • Compatible with LOVATO HR60 series relays
  • Suitable for 2 C/O contact relays
  • Screw terminal connection system
  • 8-pin socket configuration
  • 10A rated current capability
  • DIN rail mounting and screw fixing options
  • Designed for industrial automation applications

Applications

  • Industrial automation control panels
  • PLC relay interface systems
  • Machine control equipment
  • Electrical distribution cabinets
  • Signal isolation circuits
  • Industrial relay switching systems

Why Choose LOVATO HR6XS22?

The LOVATO HR6XS22 offers a dependable and easy-to-install solution for mounting HR60 series relays. With screw terminals, DIN rail compatibility, and reliable electrical performance, it is designed to simplify relay installation and servicing in professional industrial control applications.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Relay Socket
Terminal Type Screw
Switching Current (A) 10 A
Mounting Type DIN rail
Contacts 2 C/O
Specification Value Product Type Relay Socket
Order Code HR6XS22
Compatible Relay Series LOVATO HR60 Series
Compatible Relay Type HR602C Series
Contact Configuration 2 Changeover Contacts (2 C/O)
Number of Pins 8 Pins
Terminal Type Screw Terminals
Rated Current 10A
Rated Insulation Voltage 250V
Rated Impulse Withstand Voltage 4kV
Conductor Section 0.5...2.5mm²
Mounting 35mm DIN Rail / Screw Fixing
Weight 56g
Standards IEC/EN 61810
HS Code 85365080

Frequently Asked Questions

What relays are compatible with the LOVATO HR6XS22?

The HR6XS22 is designed for LOVATO HR60 series relays, including HR602C series relays with 2 changeover contacts.

What type of terminals does the HR6XS22 use?

The HR6XS22 uses screw terminals for secure electrical connections.

How is the LOVATO HR6XS22 mounted?

The HR6XS22 can be installed on a standard 35mm DIN rail or fixed using screws for panel mounting.

Is the LOVATO HR6XS22 a relay?

No. The HR6XS22 is a relay socket accessory used to mount and connect compatible LOVATO HR series relays.
