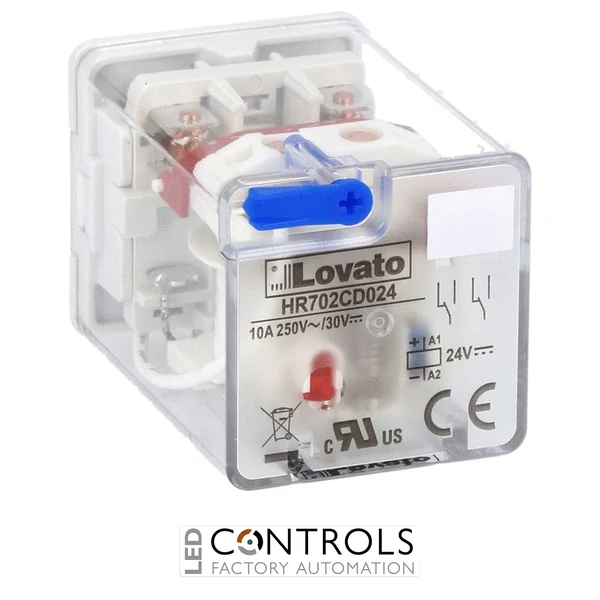

HR702CD024 - IND. RELAY 8 PINS 2C/O 10A 24VDC+LED

HR702CD024 – IND. RELAY 8 PINS 2C/O 10A 24VDC+LED

Designed for reliable control switching, the Lovato HR702CD024 industrial relay combines clarity and durability in a compact 8-pin package.

SKU: HR702CD024MPN: HR702CD024
Price
List Price £11.71 ex VAT
Your Price (ex VAT)
£11.71
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £11.71
Trade pricing is personalised to your account

Manufacturer Lead Time

£11.71

LOVATO HR702CD024 Industrial Relay 24VDC 10A 2 C/O Contacts with LED Indicator

The LOVATO HR702CD024 is an 8-pin industrial plug-in relay designed for reliable switching performance in automation systems, control panels, and industrial machinery. Featuring a 24VDC coil voltage, 10A rated current, and 2 changeover (2 C/O) contacts, this relay provides dependable electrical control with an integrated LED state indicator, mechanical contact position indicator, and mechanical test actuator for easy diagnostics and maintenance.

Part of the LOVATO HR702C general purpose relay series, the HR702CD024 is designed for socket mounting on the HR7XS1 relay socket. Its compact 8-pin construction, Ag/Ni contact material, and robust switching characteristics make it suitable for industrial automation, PLC interfaces, and electrical control applications requiring dependable relay operation.

Product Features

  • Manufacturer: LOVATO Electric
  • Model: HR702CD024
  • Product type: Industrial plug-in relay
  • Series: HR702C
  • Coil voltage: 24VDC
  • Contact configuration: 2 Changeover (2 C/O / DPDT)
  • Rated current: 10A
  • 8-pin relay configuration
  • LED state indicator included
  • Mechanical contact position indicator
  • Mechanical test actuator
  • Ag/Ni contact material
  • Compatible socket: HR7XS1

Applications

  • Industrial automation systems
  • PLC interface circuits
  • Machine control panels
  • Electrical distribution cabinets
  • Motor and load switching applications
  • Signal isolation and control circuits

Why Choose LOVATO HR702CD024?

The LOVATO HR702CD024 combines reliable electromechanical switching with practical diagnostic features including LED indication and a mechanical actuator. With a 10A contact rating, 24VDC coil, and dual changeover contacts, it provides a flexible and dependable relay solution for industrial environments where durability, easy maintenance, and long service life are required.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Plug-in Relay
Mounting Type Plug-in socket
Switching Current (A) 10 A
Current 10 A
Coil / Supply Voltage 24 V DC
Contacts 2 C/O
Specification Value Product Type Industrial Relay
Order Code HR702CD024
Series HR702C
Coil Voltage 24VDC
Contact Configuration 2 Changeover Contacts (2 C/O / DPDT)
Rated Current 10A
Number of Pins 8 Pins
Rated Insulation Voltage 250V
Rated Impulse Withstand Voltage 6kV
Contact Material Ag/Ni
Mechanical Life 5,000,000 operations
Electrical Life 100,000 operations (AC-1)
DC Coil Consumption 1.5W
Operating Temperature -40°C to +55°C
Mounting Socket Mounted
Compatible Socket HR7XS1
Weight 101.63g
EAN 8013975233757
HS Code 85365080

Frequently Asked Questions

What is the coil voltage of the LOVATO HR702CD024?

The LOVATO HR702CD024 uses a 24VDC control coil.

How many contacts does the HR702CD024 relay have?

The relay features two changeover contacts (2 C/O), also known as a DPDT configuration.

Does the HR702CD024 include an LED indicator?

Yes. The HR702CD024 includes an LED state indicator, mechanical contact position indicator, and mechanical test actuator.

Which socket is compatible with the LOVATO HR702CD024?

The HR702CD024 is designed for use with the LOVATO HR7XS1 relay socket.
