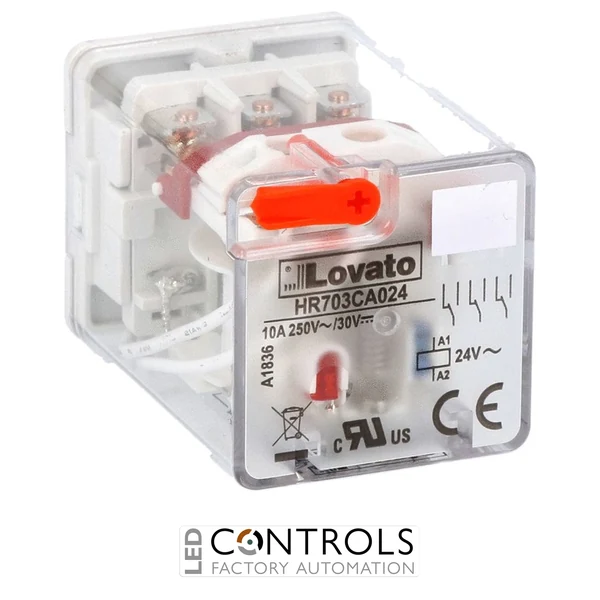

HR703CA024 - IND. RELAY 11 PINS 3C/O 10A 24VAC+LED

HR703CA024 – IND. RELAY 11 PINS 3C/O 10A 24VAC+LED

Designed for dependable control, the Lovato HR703CA024 industrial relay combines a 24VAC coil with three changeover contacts rated 10 A.

SKU: HR703CA024MPN: HR703CA024
Price
List Price £12.50 ex VAT
Your Price (ex VAT)
£12.50
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £12.50
Trade pricing is personalised to your account

Manufacturer Lead Time

£12.50

LOVATO HR703CA024 Industrial Relay 24VAC 10A 3 C/O Contacts with LED Indicator

The LOVATO HR703CA024 is an 11-pin industrial plug-in relay designed for reliable switching performance in automation systems, control panels, and industrial machinery. Featuring a 24VAC coil voltage, 10A rated current, and 3 changeover (3 C/O) contacts, this relay provides dependable electrical control with an integrated LED state indicator, mechanical contact position indicator, and mechanical test actuator for convenient diagnostics and maintenance.

Part of the LOVATO HR703C general purpose relay series, the HR703CA024 is designed for socket mounting on the HR7XS2 relay socket. Its compact 11-pin construction, Ag/Ni contact material, and robust switching characteristics make it suitable for PLC interfaces, industrial automation systems, and electrical control applications requiring dependable relay operation.

Product Features

  • Manufacturer: LOVATO Electric
  • Model: HR703CA024
  • Product type: Industrial plug-in relay
  • Series: HR703C
  • Coil voltage: 24VAC
  • Contact configuration: 3 Changeover (3 C/O / 3PDT)
  • Rated current: 10A
  • 11-pin relay configuration
  • LED state indicator included
  • Mechanical contact position indicator
  • Mechanical test actuator
  • Silver Nickel (Ag/Ni) contact material
  • Compatible socket: HR7XS2

Applications

  • Industrial automation systems
  • PLC interface circuits
  • Machine control panels
  • Electrical distribution cabinets
  • Motor and load switching applications
  • Signal isolation and control circuits

Why Choose LOVATO HR703CA024?

The LOVATO HR703CA024 combines reliable electromechanical switching with practical diagnostic features including LED indication, mechanical position indication, and a manual test actuator. With a 10A contact rating, 24VAC coil, and three changeover contacts, it provides a flexible and dependable relay solution for industrial environments where durability, easy maintenance, and long service life are required.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Plug-in Relay
Mounting Type Plug-in socket
Switching Current (A) 10 A
Current 10 A
Coil / Supply Voltage 24 V AC
Contacts 3 C/O
Specification Value Product Type Industrial Relay
Order Code HR703CA024
Series HR703C
Coil Voltage 24VAC
Contact Configuration 3 Changeover Contacts (3 C/O / 3PDT)
Rated Current 10A
Number of Pins 11 Pins
Rated Insulation Voltage 250V
Rated Impulse Withstand Voltage 6kV
Contact Material Ag/Ni
Mechanical Life 5,000,000 operations
Electrical Life 100,000 operations (AC-1)
Coil Consumption 3VA AC
Operating Temperature -40°C to +55°C
Mounting Socket Mounted
Compatible Socket HR7XS2
Weight 101.63g
EAN 8013975233801
HS Code 85365080

Frequently Asked Questions

What is the coil voltage of the LOVATO HR703CA024?

The LOVATO HR703CA024 uses a 24VAC control coil.

How many contacts does the HR703CA024 relay have?

The relay features three changeover contacts (3 C/O), also known as a 3PDT configuration.

Does the HR703CA024 include an LED indicator?

Yes. The HR703CA024 includes an LED state indicator, mechanical contact position indicator, and mechanical test actuator.

Which socket is compatible with the LOVATO HR703CA024?

The HR703CA024 is designed for use with the LOVATO HR7XS2 relay socket.
