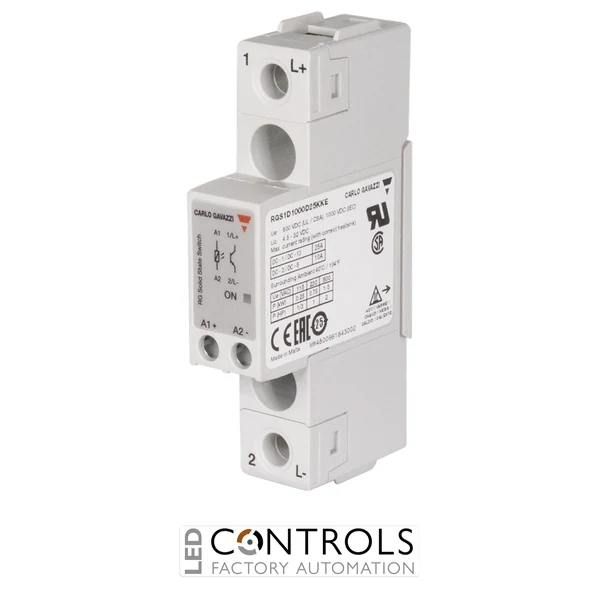

Why Choose the Carlo Gavazzi RGS1D1000D15KKE Solid State Relay?
The Carlo Gavazzi RGS1D1000D15KKE is a compact and reliable DC solid state relay (SSR) designed for high-voltage DC switching applications in industrial automation, photovoltaic systems and power control installations. As part of the advanced Carlo Gavazzi RGS1D series solid state relay range, it provides fast, silent and maintenance-free electronic switching using robust IGBT technology for dependable long-term operation.
This relay features a 1000 V DC operational voltage rating, integrated free-wheeling diode protection and reverse polarity protection on the control input. The slim 17.8 mm housing and chassis mounting format enable efficient installation in compact electrical control panels where reliable DC load switching is required.
With a rated operational current of 15 A DC, a 24–1000 V DC load voltage range and a 4.5–32 V DC control input, the RGS1D1000D15KKE is suitable for applications including photovoltaic string switching, DC heating systems and industrial DC loads.
Key Advantages
- Compact DC solid state relay designed for high-voltage switching applications.
- 15 A DC rated current for industrial DC load control.
- 24–1000 V DC operating voltage range for demanding electrical systems.
- IGBT output technology provides efficient electronic switching.
- Integrated free-wheeling diode protects the output stage from inductive loads.
- Silent, wear-free switching with no mechanical contacts.
Key Features
- Carlo Gavazzi RGS1D series solid state relay.
- 15 A DC rated operational current.
- 24–1000 V DC operating voltage.
- 4.5–32 V DC control input.
- IGBT DC output switching.
- Integrated free-wheeling diode for output protection.
- Reverse polarity protection on control input.
- 17.8 mm slimline chassis-mounted design.
- Screw terminals with captive clamp connections.
Reliable DC Switching for Industrial Applications
DC solid state relays such as the Carlo Gavazzi RGS1D1000D15KKE provide reliable electronic switching without the mechanical wear associated with traditional contactors and relays. This makes them suitable for applications requiring frequent switching cycles, high reliability and minimal maintenance.
The RGS1D series is designed for industrial engineers requiring compact solutions for high-voltage DC switching. Its IGBT output, integrated protection features and wide operating voltage range make it suitable for modern energy, automation and industrial control systems.
Typical Applications
- Photovoltaic string switching systems.
- DC heating and thermal control applications.
- Industrial DC power management.
- Battery and energy storage systems.
- Automation and control panels.
- OEM industrial equipment.
