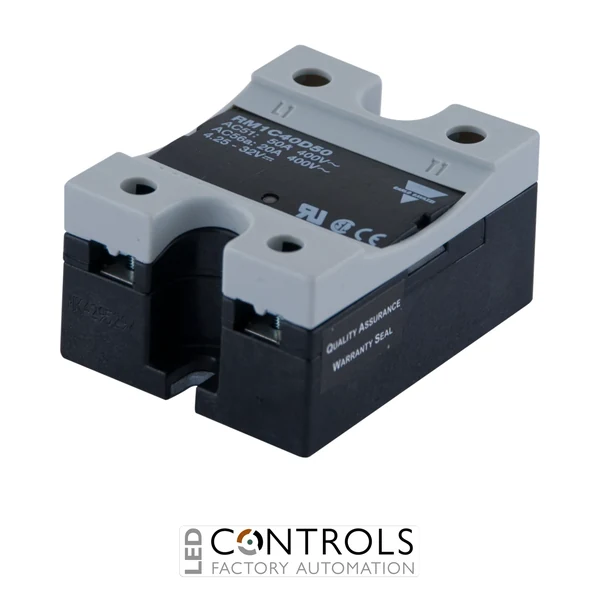

Why Choose the Carlo Gavazzi RM1C40D50 Solid State Relay?
The Carlo Gavazzi RM1C40D50 is a robust single-pole solid state relay (SSR) designed for reliable switching of AC loads in industrial automation, heating and control applications. As part of the established Carlo Gavazzi RM1C series, it provides dependable semiconductor switching, a compact panel-mount format and DC control for integration into industrial control systems.
This solid state relay uses peak switching and is designed for AC loads operating from 100 to 440 V. Electronic switching eliminates mechanical contacts, providing silent operation and avoiding the contact wear associated with conventional electromechanical relays. The relay also provides a high blocking voltage of 850 Vp for robust operation within its specified voltage range.
With a rated current of 50 A AC-51 and a 4.25–32 V DC control input, the RM1C40D50 is suitable for switching resistive loads in industrial equipment, heating systems and automation panels. Its screw terminals with captive clamp provide secure electrical connections for panel-mounted installations.
Key Advantages
- Compact single-pole solid state relay designed for industrial switching applications.
- 50 A AC-51 rated current for suitable high-current resistive loads.
- 100–440 V AC operating voltage for a broad range of AC switching applications.
- 4.25–32 V DC control input suitable for PLCs and electronic control systems.
- Peak switching provides controlled semiconductor switching of AC loads.
- 850 Vp blocking voltage provides robust output voltage withstand capability.
- Panel-mount construction enables straightforward installation in industrial control equipment.
Key Features
- Carlo Gavazzi RM1C series solid state relay.
- Single-pole AC solid state switching.
- 50 A rated current at AC-51.
- 100–440 V AC operating voltage.
- 4.25–32 V DC control voltage.
- Peak switching mode.
- 850 Vp blocking voltage.
- Screw power connections with captive clamp.
- Panel-mount construction for industrial control panels.
- Compact hockey-puck style relay format.
Reliable Solid State Switching for Industrial Control
Solid state relays such as the Carlo Gavazzi RM1C40D50 use semiconductor technology instead of mechanical contacts to switch electrical loads. This provides silent operation, rapid electronic switching and eliminates mechanical contact wear, making SSRs well suited to applications requiring frequent or reliable switching.
The RM1C series is designed for industrial control and load-switching applications where dependable AC switching is required. The RM1C40D50 combines a 50 A AC-51 rating with a wide 100–440 V AC operating range and a low-voltage DC control input, allowing it to interface readily with modern automation equipment.
Typical Applications
- Industrial heating and temperature control systems.
- Resistive heating loads and industrial heaters.
- Industrial automation and machine control.
- PLC-controlled AC load switching.
- Process control equipment.
- Electrical control panels and industrial machinery.
