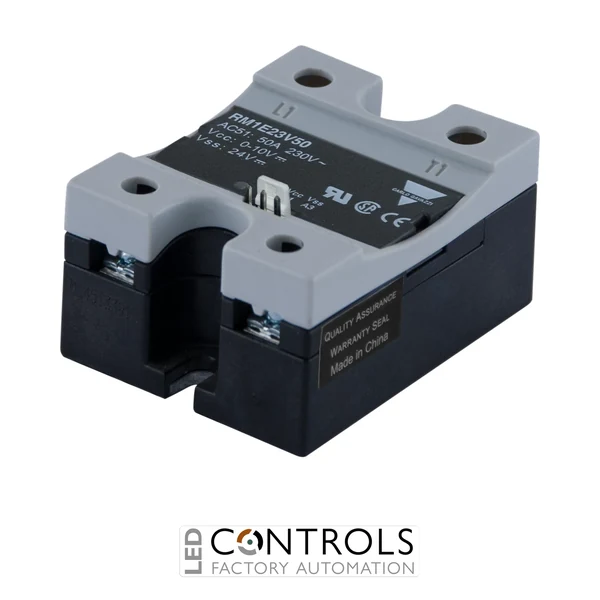

Why Choose the Carlo Gavazzi RM1E23V50 Solid State Relay?
The Carlo Gavazzi RM1E23V50 is a robust single-pole analogue solid state relay (SSR) designed for proportional control of AC loads in industrial heating, automation and process-control applications. As part of the established Carlo Gavazzi RM1E series, it uses phase-angle control to regulate the power delivered to suitable resistive and slightly inductive loads.
This solid state relay provides electronic proportional switching without mechanical contacts, helping eliminate contact wear while delivering quiet and reliable operation. The 0–10 V DC analogue control input determines the output switching point within the AC sine wave, allowing proportional power control from suitable PLCs, process controllers and automation systems. The voltage-controlled RM1E version requires an external 24 V DC supply.
With a rated operational current of 50 A AC-51, an operating voltage range of 90–265 V AC and a 0–10 V DC control input, the RM1E23V50 is well suited to proportional control of AC loads. Its panel-mount construction and screw terminals with captive clamp provide straightforward installation in electrical control panels when used with an appropriately selected heatsink.
Key Advantages
- High-current single-pole analogue solid state relay for proportional AC load control.
- 50 A AC-51 rated current for suitable loads with appropriate thermal management.
- 90–265 V AC operating voltage for a broad range of industrial AC applications.
- 0–10 V DC analogue control input for proportional output regulation.
- Phase-angle control provides variable power control of connected AC loads.
- 650 Vp blocking voltage provides output voltage withstand capability.
- Built-in overvoltage protection helps protect the output circuit.
- External 24 V DC supply supports the voltage-controlled input circuit.
- Panel-mount construction enables straightforward installation in industrial control equipment.
Key Features
- Carlo Gavazzi RM1E analogue solid state relay series.
- Single-pole AC solid state switching.
- 50 A rated current at AC-51.
- 90–265 V AC operating voltage.
- 0–10 V DC analogue control input.
- Proportional phase-angle switching.
- 650 Vp blocking voltage.
- Suitable for resistive and slightly inductive loads.
- Integral snubber network and built-in overvoltage protection.
- Variable-intensity LED indication according to the control input.
- External 24 V DC supply for the voltage-controlled version.
- Polarised lockable control connector.
- Screw power connections with captive clamp.
Precise Proportional Control for Industrial Loads
Analogue solid state relays such as the Carlo Gavazzi RM1E23V50 use semiconductor switching to regulate AC load power according to an analogue control signal. Phase-angle control varies the conduction angle of the AC waveform, allowing the connected load to be controlled proportionally rather than simply switched fully on or off. A 0 V DC control input corresponds to zero output power, while 10 V DC corresponds to full output power with a near-linear power response.
The RM1E series is designed for industrial applications including heaters, lighting and slightly inductive loads. The 0–10 V DC control interface makes the RM1E23V50 particularly suitable for process-control systems where output power needs to follow a controller or PLC analogue signal. The relay switches off when the output current crosses zero and switches on according to the applied control input.
Typical Applications
- Industrial heating and temperature control systems.
- Proportional control of resistive heating elements.
- Industrial lighting control.
- Suitable slightly inductive AC loads such as small fans.
- PLC and process-controller analogue output applications.
- Soft turn-on of high-power incandescent lamps.
- Industrial automation and process-control equipment.
- Electrical control panels and industrial machinery.
