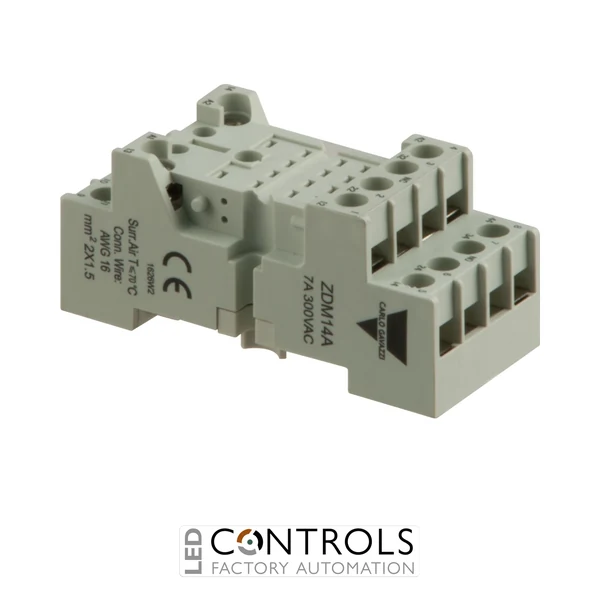

ZDM14A – 14 PIN RELAY BASE

Carlo Gavazzi ZDM14A DIN rail relay socket with 14-pole 4SPDT connection, screw terminals and 10 A rating designed for RMIA industrial electromechanical relays.

SKU: ZDM14AMPN: ZDM14A

List Price £4.11 ex VAT

Your Price (ex VAT)

£4.11

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £4.11

Trade pricing is personalised to your account

Manufacturer Lead Time

£4.11

Why Choose the Carlo Gavazzi ZDM14A Relay Socket?

The Carlo Gavazzi ZDM14A is a robust and reliable DIN rail relay socket designed for secure installation and connection of Carlo Gavazzi RMIA industrial electromechanical relays in automation and control systems. As part of the Carlo Gavazzi relay socket range, it provides a dependable interface for industrial switching applications requiring compact panel mounting and reliable electrical connections.

This relay base is designed for use with RMIA industrial electromechanical relays, providing a 14-pole connection arrangement with four change-over contacts. The ZDM14A features screw terminals for secure wiring, helping simplify installation and maintenance in industrial control cabinets.

With its 35 mm DIN rail mounting design, compact dimensions and 10 A switching capability, the Carlo Gavazzi ZDM14A is suitable for industrial automation panels, machine control systems and electrical cabinets where dependable relay integration is required.

Key Advantages

Compact DIN rail relay socket for industrial automation applications.
Compatible with Carlo Gavazzi RMIA industrial electromechanical relays.
14-pole relay connection with 4SPDT contacts for flexible switching applications.
Screw terminal connection provides secure and reliable wiring.
Space-saving design for electrical control panels.
Reliable relay mounting solution for industrial control systems.

Key Features

Carlo Gavazzi ZDM relay socket series.
14-pole relay socket configuration.
4 change-over contacts (4SPDT).
10 A rated current.
35 mm DIN rail mounting.
Screw terminal connection system.
Designed for RMIA industrial electromechanical relays.

Reliable Relay Integration for Industrial Automation

Relay sockets such as the Carlo Gavazzi ZDM14A provide a secure mounting platform for industrial relays, allowing control systems to be assembled efficiently while simplifying commissioning, maintenance and relay replacement.

The ZDM14A is designed for automation engineers and machine builders requiring dependable relay interfaces within electrical cabinets. Its DIN rail mounting capability and screw terminal connections provide straightforward installation in modern industrial control environments.

Typical Applications

Industrial automation control panels.
Machine building and OEM equipment.
PLC interface and switching circuits.
Electrical cabinets and DIN rail assemblies.
Industrial relay control systems.
Process automation applications.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type	Relay Socket
Mounting Type	DIN rail
Terminal Type	Screw
Switching Current (A)	10 A
Contacts	4 C/O
Manufacturer	Carlo Gavazzi
Series	ZDM Relay Sockets
Model	ZDM14A
Product type	DIN rail relay socket
Compatible relays	RMIA industrial electromechanical relays
Relay poles	14 poles
Contact configuration	4SPDT (4 change-over contacts)
Rated current	10 A
Connection type	Screw terminals
Mounting type	35 mm DIN rail (top hat rail)
Dimensions (W × H × D)	29 × 29 × 67 mm

Frequently Asked Questions

What is the Carlo Gavazzi ZDM14A used for?

The ZDM14A is a DIN rail relay socket used to mount and connect compatible Carlo Gavazzi RMIA industrial electromechanical relays in automation and control systems.

Which relays are compatible with the ZDM14A?

The ZDM14A is designed for use with Carlo Gavazzi RMIA industrial electromechanical relays.

How is the ZDM14A mounted?

The ZDM14A is designed for installation on a standard 35 mm DIN rail inside electrical control panels.

What contact configuration does the ZDM14A support?

The ZDM14A supports a 14-pole relay connection with 4SPDT (4 change-over contacts).

What type of connection does the ZDM14A use?

The ZDM14A uses screw terminals to provide secure electrical connections for industrial relay applications.

Trusted by Automation Engineers Worldwide

Carlo Gavazzi relay sockets are widely used in industrial automation systems to provide reliable relay installation, efficient wiring and dependable control panel integration.

Device Type	Relay Socket
Mounting Type	DIN rail
Terminal Type	Screw
Switching Current (A)	10 A
Manufacturer	Carlo Gavazzi
Series	ZDM Relay Sockets
Model	ZDM14A
Product type	DIN rail relay socket
Compatible relays	RMIA industrial electromechanical relays
Relay poles	14 poles
Contact configuration	4SPDT (4 change-over contacts)
Rated current	10 A
Connection type	Screw terminals
Mounting type	35 mm DIN rail (top hat rail)
Dimensions (W × H × D)	29 × 29 × 67 mm
Contacts	4 C/O
