Why Choose the Carlo Gavazzi ZMI4NA-M Relay Socket?

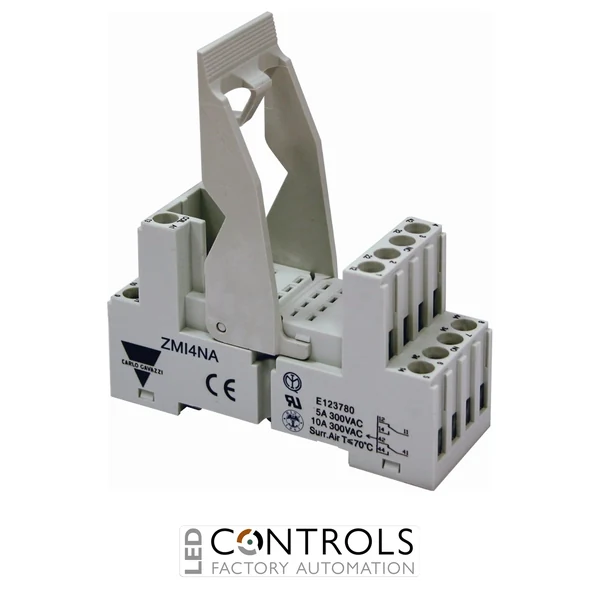

The Carlo Gavazzi ZMI4NA-M is a robust industrial relay socket designed for use with RMIA industrial electromechanical relays. This 14-pole socket supports 4PDT (four change-over contacts) relay configurations and provides a practical interface between plug-in relays and industrial control wiring.
The ZMI4NA-M features screw terminals arranged on two levels for convenient wiring and includes a metal retaining spring to securely hold the compatible relay in position. An identification tag is also included, helping simplify relay identification within electrical control panels.
Designed for 35 mm DIN rail mounting, the ZMI4NA-M provides a compact and reliable relay mounting solution for industrial automation and control systems. Its 75 mm width and 27 mm depth allow straightforward integration into suitable control panels and electrical assemblies.
Key Advantages
- Purpose-built relay socket for Carlo Gavazzi RMIA industrial electromechanical relays.
- 4PDT / four change-over contact configuration for versatile relay switching applications.
- Metal retaining spring provides secure relay retention.
- Screw terminals on two levels provide practical wiring access.
- 35 mm DIN rail mounting for straightforward panel installation.
- Supplied with an identification tag for easier circuit and relay identification.
Key Features
- Carlo Gavazzi ZMI relay socket series.
- 14-pole relay connection for compatible RMIA relays.
- 4PDT / four change-over contacts.
- 10 A contact rating specified for the socket series.
- Screw cage terminals with terminals arranged on two levels.
- 35 mm DIN rail mounting.
- Integrated metal hold-down spring.
- Identification tag included for relay and circuit identification.
Reliable Relay Mounting for Industrial Automation
Relay sockets provide a secure electrical and mechanical interface between plug-in electromechanical relays and control-panel wiring. The Carlo Gavazzi ZMI4NA-M is designed specifically for compatible RMIA relays, providing a practical solution for relay replacement, maintenance and industrial control-panel assembly.
The DIN rail mounting arrangement and screw-terminal construction make the ZMI4NA-M well suited to industrial automation systems where reliable relay installation and accessible wiring are important. The metal retaining spring helps keep the relay securely seated during normal equipment operation.
Typical Applications
- Industrial relay control panels.
- Machine automation and control systems.
- PLC interface and relay switching circuits.
- Industrial machinery and production equipment.
- Electrical control cabinets and DIN rail assemblies.
- OEM automation and machine-building applications.
