Why Choose the Carlo Gavazzi ZMI4NAS Relay Socket?

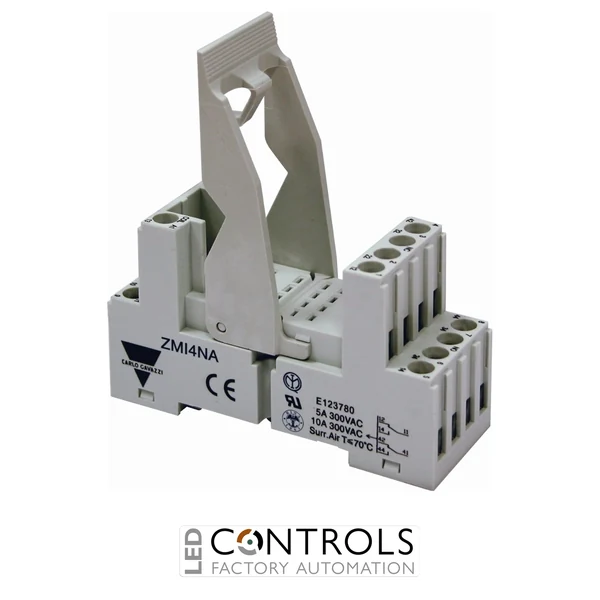

The Carlo Gavazzi ZMI4NAS is a robust industrial relay socket designed for use with RMIA industrial electromechanical relays. This 14-pole socket supports 4PDT (four change-over contacts) relay configurations and provides a practical interface between plug-in relays and industrial control wiring.
The ZMI4NAS features screw terminals arranged on two levels and includes a plastic retaining clamp already mounted on the socket to securely hold the compatible relay in position. An identification tag is also included, helping simplify relay and circuit identification within electrical control panels.
Designed for 35 mm DIN rail mounting, the ZMI4NAS provides a compact and reliable relay mounting solution for industrial automation and control systems. Its 75 mm width and 27 mm depth enable straightforward integration into suitable electrical assemblies.
Key Advantages
- Purpose-built relay socket for Carlo Gavazzi RMIA industrial electromechanical relays.
- 4PDT / four change-over contact configuration for versatile relay switching applications.
- Plastic retaining clamp supplied already mounted on the socket.
- Screw terminals on two levels provide practical wiring access.
- 35 mm DIN rail mounting for straightforward panel installation.
- Supplied with an identification tag for easier relay and circuit identification.
Key Features
- Carlo Gavazzi ZMI relay socket series.
- 14-pole relay connection for compatible RMIA relays.
- 4PDT / four change-over contacts.
- 10 A rated current.
- Screw terminals arranged on two levels.
- 35 mm DIN rail mounting.
- Integrated plastic retaining clamp.
- Identification tag included for relay and circuit identification.
Reliable Relay Mounting for Industrial Automation
Relay sockets provide a secure electrical and mechanical interface between plug-in electromechanical relays and control-panel wiring. The Carlo Gavazzi ZMI4NAS is designed specifically for compatible RMIA relays, providing a practical solution for relay installation, replacement and maintenance in industrial control systems.
The DIN rail mounting arrangement and screw-terminal construction make the ZMI4NAS well suited to industrial automation systems where reliable relay installation and accessible wiring are important. Its integrated plastic retaining clamp helps keep the relay securely seated during normal equipment operation.
Typical Applications
- Industrial relay control panels.
- Machine automation and control systems.
- PLC interface and relay switching circuits.
- Industrial machinery and production equipment.
- Electrical control cabinets and DIN rail assemblies.
- OEM automation and machine-building applications.
