Why Choose the Carlo Gavazzi ZMI4SA Relay Socket?

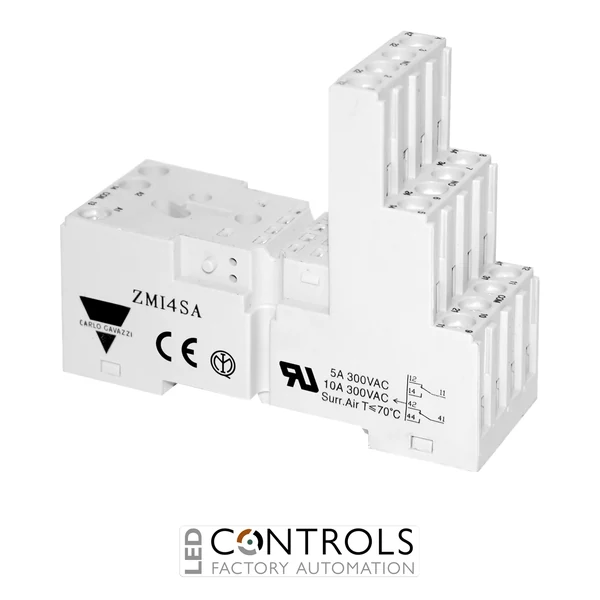

The Carlo Gavazzi ZMI4SA is a robust industrial relay socket designed for use with RMIA industrial electromechanical relays. This 15-pole socket supports 4PDT (four change-over contacts) relay configurations and provides a reliable interface between plug-in relays and industrial control wiring.
The ZMI4SA features screw terminals arranged on three levels for practical wiring access and includes a plastic retaining clamp and identification tag. The socket is designed to provide secure relay mounting and dependable electrical connections in industrial automation and control systems.
Designed for 35 mm DIN rail mounting, the ZMI4SA has a compact 27 mm width, 77 mm height and 62 mm depth, allowing straightforward integration into electrical control panels and machinery.
Key Advantages
- Purpose-built relay socket for Carlo Gavazzi RMIA industrial electromechanical relays.
- 4PDT / four change-over contact configuration for versatile relay switching applications.
- 15-pole connection designed for compatible four-contact RMI relays.
- Screw terminals on three levels provide practical wiring access.
- 35 mm DIN rail mounting for straightforward panel installation.
- Supplied with a plastic retaining clamp and identification tag.
Key Features
- Carlo Gavazzi ZMI relay socket series.
- 15-pole relay connection for compatible RMIA relays.
- 4PDT / four change-over contacts.
- 10 A rated current or 5 A per contact when using four contacts at the applicable rating.
- Screw cage terminals arranged on three levels.
- 35 mm DIN rail mounting.
- Included plastic hold-down clamp.
- Identification tag included for relay and circuit identification.
Reliable Relay Mounting for Industrial Automation
Relay sockets provide a secure electrical and mechanical interface between plug-in electromechanical relays and control-panel wiring. The Carlo Gavazzi ZMI4SA is designed specifically for compatible RMIA relays, providing a practical solution for relay installation, replacement and maintenance in industrial control systems.
The DIN rail mounting arrangement and three-level screw-terminal construction make the ZMI4SA well suited to industrial automation systems where reliable relay installation and accessible wiring are important. Its plastic hold-down spring helps keep the compatible relay securely seated during normal equipment operation.
Typical Applications
- Industrial relay control panels.
- Machine automation and control systems.
- PLC interface and relay switching circuits.
- Industrial machinery and production equipment.
- Electrical control cabinets and DIN rail assemblies.
- OEM automation and machine-building applications.
