Why Choose the Carlo Gavazzi ZPD11A Relay Socket?

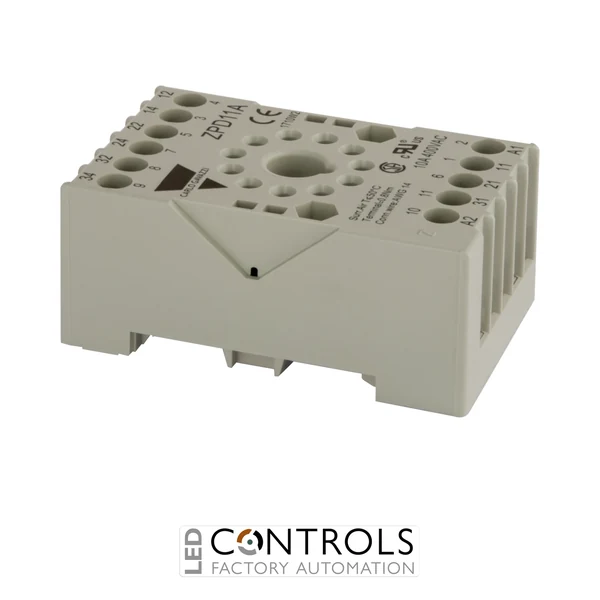

The Carlo Gavazzi ZPD11A is a robust industrial relay socket designed for use with Carlo Gavazzi RCP industrial electromechanical relays. This 11-pole Undecal socket supports 3PDT (three change-over contacts) relay configurations and provides a reliable interface between plug-in relays and industrial control wiring.
The ZPD11A uses screw cage terminals in an aligned position, providing a practical connection arrangement for control-panel wiring. Its construction is designed for dependable electrical connections and straightforward relay installation in industrial automation systems.
Designed for 35 mm DIN rail mounting, the ZPD11A provides a compact relay mounting solution for control panels and automation equipment. The socket measures approximately 61.4 mm wide, 26.2 mm high and 38 mm deep, allowing straightforward integration into suitable electrical assemblies.
Key Advantages
- Purpose-built relay socket for Carlo Gavazzi RCP industrial electromechanical relays.
- 11-pole Undecal connection for compatible 3PDT relay configurations.
- 3PDT / three change-over contact configuration for versatile relay switching applications.
- Screw cage terminals provide secure and practical wiring connections.
- 35 mm DIN rail mounting for straightforward panel installation.
- Compact construction suitable for industrial control and automation systems.
Key Features
- Carlo Gavazzi ZPD relay socket series.
- 11-pole Undecal relay connection.
- 3PDT / three change-over contacts.
- 10 A rated current.
- 400 V AC rated voltage.
- Screw cage terminals in aligned position.
- 35 mm DIN rail mounting.
- Compatible with Carlo Gavazzi RCP industrial electromechanical relays.
Reliable Relay Mounting for Industrial Automation
Relay sockets provide a secure electrical and mechanical interface between plug-in electromechanical relays and control-panel wiring. The Carlo Gavazzi ZPD11A is designed specifically for compatible RCP relays, providing a practical solution for relay installation, replacement and maintenance in industrial control systems.
The DIN rail mounting arrangement and screw cage terminal construction make the ZPD11A well suited to industrial automation systems where reliable relay installation and accessible wiring are important. The socket is also used as the base connection for compatible Carlo Gavazzi plug-in devices, including 11-pin loop detector and level-control applications.
Typical Applications
- Industrial relay control panels.
- Machine automation and control systems.
- PLC interface and relay switching circuits.
- Industrial machinery and production equipment.
- Electrical control cabinets and DIN rail assemblies.
- Carlo Gavazzi loop detector and level-control applications using 11-pin plug-in devices.
