Why Choose the Lovato 7GN3292P Rotary Cam Switch?
The Lovato 7GN3292P is an enclosed 32 A four-pole rotary cam ON/OFF switch designed for dependable manual circuit control in industrial machinery, control systems and electrical installations. As part of the Lovato 7GN rotary cam switch series, it uses switching diagram 92 and incorporates two switching elements for four-pole operation.

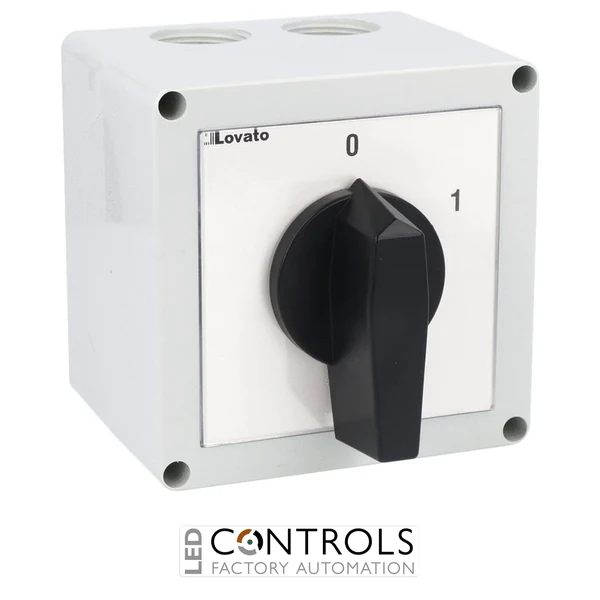

The 7GN3292P uses Lovato's P mounting form and is supplied in a 90 × 90 mm plastic enclosure with a black operating handle. This complete enclosed configuration provides a practical solution for installations requiring a self-contained manual switching device rather than a separate panel-mounted switch assembly.
With an IEC conventional free-air thermal current of 32 A, a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, the 7GN3292P is engineered for robust industrial switching. It also provides IP65 frontal protection and a mechanical life of 5 × 106 cycles for dependable operation in demanding applications.
Key Advantages
- Enclosed four-pole rotary cam ON/OFF switch for industrial applications.
- 32 A IEC conventional free-air thermal current for robust circuit switching.
- Supplied in a 90 × 90 mm plastic enclosure with black handle.
- 690 V rated insulation voltage to IEC/EN requirements.
- IP65 frontal protection for demanding industrial installations.
- Long mechanical life of 5 × 106 operating cycles.
Key Features
- Lovato 7GN rotary cam switch series.
- Four-pole ON/OFF switching with switching diagram 92.
- Two switching elements.
- 32 A conventional free-air thermal current to IEC/EN.
- 690 V rated insulation voltage to IEC/EN.
- 6 kV rated impulse withstand voltage.
- 480 V rated operational voltage.
- P mounting form with plastic enclosure and black handle.
- IP65 frontal protection rating.
Reliable Four-Pole ON/OFF Control
Rotary cam switches provide a direct mechanical method of controlling electrical circuits. Their positive rotary operation gives operators clear manual control, making them suitable for industrial machinery, control systems and electrical installations requiring dependable ON/OFF switching.
The Lovato 7GN3292P combines four-pole switching with a complete enclosed configuration. Its 32 A thermal current rating, two switching elements, black operating handle and 90 × 90 mm plastic enclosure make it a practical solution for machine builders and industrial engineers requiring robust manual circuit control.
Typical Applications
- Industrial machinery and equipment.
- Four-pole manual ON/OFF circuit switching.
- Machine control systems.
- Electrical distribution and control equipment.
- Industrial electrical installations.
- OEM machinery and equipment assemblies.
