Why Choose the Lovato 7GN3292U25 Rotary Cam Switch?
The Lovato 7GN3292U25 is a robust 32 A four-pole rotary cam ON/OFF switch designed for dependable manual switching and isolation in industrial machinery, control panels and electrical equipment. As part of the Lovato 7GN rotary cam switch series, it uses switching diagram 92 and provides four-pole ON/OFF operation for industrial electrical applications.

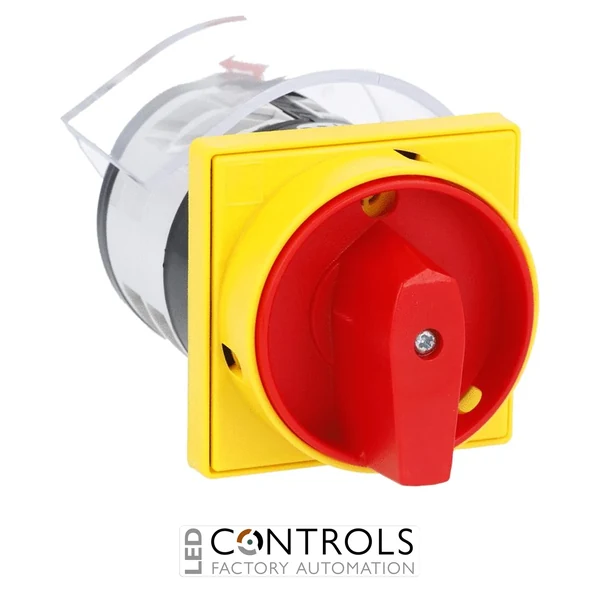

The 7GN3292U25 incorporates two switching elements and uses Lovato's U25 mounting form for front mounting with a red/yellow operating handle. Its 65 × 65 mm front plate provides a compact and clearly identifiable operator interface for integration into electrical control panels, switchboards and machinery.
With an IEC conventional free-air thermal current of 32 A, a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, the 7GN3292U25 is designed for robust industrial switching duties. Its front-mounted configuration and red/yellow handle make it particularly suitable for applications requiring clearly identifiable manual ON/OFF control.
Key Advantages
- Reliable four-pole rotary cam ON/OFF switch for industrial applications.
- 32 A IEC conventional free-air thermal current for robust circuit switching.
- Four-pole operation enables simultaneous switching of four conductors.
- Front mounting with a red/yellow operating handle for clear operator identification.
- Compact 65 × 65 mm front plate for control-panel integration.
- 690 V rated insulation voltage to IEC/EN requirements.
Key Features
- Lovato 7GN rotary cam switch series.
- Four-pole ON/OFF switching with switching diagram 92.
- Two switching elements.
- 32 A conventional free-air thermal current to IEC/EN.
- 690 V rated insulation voltage to IEC/EN.
- 6 kV rated impulse withstand voltage.
- 480 V rated operational voltage.
- U25 mounting form for front mounting with red/yellow handle.
- 65 × 65 mm front plate.
Reliable Four-Pole ON/OFF Control
Rotary cam switches provide a direct mechanical method of controlling electrical circuits. Their positive rotary operation gives operators clear manual control, making them suitable for industrial machinery, switchboards and control panels requiring dependable ON/OFF switching.
The Lovato 7GN3292U25 combines four-pole switching with a compact front-mounted configuration and a clearly identifiable red/yellow operating handle. Its 32 A thermal current rating, two switching elements and 65 × 65 mm front plate make it a practical solution for panel builders, machine manufacturers and industrial engineers requiring reliable manual circuit control.
Typical Applications
- Industrial electrical control panels.
- Four-pole manual ON/OFF circuit switching.
- Machine control and operator panels.
- Industrial machinery and equipment.
- Electrical distribution and control assemblies.
- Panel building and OEM machinery.
