Why Choose the Lovato 7GN4010O98 Rotary Cam Switch?

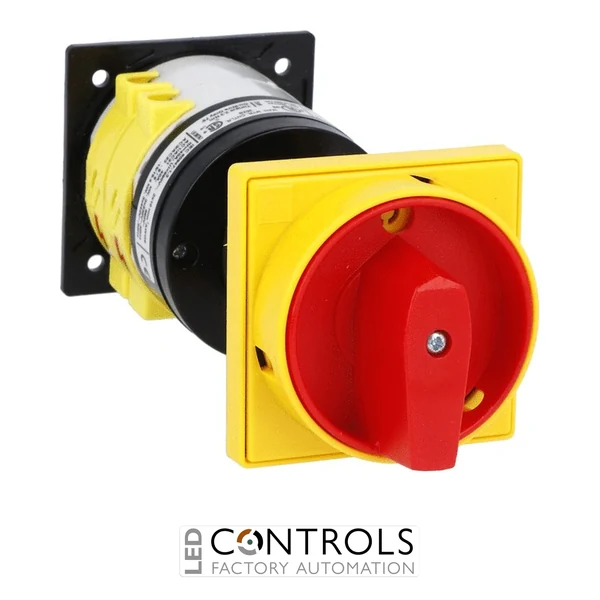

The Lovato 7GN4010O98 is a robust three-pole ON/OFF rotary cam switch designed for reliable switching and isolation in industrial electrical control systems. Part of the Lovato 7GN rotary cam switch series, it uses switching diagram 10 and provides a conventional free air thermal current rating of 40 A.
Designed for rear mounting, the 7GN4010O98 features a red/yellow handle that can be padlocked in the 0 position, together with door coupling and protection covers. This configuration makes it particularly suitable for machinery and electrical panels where a clearly identifiable and lockable control or isolation point is required.
The switch has a 65 × 65 mm front plate and provides IP40 frontal protection. Its electrical characteristics include a rated insulation voltage of 690 V according to IEC/EN, a rated impulse withstand voltage of 6 kV and an AC-1/AC-21A operational current rating of 40 A.
Key Advantages
- Reliable three-pole ON/OFF rotary cam switching for industrial control applications.
- 40 A conventional free air thermal current rating according to IEC/EN.
- Rear-mounted configuration with door coupling for electrical panel installation.
- Red/yellow handle padlockable in the 0 position to support controlled isolation.
- IP40 frontal protection when installed.
- High mechanical endurance of 5 × 106 operating cycles.
Key Features
- Lovato 7GN rotary cam switch series.
- Three-pole ON/OFF switching with switching diagram 10.
- 40 A IEC/EN conventional free air thermal current.
- 690 V IEC/EN rated insulation voltage.
- 6 kV rated impulse withstand voltage.
- Rear mounting with red/yellow handle, door coupling and protection covers.
- Handle padlockable in the 0 position.
- 65 × 65 mm front plate.
Reliable Switching for Industrial Control Panels
Rotary cam switches provide a straightforward mechanical method of controlling and isolating electrical circuits. Their defined switching positions make them well suited to industrial machinery, distribution equipment and control panels where dependable manual switching is required.
The Lovato 7GN4010O98 combines three-pole switching with a rear-mounted door-coupled operating mechanism. Its red/yellow padlockable handle provides clear visual identification at the panel door while allowing the switch to be secured in the 0 position when required.
Typical Applications
- Industrial electrical control panels.
- Machine control and isolation circuits.
- Motor and machinery control systems.
- Electrical distribution equipment.
- OEM machinery and automation panels.
- Door-coupled switching applications requiring a padlockable OFF position.
