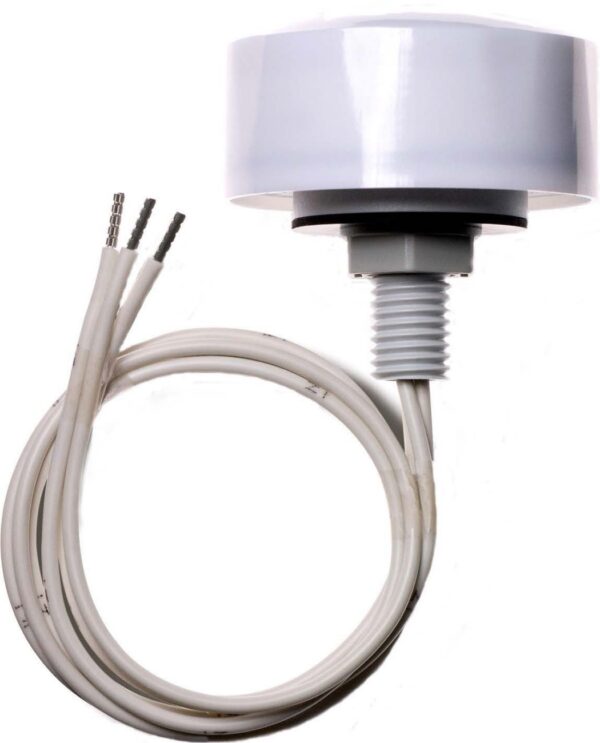

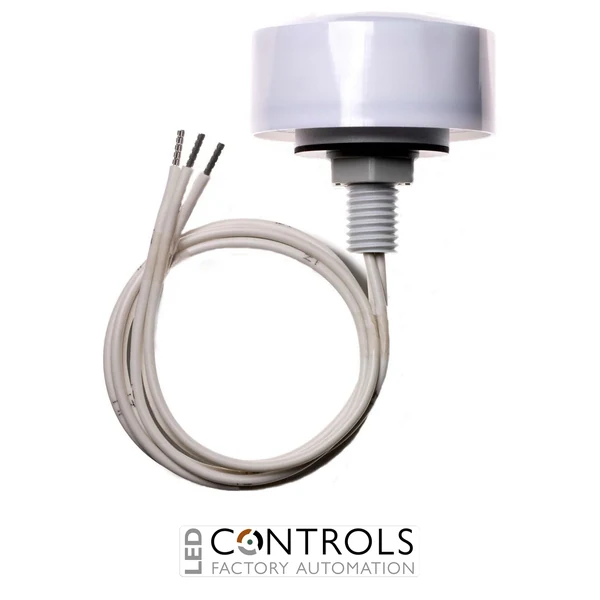

Why Choose the Finder 10.61.8.230.0000 Twilight Switch?
The Finder 10.61.8.230.0000 is a reliable twilight switch designed for automatic lighting control by detecting ambient light levels and switching connected lighting loads according to daylight conditions. Part of the dependable Finder Series 10 light dependent relay range, it provides an efficient solution for outdoor lighting automation and energy-saving installations.
This automatic light control device features an integrated light sensor with fixed sensitivity, enabling reliable switching when surrounding light levels change. Its compact wall-mounted enclosure with IP54 protection makes it suitable for outdoor lighting applications including street lighting, security lighting and building illumination.
With a 230 V AC supply and a 12 A switching capacity at 250 V AC, the Finder 10.61.8.230.0000 is designed for controlling lighting systems where automatic dusk-to-dawn operation and dependable switching are required.
Key Advantages
- Automatic twilight switch for outdoor lighting control.
- 230 V AC supply voltage for standard electrical installations.
- 12 A switching capacity for reliable lighting operation.
- Integrated light sensor for automatic daylight detection.
- IP54 protection rating suitable for external installations.
- Compact design for simple wall-mounted installation.
Key Features
- Finder Series 10.61 twilight switch.
- 230 V AC operating supply.
- SPST-NO output contact.
- 250 V AC / 12 A switching capability.
- Fixed 10 lux sensitivity setting.
- Built-in light sensor.
- 15 s operate time.
- 30 s release time.
- Wall-mounted installation format.
Reliable Automatic Lighting Control
Twilight switches such as the Finder 10.61.8.230.0000 improve energy efficiency by automatically controlling lighting based on ambient light conditions. This allows lighting systems to switch on at dusk and switch off during daylight without manual intervention.
The Finder Series 10 provides practical automation solutions for outdoor and building lighting systems. Its integrated sensor, durable enclosure and reliable switching characteristics allow straightforward integration into modern electrical installations.
Typical Applications
- Street lighting systems.
- Outdoor security lighting.
- Garden and pathway lighting.
- Commercial building illumination.
- Automatic entrance lighting.
- Energy-saving lighting control systems.
