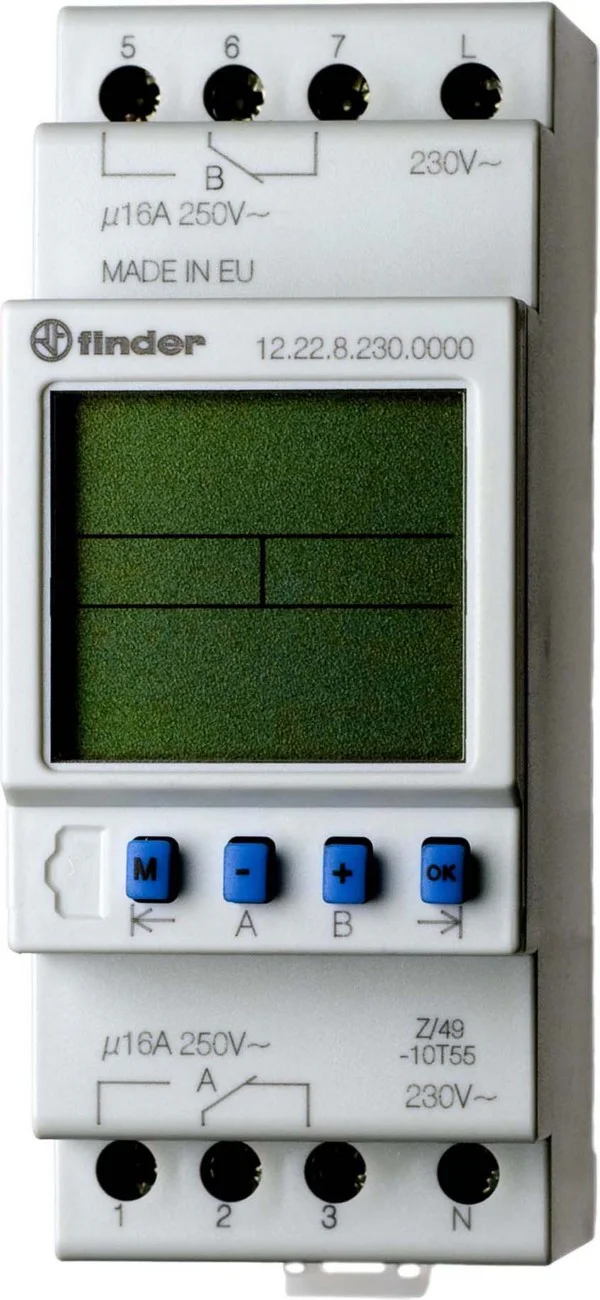

Finder 12.22.8.230.0000 is a 230 V AC two-channel digital weekly time switch with DPDT outputs rated at 16 A at 250 V AC, up to 30 programmed settings and DIN rail mounting.
£120.35
The Finder 12.22.8.230.0000 is a versatile two-channel digital weekly time switch designed for automatic switching of electrical loads according to programmed days and times. As part of the Finder 12 Series, it provides programmable control for lighting, heating, ventilation and other electrical equipment in commercial, residential and industrial installations.
This electronic time switch provides two changeover contacts and weekly programming, enabling two electrical circuits to be controlled from a single DIN rail device. Its LCD display provides clear programming and operating information, while up to 30 programmed settings support flexible ON/OFF scheduling throughout the week.
With a 230 V AC supply and 16 A, 250 V AC output contacts, the 12.22.8.230.0000 is suitable for mains-powered control applications requiring two switched outputs. The unit is designed for DIN rail mounting and uses screw terminals for straightforward connection inside electrical distribution boards and control panels.
Digital time switches such as the Finder 12.22.8.230.0000 automatically switch connected electrical circuits according to stored weekly schedules. By controlling equipment only at programmed times, the device can automate repetitive switching tasks and reduce the need for manual operation.
The two-channel configuration allows separate electrical loads to be controlled from one programmable device. With weekly scheduling, a 1 minute minimum programming interval and up to 30 programmed settings, the Finder 12.22 provides flexible time-based control for building services, lighting and industrial electrical systems.
| Manufacturer | Finder |
|---|---|
| Series | 12 Series |
| Model | 12.22.8.230.0000 |
| Product type | Digital weekly programmable time switch |
| Number of channels | 2 |
| Output configuration | DPDT |
| Output rating | 16 A at 250 V AC |
| Supply voltage | 230 V AC |
| Programming type | Weekly |
| Programming range | 1 minute to 7 days |
| Maximum programmed settings | 30 |
| Display | LCD |
| Backup battery | CR2450 3 V |
| Operating temperature | -30 to +55 °C |
| Protection rating | IP20 |
| Electrical connection | Screw terminals |
| Mounting type | DIN rail mounting |
| Width | 35.8 mm |
The Finder 12.22.8.230.0000 is a two-channel digital weekly time switch used to automatically control electrical circuits according to programmed days and times.
The 12.22.8.230.0000 operates from a 230 V AC supply.
The time switch has a DPDT output configuration, providing two changeover outputs for controlling electrical circuits.
The outputs are rated at 16 A at 250 V AC.
The time switch provides weekly programming from 1 minute to 7 days, with up to 30 programmed ON/OFF settings.
Finder 12 Series time switches provide dependable programmable control for lighting, building services and electrical equipment, combining flexible weekly scheduling with two-channel switching and compact DIN rail installation.{ "@context": "https://schema.org/", "@type": "Product", "name": "Finder 12.22.8.230.0000 Two-Channel Digital Weekly Time Switch 16 A 230 V AC", "sku": "12.22.8.230.0000", "mpn": "12.22.8.230.0000", "brand": { "@type": "Brand", "name": "Finder" }, "category": "Digital Time Switches", "description": "Finder 12.22.8.230.0000 is a 230 V AC two-channel digital weekly time switch with DPDT outputs rated at 16 A at 250 V AC, up to 30 programmed settings and DIN rail mounting.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "230 V AC" }, { "@type": "PropertyValue", "name": "Number of channels", "value": "2" }, { "@type": "PropertyValue", "name": "Output configuration", "value": "DPDT" }, { "@type": "PropertyValue", "name": "Output rating", "value": "16 A at 250 V AC" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Finder 12.22.8.230.0000 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Finder 12.22.8.230.0000 is a two-channel digital weekly time switch used to automatically control electrical circuits according to programmed days and times." } }, { "@type": "Question", "name": "What supply voltage does the Finder 12.22.8.230.0000 require?", "acceptedAnswer": { "@type": "Answer", "text": "The 12.22.8.230.0000 operates from a 230 V AC supply." } }, { "@type": "Question", "name": "How many outputs does the Finder 12.22.8.230.0000 have?", "acceptedAnswer": { "@type": "Answer", "text": "The time switch has a DPDT output configuration, providing two changeover outputs for controlling electrical circuits." } }, { "@type": "Question", "name": "What is the output rating of the Finder 12.22.8.230.0000?", "acceptedAnswer": { "@type": "Answer", "text": "The outputs are rated at 16 A at 250 V AC." } }, { "@type": "Question", "name": "What programming range does the Finder 12.22.8.230.0000 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The time switch provides weekly programming from 1 minute to 7 days, with up to 30 programmed ON/OFF settings." } } ] }
