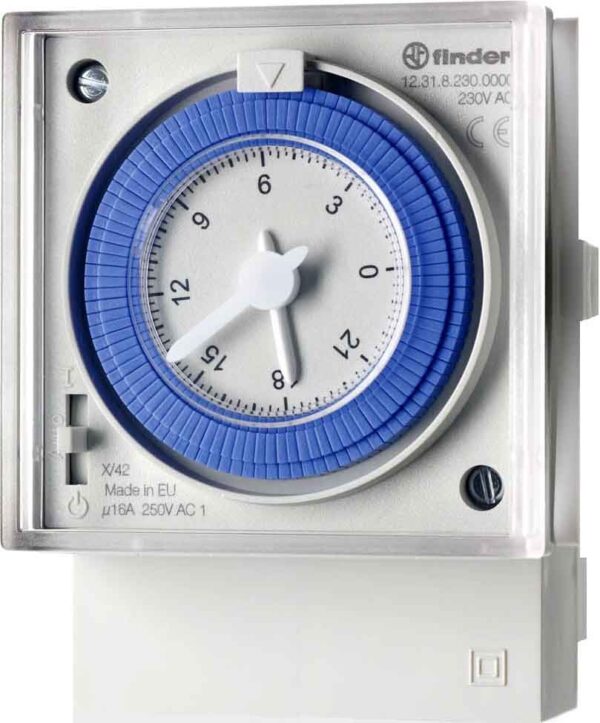

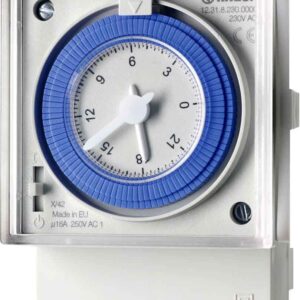

Finder 12.31.8.230.0007 is a 230 V AC analogue weekly time switch with a 16 A SPDT changeover contact, seven-day programming, a 1-hour minimum programming interval and panel mounting.
£88.69
The Finder 12.31.8.230.0007 is a reliable analogue weekly time switch designed for automatic control of electrical loads according to a repeating seven-day programme. As part of the Finder 12 Series, it allows different switching programmes to be configured for each day of the week, making it suitable for lighting, heating, ventilation and other electrical equipment requiring scheduled operation.
This mechanical time switch features 1 CO (SPDT) changeover contact and programming by setting tabs for straightforward configuration. Unlike the daily 12.31 variant, the 12.31.8.230.0007 provides weekly programming with a minimum programmable interval of 1 hour, allowing operating schedules to vary throughout the seven-day cycle.
With a 230 V AC supply and a 16 A output contact at 250 V AC, the 12.31.8.230.0007 is designed for mains-powered time-control applications. Its panel-mounted format, 66 × 66 mm panel cut-out, screw terminals and rechargeable backup battery make it suitable for integration into electrical control panels and building automation systems.
Analogue time switches such as the Finder 12.31.8.230.0007 automatically operate connected electrical circuits according to a repeating weekly schedule. The seven-day programme allows different operating periods to be selected for individual days, providing greater scheduling flexibility than a conventional daily timer.
The Finder 12.31.8.230.0007 combines straightforward mechanical programming with a 1 hour minimum interval, a 16 A changeover contact and rechargeable backup battery. This makes it a practical solution for electrical installations requiring dependable weekly scheduling without the complexity of a digital programming interface.
| Manufacturer | Finder |
|---|---|
| Series | 12 Series |
| Model | 12.31.8.230.0007 |
| Product type | Analogue weekly programmable time switch |
| Number of channels | 1 |
| Contact configuration | 1 CO (SPDT) |
| Output rating | 16 A at 250 V AC |
| Supply voltage | 230 V AC |
| Programming type | Weekly / seven-day |
| Programming range | 60 minutes to 7 days |
| Minimum programming interval | 1 hour |
| Programming method | Setting tabs |
| Backup battery | Ni-MH 1.2 V, 80 mAh rechargeable battery |
| Operating temperature | -10 to +50 °C |
| Protection rating | IP20 |
| Electrical connection | Screw terminals |
| Mounting type | Panel mounting |
| Panel cut-out | 66 × 66 mm |
The Finder 12.31.8.230.0007 is an analogue weekly time switch used to automatically control an electrical circuit according to a repeating seven-day programme.
The 12.31.8.230.0007 operates from a 230 V AC supply.
The time switch provides 1 CO (SPDT) changeover contact rated at 16 A at 250 V AC.
The weekly programme has a minimum programmable interval of 1 hour.
The time switch is designed for panel mounting with a 66 × 66 mm panel cut-out and uses screw terminals for its electrical connections.
Finder 12 Series time switches provide dependable automatic control for lighting, building services and electrical equipment, combining straightforward weekly scheduling with robust switching and practical panel installation.{ "@context": "https://schema.org/", "@type": "Product", "name": "Finder 12.31.8.230.0007 Analogue Weekly Time Switch 16 A 230 V AC", "sku": "12.31.8.230.0007", "mpn": "12.31.8.230.0007", "brand": { "@type": "Brand", "name": "Finder" }, "category": "Time Switches", "description": "Finder 12.31.8.230.0007 is a 230 V AC analogue weekly time switch with a 16 A SPDT changeover contact, seven-day programming, a 1-hour minimum programming interval and panel mounting.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "230 V AC" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "1 CO (SPDT)" }, { "@type": "PropertyValue", "name": "Output rating", "value": "16 A at 250 V AC" }, { "@type": "PropertyValue", "name": "Minimum programming interval", "value": "1 hour" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Finder 12.31.8.230.0007 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Finder 12.31.8.230.0007 is an analogue weekly time switch used to automatically control an electrical circuit according to a repeating seven-day programme." } }, { "@type": "Question", "name": "What supply voltage does the Finder 12.31.8.230.0007 require?", "acceptedAnswer": { "@type": "Answer", "text": "The 12.31.8.230.0007 operates from a 230 V AC supply." } }, { "@type": "Question", "name": "What is the contact rating of the Finder 12.31.8.230.0007?", "acceptedAnswer": { "@type": "Answer", "text": "The time switch provides 1 CO (SPDT) changeover contact rated at 16 A at 250 V AC." } }, { "@type": "Question", "name": "What is the shortest programming interval of the Finder 12.31.8.230.0007?", "acceptedAnswer": { "@type": "Answer", "text": "The weekly programme has a minimum programmable interval of 1 hour." } }, { "@type": "Question", "name": "How is the Finder 12.31.8.230.0007 installed?", "acceptedAnswer": { "@type": "Answer", "text": "The time switch is designed for panel mounting with a 66 × 66 mm panel cut-out and uses screw terminals for its electrical connections." } } ] }
