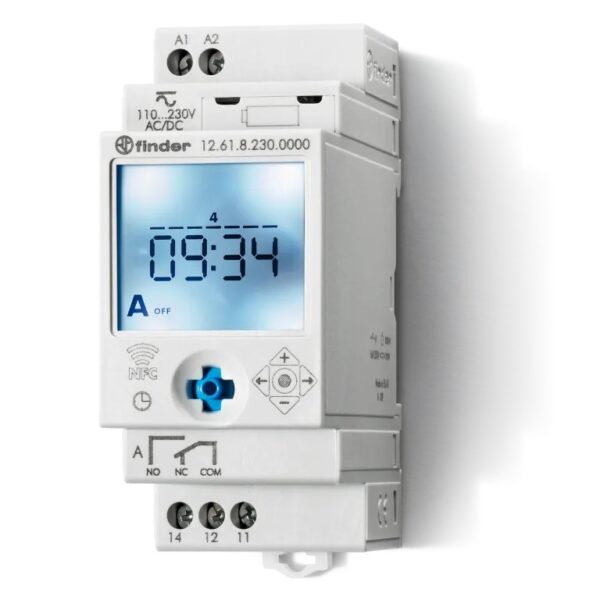

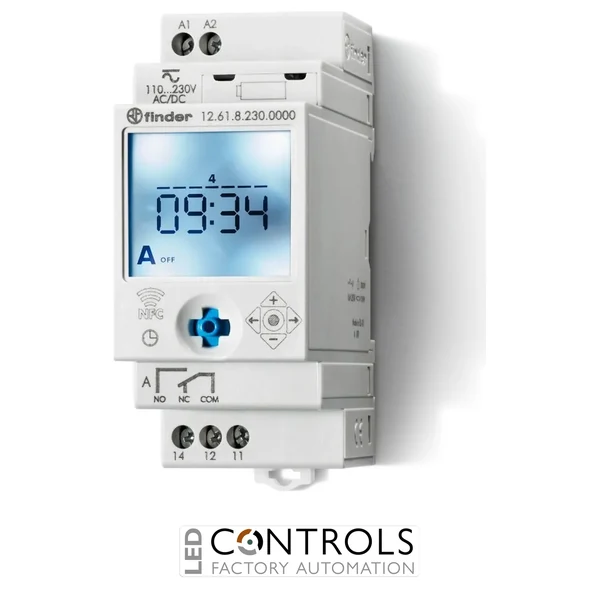

Finder 12.61.0.024.0000 is a 12–24 V AC/DC single-channel digital daily and weekly time switch with a 16 A SPDT changeover contact, up to 50 programmes, NFC programming and DIN rail mounting.
£108.73
The Finder 12.61.0.024.0000 is a versatile single-channel digital daily and weekly time switch designed for automatic control of electrical loads according to programmed schedules. As part of the Finder 12 Series, it combines precise electronic time control with NFC programming, making it suitable for lighting, heating, cooling, irrigation, access control and other automated electrical applications.

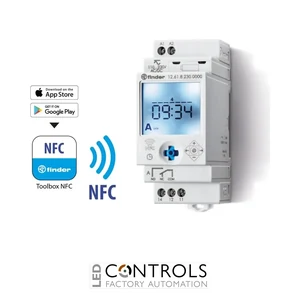

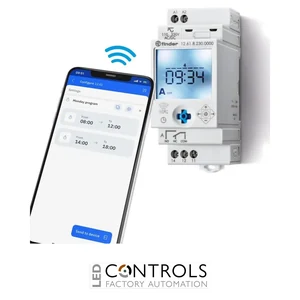

This programmable time switch provides 1 CO (SPDT) changeover contact and supports up to 50 programmes. Programming can be performed in Classic mode using the front joystick or in Smart mode using the Finder Toolbox app and a compatible NFC smartphone, providing a convenient choice between local and mobile configuration.
With a nominal 12–24 V AC/DC supply and a 16 A contact rating at 250 V AC, the 12.61.0.024.0000 is designed for low-voltage control systems requiring dependable scheduled switching. Its DIN rail format, LCD interface and IP20 protection make it well suited to installation within electrical distribution boards and control panels.
Digital time switches such as the Finder 12.61.0.024.0000 automatically operate connected electrical circuits according to stored daily and weekly schedules. This enables equipment to switch at predetermined times, helping automate repetitive control tasks and providing consistent operation without continuous manual intervention.
The Finder 12.61 combines conventional joystick programming with NFC communication through the Finder Toolbox app. With up to 50 programmes, pulse operation and a holiday programme, it provides flexible scheduled control for building services, lighting and industrial electrical systems.
| Manufacturer | Finder |
|---|---|
| Series | 12 Series |
| Model | 12.61.0.024.0000 |
| Product type | Digital daily / weekly programmable time switch |
| Number of channels | 1 |
| Contact configuration | 1 CO (SPDT) |
| Rated contact current | 16 A |
| Rated contact voltage | 250 V AC |
| Rated load AC1 | 4000 VA |
| Rated load AC15 at 230 V AC | 750 VA |
| Incandescent / halogen lamp load at 230 V | 2000 W |
| Fluorescent lamp load at 230 V | 750 W |
| CFL / LED lamp load at 230 V | 400 W |
| Nominal supply voltage | 12–24 V AC/DC |
| Supply operating range | 10–30 V AC/DC |
| AC supply frequency | 50 / 60 Hz |
| AC power consumption | 2.2 VA |
| DC power consumption | 1.2 W |
| Programming type | Daily / weekly |
| Maximum programmes | 50 |
| Pulse duration | 1 second to 59 minutes |
| Programming interface | Joystick / NFC |
| Display | LCD |
| Operating temperature | -20 to +50 °C |
| Protection rating | IP20 |
| Electrical connection | Screw terminals |
| Mounting type | DIN rail mounting |
The Finder 12.61.0.024.0000 is a digital daily and weekly time switch used to automatically control electrical loads according to programmed schedules.
The 12.61.0.024.0000 has a nominal 12–24 V AC/DC supply, with an operating supply range of 10–30 V AC/DC.
The time switch provides 1 CO (SPDT) changeover contact rated at 16 A and 250 V AC.
Yes. The time switch supports NFC communication and can be programmed in Smart mode using the Finder Toolbox app on a compatible smartphone, or in Classic mode using the front joystick.
The time switch supports up to 50 programmes and also provides pulse and holiday programming functions.
Finder 12 Series time switches provide dependable programmable control for lighting, building services and automated electrical equipment, combining flexible daily and weekly scheduling with convenient NFC programming and robust electrical switching.{ "@context": "https://schema.org/", "@type": "Product", "name": "Finder 12.61.0.024.0000 Digital Daily and Weekly Time Switch 16 A 12–24 V AC/DC", "sku": "12.61.0.024.0000", "mpn": "12.61.0.024.0000", "brand": { "@type": "Brand", "name": "Finder" }, "category": "Digital Time Switches", "description": "Finder 12.61.0.024.0000 is a 12–24 V AC/DC single-channel digital daily and weekly time switch with a 16 A SPDT changeover contact, up to 50 programmes, NFC programming and DIN rail mounting.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "12–24 V AC/DC" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "1 CO (SPDT)" }, { "@type": "PropertyValue", "name": "Rated contact current", "value": "16 A at 250 V AC" }, { "@type": "PropertyValue", "name": "Maximum programmes", "value": "50" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Finder 12.61.0.024.0000 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Finder 12.61.0.024.0000 is a digital daily and weekly time switch used to automatically control electrical loads according to programmed schedules." } }, { "@type": "Question", "name": "What supply voltage does the Finder 12.61.0.024.0000 require?", "acceptedAnswer": { "@type": "Answer", "text": "The 12.61.0.024.0000 has a nominal 12–24 V AC/DC supply, with an operating supply range of 10–30 V AC/DC." } }, { "@type": "Question", "name": "What is the contact rating of the Finder 12.61.0.024.0000?", "acceptedAnswer": { "@type": "Answer", "text": "The time switch provides 1 CO (SPDT) changeover contact rated at 16 A and 250 V AC." } }, { "@type": "Question", "name": "Can the Finder 12.61.0.024.0000 be programmed using a smartphone?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The time switch supports NFC communication and can be programmed in Smart mode using the Finder Toolbox app on a compatible smartphone, or in Classic mode using the front joystick." } }, { "@type": "Question", "name": "How many programmes does the Finder 12.61.0.024.0000 support?", "acceptedAnswer": { "@type": "Answer", "text": "The time switch supports up to 50 programmes and also provides pulse and holiday programming functions." } } ] }
