Why Choose the Finder 12.71.8.230.0000 Digital Weekly Time Switch?

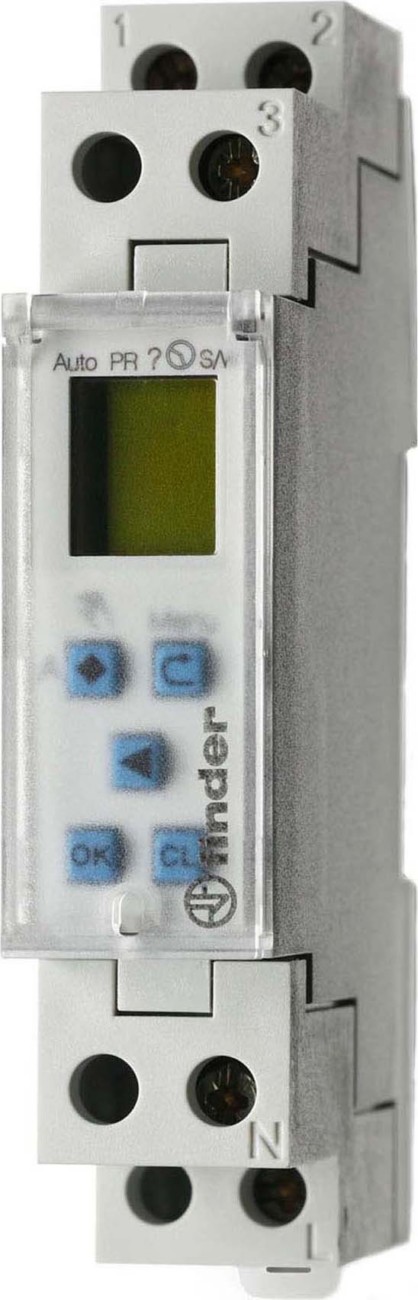

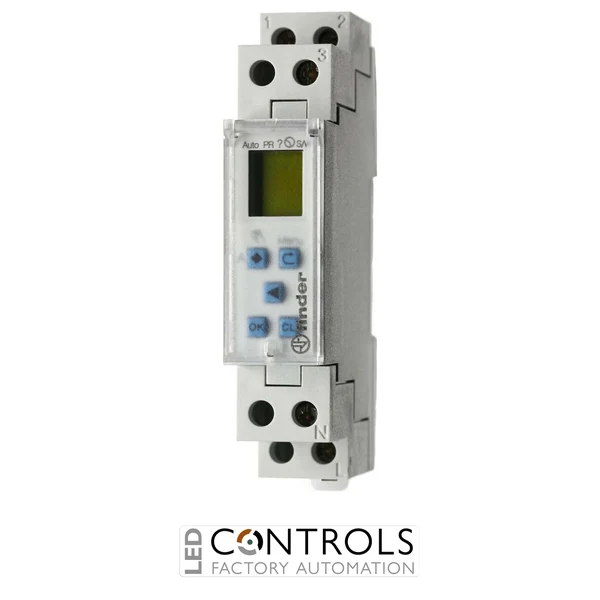

The Finder 12.71.8.230.0000 is a compact and reliable digital weekly time switch designed for automatic control of electrical loads according to programmed days and times. As part of the Finder 12 Series, it combines a space-saving 17.8 mm housing with precise electronic scheduling for lighting, heating, ventilation and other electrical control applications.
This time switch provides 1 CO (SPDT) changeover contact and supports up to 30 weekly switching times. A minimum time interval of 1 minute enables accurate scheduling, while the pulse output function, automatic daylight-saving adjustment and internal battery provide additional flexibility for automated installations.
With a 230 V AC supply and a 16 A contact rating at 250 V AC, the 12.71.8.230.0000 is suitable for mains-powered control applications. Its slim 17.8 mm width and 35 mm DIN rail mounting make efficient use of space inside electrical distribution boards and control panels.
Key Advantages
- Compact digital weekly time switch for automatic electrical load control.
- 17.8 mm wide housing minimises required DIN rail space.
- 1 CO (SPDT) 16 A contact for versatile switching applications.
- 230 V AC supply suitable for mains-powered control installations.
- 1 minute minimum time interval provides precise weekly scheduling.
- Internal battery, pulse output and automatic daylight-saving adjustment provide flexible operation.
Key Features
- Finder 12 Series digital time switch.
- Weekly time programming.
- 1 CO (SPDT) changeover contact.
- 16 A rated contact current.
- 250 V AC rated contact voltage.
- 230 V AC supply voltage.
- Up to 30 switching times.
- 1 minute minimum time interval.
- Pulse output function from 1 second to 59 minutes 59 seconds.
- Automatic adjustment for daylight saving.
- Internal battery for set-up without the supply connected.
- 17.8 mm wide with 35 mm DIN rail mounting.
Reliable Weekly Time Control for Electrical Installations
Digital time switches such as the Finder 12.71.8.230.0000 automatically operate connected electrical circuits according to stored weekly schedules. This enables equipment to switch at predetermined days and times, reducing repetitive manual operation and providing consistent time-based control.
The Finder 12.71 combines 30 switching times with a 1 minute minimum interval, pulse output functionality and automatic daylight-saving adjustment. Its internal battery allows set-up without the supply connected, while the slim 17.8 mm DIN rail format helps conserve valuable space inside electrical panels.
Typical Applications
- Automatic lighting control.
- Heating and ventilation scheduling.
- Building services and electrical distribution systems.
- Irrigation and watering systems.
- Commercial equipment scheduling.
- Industrial electrical control applications.
