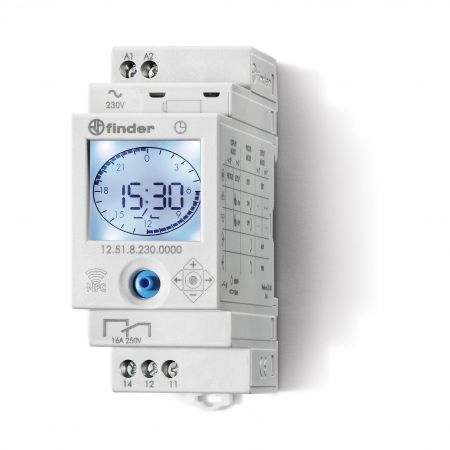

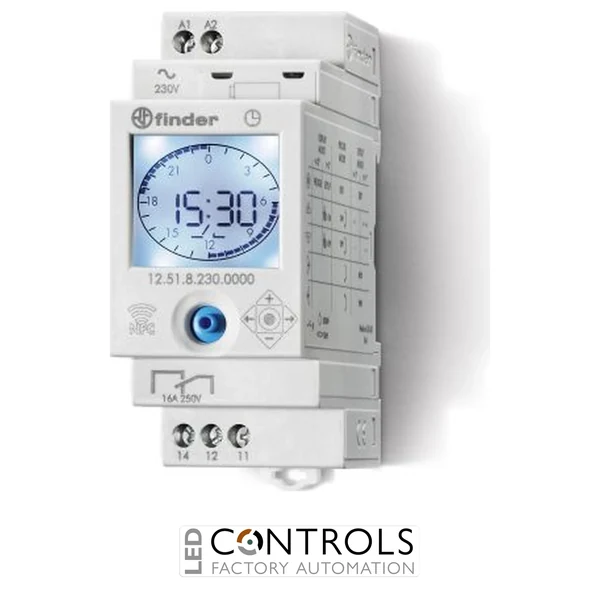

Finder 12.A1.8.230.0000 is a 110–230 V AC/DC single-channel weekly astronomical digital time switch with a 16 A SPDT output, sunrise and sunset control, pulse and holiday functions, NFC programming and DIN rail mounting.
£100.55
The Finder 12.A1.8.230.0000 is an advanced single-channel weekly astronomical digital time switch designed for automatic control of electrical loads according to programmed schedules and calculated sunrise and sunset times. As part of the Finder 12 Series SMARTimer range, it combines conventional weekly time programming with astronomical functions for lighting, building services and other applications that need to follow seasonal changes in daylight.
This programmable time switch provides a SPDT changeover output and supports ON/OFF, pulse, Astro ON and Astro OFF functions. Sunrise and sunset times are calculated according to geographical location, while an astronomical offset allows switching to be advanced or delayed around the calculated times for greater control flexibility.
With a 110–230 V AC/DC supply and a 16 A output rating at 250 V AC, the 12.A1.8.230.0000 is suitable for a wide range of control installations. NFC functionality enables convenient smartphone programming, while its LCD display, screw terminals and DIN rail mounting provide straightforward configuration and installation inside electrical distribution boards and control panels.
Astronomical time switches such as the Finder 12.A1.8.230.0000 calculate sunrise and sunset according to geographical location, allowing connected equipment to follow seasonal changes in daylight automatically. This makes astronomical switching particularly useful for outdoor lighting and other applications where fixed switching times would otherwise require regular adjustment throughout the year.
The Finder 12.A1 combines astronomical operation with conventional weekly ON/OFF programming, pulse control and a holiday programme. Its adjustable astronomical offset enables switching to occur before or after calculated sunrise and sunset, while NFC functionality simplifies configuration and programme management using a compatible smartphone.
| Manufacturer | Finder |
|---|---|
| Series | 12 Series SMARTimer |
| Model | 12.A1.8.230.0000 |
| Product type | Weekly astronomical digital time switch |
| Number of channels | 1 |
| Contact configuration | SPDT |
| Output rating | 16 A at 250 V AC |
| Supply voltage | 110–230 V AC/DC |
| Programming type | Weekly / astronomical |
| Functions | ON/OFF, pulse, Astro ON, Astro OFF, holiday programme |
| Pulse duration | 1 second to 59 minutes |
| Astronomical offset | Up to ±90 minutes in 1 minute steps |
| Display | LCD |
| Programming interface | NFC |
| Operating temperature | -20 to +50 °C |
| Protection rating | IP20 |
| Electrical connection | Screw terminals |
| Mounting type | DIN rail mounting |
The Finder 12.A1.8.230.0000 is a weekly astronomical digital time switch used to control electrical loads according to programmed schedules and calculated sunrise and sunset times.
The 12.A1.8.230.0000 operates from a 110–230 V AC/DC supply.
The time switch provides an SPDT changeover output rated at 16 A and 250 V AC.
The time switch provides Astro ON and Astro OFF functions based on calculated sunrise and sunset times, with an offset of up to 90 minutes before or after the astronomical event in 1 minute steps.
Yes. The 12.A1.8.230.0000 includes NFC functionality for convenient programming using a compatible smartphone.
Finder 12 Series SMARTimer astronomical time switches provide dependable automatic control for lighting and electrical equipment, combining weekly scheduling with sunrise and sunset calculation, flexible switching functions and convenient NFC programming.{ "@context": "https://schema.org/", "@type": "Product", "name": "Finder 12.A1.8.230.0000 SMARTimer Astronomical Time Switch 16 A 110–230 V AC/DC", "sku": "12.A1.8.230.0000", "mpn": "12.A1.8.230.0000", "brand": { "@type": "Brand", "name": "Finder" }, "category": "Astronomical Time Switches", "description": "Finder 12.A1.8.230.0000 is a 110–230 V AC/DC single-channel weekly astronomical digital time switch with a 16 A SPDT output, sunrise and sunset control, pulse and holiday functions, NFC programming and DIN rail mounting.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "110–230 V AC/DC" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "SPDT" }, { "@type": "PropertyValue", "name": "Output rating", "value": "16 A at 250 V AC" }, { "@type": "PropertyValue", "name": "Programming", "value": "Weekly / astronomical / NFC" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Finder 12.A1.8.230.0000 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Finder 12.A1.8.230.0000 is a weekly astronomical digital time switch used to control electrical loads according to programmed schedules and calculated sunrise and sunset times." } }, { "@type": "Question", "name": "What supply voltage does the Finder 12.A1.8.230.0000 require?", "acceptedAnswer": { "@type": "Answer", "text": "The 12.A1.8.230.0000 operates from a 110–230 V AC/DC supply." } }, { "@type": "Question", "name": "What is the output rating of the Finder 12.A1.8.230.0000?", "acceptedAnswer": { "@type": "Answer", "text": "The time switch provides an SPDT changeover output rated at 16 A and 250 V AC." } }, { "@type": "Question", "name": "What astronomical functions does the Finder 12.A1.8.230.0000 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The time switch provides Astro ON and Astro OFF functions based on calculated sunrise and sunset times, with an offset of up to 90 minutes before or after the astronomical event in 1 minute steps." } }, { "@type": "Question", "name": "Can the Finder 12.A1.8.230.0000 be programmed using a smartphone?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The 12.A1.8.230.0000 includes NFC functionality for convenient programming using a compatible smartphone." } } ] }
