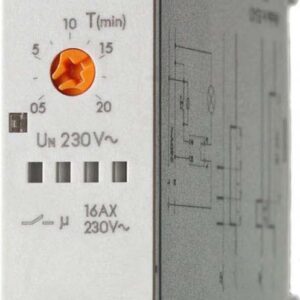

Finder 14.91.8.230.0000 is a 230 V AC monofunction electronic staircase timer with an adjustable 0.5–20 minute timing range, a 1NO 16 A output contact and DIN-rail mounting.
£46.95
The Finder 14.91.8.230.0000 is a compact monofunction electronic staircase timer from the Finder 14 Series, designed for timed lighting control in staircases, corridors and similar building applications. It provides automatic delayed switch-off after activation, helping ensure lighting remains on only for the required period.
The timer operates from a 230 V AC, 50/60 Hz supply and provides a 1NO contact rated at 16 A at 230 V AC. Its adjustable timing range of 0.5–20 min allows the lighting period to be set to suit the installation, while compatibility with 3-wire and 4-wire systems provides flexibility for new installations and retrofit projects.
With a compact 17.5 mm modular width, DIN-rail mounting and IP20 protection, the 14.91.8.230.0000 is designed for installation inside electrical distribution boards. Zero-crossing switching helps reduce electrical stress on compatible lamp loads, while the timer supports incandescent and 230 V CFL/LED lighting loads within the manufacturer's specified ratings.
Electronic staircase timers such as the Finder 14.91 provide automatic timed control of lighting after a pushbutton command. Once activated, the connected lighting remains energised for the selected period before being switched off automatically, helping avoid lights being left on unnecessarily in communal and circulation areas.
The 14.91.8.230.0000 is suitable for both 3-wire and 4-wire installations, making it useful for new projects as well as the replacement of existing staircase-lighting timers. Its adjustable 0.5–20 min timing range and 16 A output contact provide flexible control for a variety of compatible lighting loads.
| Manufacturer | Finder |
|---|---|
| Series | 14 Series |
| Model | 14.91.8.230.0000 |
| Product type | Electronic staircase timer |
| Function | Delayed switch-off |
| Supply voltage | 230 V AC |
| Supply frequency | 50 / 60 Hz |
| Minimum operating voltage | 184 V AC |
| Maximum operating voltage | 253 V AC |
| Contact configuration | 1NO (SPST-NO) |
| Rated contact current | 16 A at 230 V AC |
| AC1 switching capacity | 3700 VA |
| AC15 switching capacity | 750 VA at 230 V AC |
| Incandescent lamp load | 3000 W at 230 V AC |
| CFL / LED lamp load | 600 W at 230 V AC |
| Timing range | 0.5–20 min |
| Wiring | 3-wire or 4-wire |
| Operating temperature | -10 °C to +60 °C |
| Protection rating | IP20 |
| Mounting type | 35 mm DIN rail according to EN 60715 |
| Module width | 17.5 mm |
The Finder 14.91.8.230.0000 is an electronic staircase timer used to keep connected lighting switched on for a preset period after activation before automatically switching it off.
The staircase timer has an adjustable timing range of 0.5–20 min.
The timer operates from a 230 V AC, 50/60 Hz supply, with an operating voltage range of 184–253 V AC.
The timer provides one normally open contact rated at 16 A at 230 V AC, with an AC1 switching capacity of 3700 VA.
Yes. The Finder 14.91.8.230.0000 is designed for use with both 3-wire and 4-wire staircase-lighting installations.
