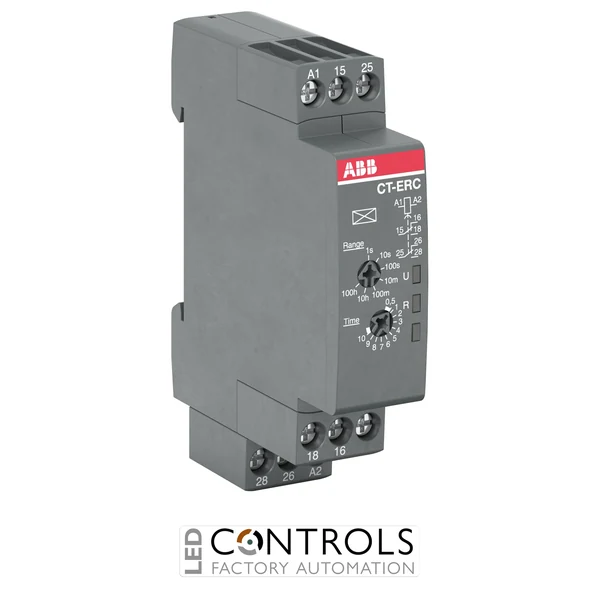

Why Choose the ABB CT-ERC.22 Time Relay?
The ABB CT-ERC.22 is a compact and reliable electronic ON-delay time relay designed for precise timing and sequencing in industrial control and automation systems. As part of the established ABB CT-C timer relay range, it provides dependable delay-on-make operation for control panels, machinery and electrical automation applications.
This single-function timer relay provides seven selectable time ranges covering 0.05 s to 100 h, allowing the required delay to be set accurately for a wide range of control applications. Its front-mounted adjustment controls and LED status indication simplify commissioning, operation and troubleshooting.
With a rated control supply voltage of 24–48 V DC or 24–240 V AC and two changeover relay outputs, the CT-ERC.22 provides flexible switching capability for industrial control circuits. Its compact 17.5 mm wide housing is well suited to installations where control panel space is limited.
Key Advantages
- Compact ON-delay electronic time relay for industrial automation applications.
- Seven selectable time ranges from 0.05 s to 100 h.
- 24–48 V DC or 24–240 V AC control supply for flexible installation.
- Two changeover (2 c/o) relay outputs for versatile switching applications.
- Adjustable timing with direct-reading scales for straightforward configuration.
- Front-facing LED status indication assists commissioning and troubleshooting.
Key Features
- ABB CT-C timer relay range.
- ON-delay (delay-on-make) timing function.
- 2 c/o (SPDT) relay outputs.
- 24–48 V DC / 24–240 V AC rated control supply.
- 0.05 s to 100 h time range across seven selectable ranges.
- 250 V / 4 A contact rating.
- Front-mounted time range and delay adjustment controls.
- LED indicators for operating status.
- Compact 17.5 mm wide housing for space-efficient control panels.
Reliable Timing for Industrial Automation
Time relays such as the ABB CT-ERC.22 provide controlled delays within electrical automation systems. The ON-delay function introduces a defined delay after the control signal is applied before the relay outputs change state, helping coordinate contactors, motors, valves, indicators and other control equipment.
The CT-C range is designed for practical industrial control applications where accurate and repeatable timing is required. The CT-ERC.22 combines selectable time ranges, adjustable delay settings and clearly visible status indication in a compact housing suitable for control cabinets and electrical distribution equipment.
Typical Applications
- Industrial automation and control panels.
- Motor and contactor sequencing systems.
- Machine control and production equipment.
- Delayed switching of valves and actuators.
- Lighting and signalling control systems.
- Process control and electrical sequencing applications.
