Why Choose the ABB CT-VWC.12 Time Relay?

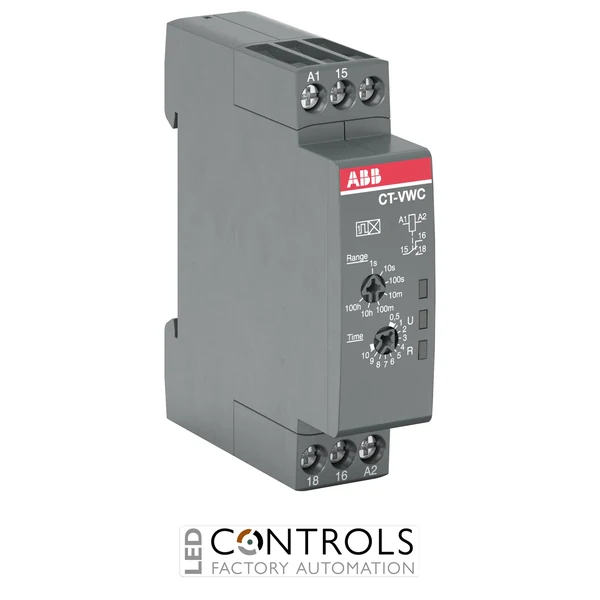

The ABB CT-VWC.12 is a compact and reliable electronic impulse-ON time relay designed for precise timing and sequencing in industrial control and automation systems. As part of the established ABB CT-C timer relay range, it provides a defined output pulse when the control signal is applied, making it suitable for machinery, control panels and electrical automation applications.
This single-function timer relay provides seven selectable time ranges from 0.05 s to 100 h, allowing the required impulse duration to be configured for a wide range of control applications. Its compact design, front-mounted adjustment controls and clear operating characteristics simplify installation, commissioning and operation.
With a rated control supply voltage of 24–48 V DC or 24–240 V AC and one changeover relay output, the CT-VWC.12 provides flexible switching capability for industrial control circuits. Its compact 17.5 mm wide housing is well suited to installations where control panel space is limited.
Key Advantages
- Compact impulse-ON electronic time relay for industrial automation applications.
- Seven selectable time ranges from 0.05 s to 100 h.
- 24–48 V DC or 24–240 V AC control supply for flexible installation.
- One changeover (1 c/o) relay output for versatile switching applications.
- Adjustable impulse timing for straightforward configuration of control sequences.
- Compact 17.5 mm wide housing for space-efficient control panels.
Key Features
- ABB CT-C timer relay range.
- Impulse-ON (interval) timing function.
- 1 c/o (SPDT) relay output.
- 24–48 V DC / 24–240 V AC rated control supply.
- 0.05 s to 100 h time range across seven selectable ranges.
- 250 V / 4 A rated output contact.
- DIN rail mounting for straightforward control panel installation.
- Compact housing with screw terminals for industrial wiring.
- Operating status indication for practical commissioning and monitoring.
Reliable Timing for Industrial Automation
Time relays such as the ABB CT-VWC.12 provide controlled timing functions within electrical automation systems. The impulse-ON function generates a timed output interval when the control signal is applied, allowing connected equipment to be activated for a defined period without requiring continuous switching of the relay output.
The CT-C range is designed for practical industrial control applications where accurate and repeatable timing is required. The CT-VWC.12 combines selectable time ranges, adjustable impulse duration and a compact DIN rail-mounted housing for straightforward integration into control cabinets and electrical automation systems.
Typical Applications
- Industrial automation and control panels.
- Motor and contactor sequencing systems.
- Machine control and production equipment.
- Timed operation of valves and actuators.
- Lighting and signalling control systems.
- Process control and electrical sequencing applications.
