Why Choose the ABB CT-WBS.22S Impulse & Flasher Timer?

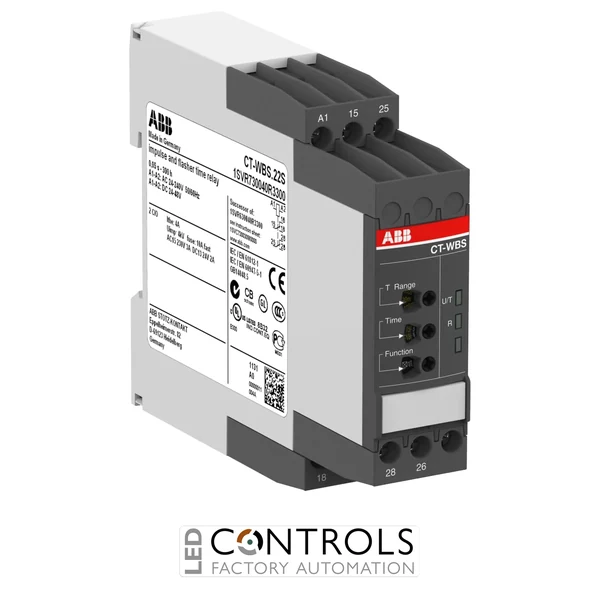

The ABB CT-WBS.22S is an electronic impulse and flasher time relay from the ABB CT-S timer range, designed to provide flexible timing and switching functions for industrial automation and control systems. It combines 7 selectable timing functions with two changeover relay outputs, providing a versatile solution for timed switching, pulse generation and flashing applications.
The CT-WBS.22S provides 10 selectable time ranges from 0.05 s to 300 h and operates from a rated control supply of 24–48 V DC / 24–240 V AC. Its front-face operating controls allow precise adjustment of the selected timing function, while two LEDs provide indication of operational states.
The timer features 2 c/o (SPDT) relay contacts rated at 250 V / 4 A. The CT-WBS.22S uses screw connection technology with double-chamber cage terminals and a compact 22.5 mm wide housing designed for DIN rail installation in industrial control panels.
Key Advantages
- Flexible impulse and flasher electronic time relay for industrial automation.
- 7 selectable timing functions in one compact device.
- 10 time ranges from 0.05 s to 300 h.
- Wide control supply range of 24–48 V DC / 24–240 V AC.
- 2 c/o (SPDT) relay outputs for flexible switching.
- 250 V / 4 A rated relay contacts.
- Precise timing adjustment using front-face operating controls.
- Two LEDs for clear indication of operational states.
- Compact 22.5 mm wide DIN rail housing.
- Screw connection technology with double-chamber cage terminals.
Key Features
- ABB CT-S timer range.
- 7 timing functions: flasher starting with ON, flasher starting with OFF, impulse-ON, ON-delay, fixed impulse with adjustable time delay, adjustable impulse with fixed time delay and ON/OFF function.
- 10 selectable time ranges from 0.05 s to 300 h.
- 24–48 V DC / 24–240 V AC rated control supply.
- 2 c/o (SPDT) contacts.
- 250 V / 4 A rated relay contacts.
- Front-face operating controls for precise timing adjustment.
- Two LEDs for operational status indication.
- Screw connection technology with double-chamber cage connection terminals.
- Tool-free mounting and removal from DIN rail.
- UL 94 V-0 housing material for high fire protection classification.
- Sealable transparent cover available as an accessory to help prevent unauthorised adjustments.
Impulse and Flasher Timing for Industrial Automation
The ABB CT-WBS.22S provides dedicated impulse, flasher and delay functions within a single compact control device. Its selectable functions include flasher operation starting with ON or OFF, impulse-ON, ON-delay, fixed impulse with adjustable time delay, adjustable impulse with fixed time delay and ON/OFF operation.
With ten selectable time ranges covering 0.05 s to 300 h, the CT-WBS.22S can accommodate both short switching sequences and extended industrial timing requirements. Its two changeover relay outputs provide flexible interfacing with contactors, control circuits, signalling equipment and other automation components.
Typical Applications
- Industrial automation and control panels.
- Flashing and signalling circuits.
- Impulse switching applications.
- Machine sequencing and timed control.
- Motor control applications.
- Conveyor and production machinery control.
- Process automation and equipment sequencing.
- Timed lighting and signalling systems.
- Applications requiring adjustable impulse or flasher timing.
