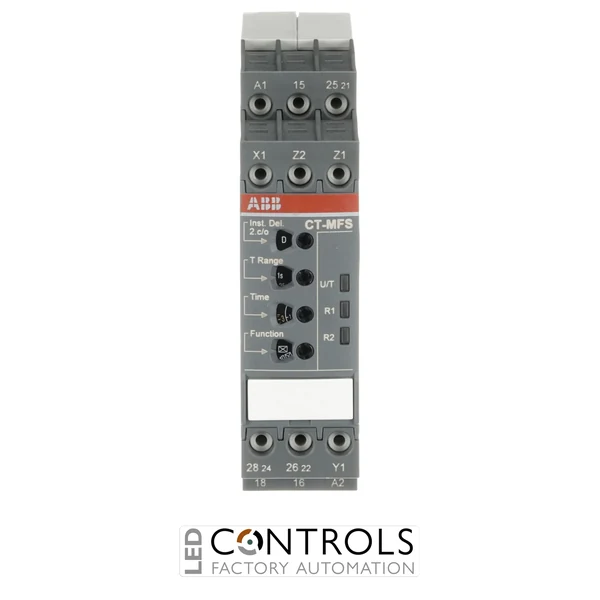

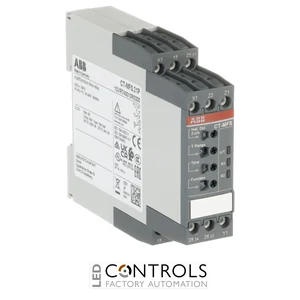

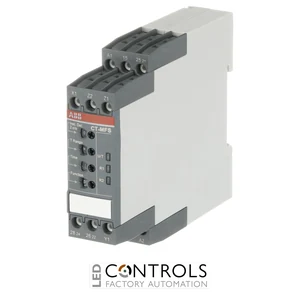

Why Choose the ABB CT-MFS.21P Multifunction Timer Relay?
The ABB CT-MFS.21P is a compact and versatile multifunction electronic timer relay designed for precise timing and switching control in industrial automation, electrical control and machine systems. As part of the ABB CT-S timer relay range, it provides 10 selectable timing functions, 10 time ranges and two changeover outputs for flexible control applications.
The CT-MFS.21P provides 10 timing functions with selectable ranges from 0.05 s to 300 h. Two control inputs support volt-free triggering, while the second changeover contact can be selected as an instantaneous contact. A remote potentiometer can also be connected for fine adjustment of the time delay.
With a rated control supply voltage of 24–240 V AC/DC and 2 C/O (SPDT) output contacts rated at 250 V / 4 A, the CT-MFS.21P provides flexible timing and switching control in industrial automation and control panels. Its compact 22.5 mm housing with maintenance-free push-in terminals is designed for straightforward DIN-rail installation.
Key Advantages
- Versatile multifunction timer relay for industrial automation applications.
- 10 selectable timing functions for flexible control sequences.
- 10 time ranges from 0.05 s to 300 h for precise timing adjustment.
- 24–240 V AC/DC control supply for versatile installation.
- 2 C/O (SPDT) output contacts rated at 250 V / 4 A.
- Volt-free control inputs and optional remote potentiometer connection.
- Maintenance-free Easy Connect push-in terminals for fast installation.
Key Features
- ABB CT-S timer relay range.
- Multifunction electronic timer relay.
- 10 timing functions.
- 10 selectable time ranges from 0.05 s to 300 h.
- 2 C/O (SPDT) output contacts.
- 24–240 V AC/DC rated control supply.
- Two control inputs with volt-free (floating) triggering.
- Second changeover contact selectable as an instantaneous contact.
- Remote potentiometer connection for fine adjustment of the time delay.
- Maintenance-free Easy Connect Technology with push-in terminals.
- Status indication using front-face LEDs.
- Compact DIN-rail mounting design.
Flexible Timing Control for Industrial Automation
Multifunction timer relays such as the ABB CT-MFS.21P provide configurable timing sequences within electrical control and automation systems. By offering multiple timing functions and selectable time ranges, the relay can be configured for different switching and delay requirements without requiring separate timer relay types for each application.
The CT-MFS.21P combines flexible timing adjustment with two changeover outputs, volt-free control inputs and an optional remote potentiometer connection. Its compact DIN-rail format and push-in terminals allow straightforward integration into modern industrial control panels and automation systems.
Typical Applications
- Industrial automation and control panels.
- Machine control and sequencing systems.
- Motor control and switching applications.
- Conveyor and material handling equipment.
- Pumps, fans and ventilation systems.
- Production and process machinery.
- Control systems requiring configurable timing functions.
