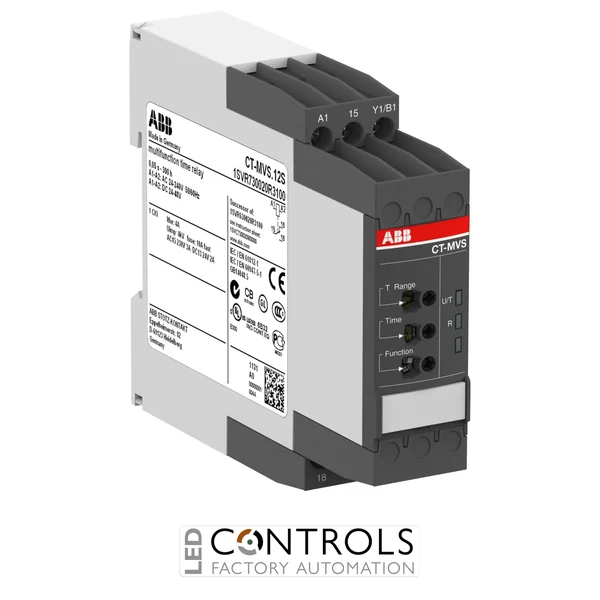

Why Choose the ABB CT-MVS.12P Multifunction Timer Relay?
The ABB CT-MVS.12P is a compact and versatile multifunction electronic timer relay designed for precise timing and switching control in industrial automation, electrical control and machine systems. As part of the ABB CT-S timer relay range, it provides 10 selectable timing functions, 10 time ranges and one changeover output for flexible control applications.
The CT-MVS.12P provides 10 timing functions with selectable ranges from 0.05 s to 300 h. Its voltage-related control input can be used to start or control the timing sequence, while front-face operating controls allow precise adjustment of the selected time range and delay.
With a rated control supply voltage of 24–48 V DC / 24–240 V AC and a 1 C/O (SPDT) output contact rated at 250 V / 4 A, the CT-MVS.12P provides flexible timing and switching control in industrial automation and control panels. Its compact 22.5 mm housing with maintenance-free Easy Connect push-in terminals is designed for straightforward DIN-rail installation.
Key Advantages
- Versatile multifunction timer relay for industrial automation applications.
- 10 selectable timing functions for flexible control sequences.
- 10 time ranges from 0.05 s to 300 h for precise timing adjustment.
- 24–48 V DC / 24–240 V AC rated control supply for versatile installation.
- 1 C/O (SPDT) output contact rated at 250 V / 4 A.
- Voltage-related, non-floating control input for timing control.
- Precise front-face adjustment of the selected timing range.
- Maintenance-free Easy Connect push-in terminals for fast installation.
Key Features
- ABB CT-S timer relay range.
- Multifunction electronic timer relay.
- 10 timing functions.
- 10 selectable time ranges from 0.05 s to 300 h.
- 1 C/O (SPDT) output contact.
- 24–48 V DC / 24–240 V AC rated control supply.
- Voltage-related, non-floating control input.
- Precise front-face operating controls.
- Maintenance-free Easy Connect Technology with push-in terminals.
- Two LEDs for clear indication of operational states.
- Compact DIN-rail mounting design.
- Sealable transparent cover available as an accessory.
Flexible Timing Control for Industrial Automation
Multifunction timer relays such as the ABB CT-MVS.12P provide configurable timing sequences within electrical control and automation systems. By offering multiple timing functions and selectable time ranges, the relay can be configured for different switching, delay and pulse requirements without requiring separate timer relay types for each application.
The CT-MVS.12P combines flexible timing adjustment with a 1 C/O changeover output and a voltage-related control input. Its compact DIN-rail format, front-face adjustment controls and maintenance-free push-in terminals allow straightforward integration into modern industrial control panels and automation systems.
Typical Applications
- Industrial automation and control panels.
- Machine control and sequencing systems.
- Motor control and switching applications.
- Conveyor and material handling equipment.
- Pumps, fans and ventilation systems.
- Production and process machinery.
- Control systems requiring configurable timing functions.
- Applications requiring adjustable delay, pulse or flashing sequences.
