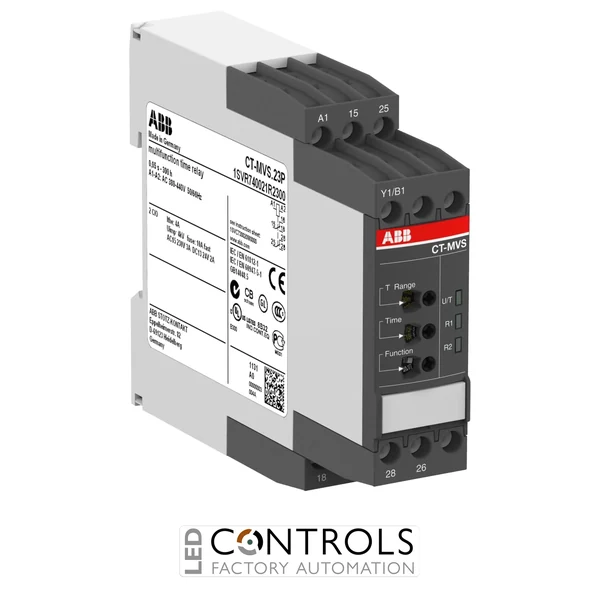

Why Choose the ABB CT-MVS.23P Multifunction Timer Relay?
The ABB CT-MVS.23P is a compact and versatile multifunction electronic timer relay designed for precise timing and switching control in industrial automation, electrical control and machine systems. As part of the ABB CT-S timer relay range, it provides 10 selectable timing functions, 10 time ranges and two changeover outputs for flexible control applications.
The CT-MVS.23P provides 10 timing functions with selectable ranges from 0.05 s to 300 h. Its voltage-related control input provides reliable triggering of the timing sequence, while the timer's front controls allow adjustment of the selected time range and delay. The relay is designed specifically for applications using a 380–440 V AC control supply.
With a rated control supply voltage of 380–440 V AC and 2 C/O (SPDT) output contacts rated at 250 V / 4 A, the CT-MVS.23P provides flexible timing and switching control in industrial automation and control panels. Its compact 22.5 mm housing with maintenance-free Easy Connect push-in terminals is designed for straightforward DIN-rail installation.
Key Advantages
- Versatile multifunction timer relay for industrial automation applications.
- 10 selectable timing functions for flexible control sequences.
- 10 time ranges from 0.05 s to 300 h for precise timing adjustment.
- 380–440 V AC rated control supply for high-voltage control applications.
- 2 C/O (SPDT) output contacts rated at 250 V / 4 A.
- Voltage-related, non-floating control input for reliable timing activation.
- Maintenance-free Easy Connect push-in terminals for fast installation.
- Compact 22.5 mm DIN-rail housing for space-efficient control panels.
Key Features
- ABB CT-S timer relay range.
- Multifunction electronic timer relay.
- 10 timing functions.
- 10 selectable time ranges from 0.05 s to 300 h.
- 2 C/O (SPDT) output contacts.
- 380–440 V AC rated control supply.
- Voltage-related, non-floating control input.
- Maintenance-free Easy Connect Technology with push-in terminals.
- Two LEDs for clear operating status indication.
- Compact DIN-rail mounting design.
- Sealable transparent cover available as an accessory.
- Suitable for industrial automation, machine control and electrical control systems.
Flexible Timing Control for Industrial Automation
Multifunction timer relays such as the ABB CT-MVS.23P provide configurable timing sequences within electrical control and automation systems. By offering multiple timing functions and selectable time ranges, the relay can be configured for different switching, delay and pulse requirements without requiring separate timer relay types for each application.
The CT-MVS.23P combines flexible timing adjustment with two changeover outputs and a voltage-related control input. Its compact DIN-rail format, high-voltage 380–440 V AC control supply and maintenance-free push-in terminals allow straightforward integration into industrial control panels and automation systems.
Typical Applications
- Industrial automation and control panels.
- Machine control and sequencing systems.
- Motor control and switching applications.
- Conveyor and material handling equipment.
- Pumps, fans and ventilation systems.
- Production and process machinery.
- Control systems requiring configurable timing functions.
- Applications requiring adjustable delay, pulse or switching sequences.
