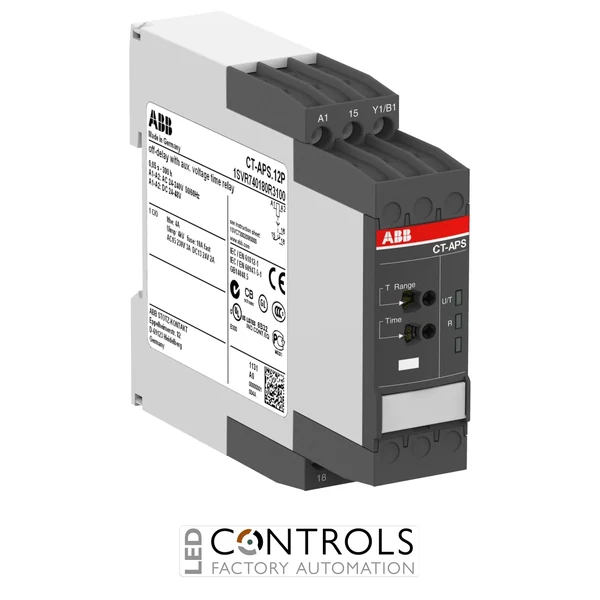

Why Choose the ABB CT-APS.12P OFF-Delay Timer?
The ABB CT-APS.12P is a reliable electronic OFF-delay timer relay designed for precise time-delayed switching in industrial automation, control panels and electrical control systems. As part of the proven ABB CT-S timer range, it provides an OFF-delay function with a single changeover relay output for flexible control applications.
The CT-APS.12P provides 10 selectable time ranges from 0.05 s to 300 h, allowing accurate timing control across a wide range of industrial applications. The timer operates from a rated control supply of 24–48 V DC / 24–240 V AC and provides a 1 c/o (SPDT) relay contact rated at 250 V / 4 A. Its voltage-related, non-floating control input provides the trigger for the timing function.
Featuring Easy Connect push-in terminals, front-face adjustment and a compact 22.5 mm DIN-rail housing, the CT-APS.12P is designed for straightforward installation within industrial control cabinets. Its OFF-delay operation keeps the relay output energised for the selected time after the control signal is removed.
Key Advantages
- Reliable OFF-delay timer relay for industrial automation.
- 10 selectable time ranges from 0.05 s to 300 h.
- Wide 24–48 V DC / 24–240 V AC control supply.
- 1 c/o (SPDT) relay contact for flexible switching.
- Voltage-related, non-floating control input for triggering the timing function.
- Maintenance-free Easy Connect push-in terminals simplify installation.
- Compact 22.5 mm wide DIN-rail housing for control cabinets.
Key Features
- ABB CT-APS.12P OFF-delay timer relay.
- OFF-delay / delay-on-break timing function.
- 10 selectable time ranges.
- 0.05 s to 300 h timing range.
- 24–48 V DC / 24–240 V AC rated control supply.
- 1 c/o (SPDT) relay contact.
- Relay contact rated at 250 V / 4 A.
- Voltage-related, non-floating control input.
- Easy Connect push-in terminals.
- Precise timing adjustment using front-face operating controls.
- Compact 22.5 mm wide housing.
- Two LEDs for status indication.
- DIN-rail mounting for control panel installation.
Reliable OFF-Delay Control for Industrial Automation
OFF-delay timer relays such as the ABB CT-APS.12P provide controlled switching after the control signal is removed. This makes the timer useful where equipment, motors, fans, lighting circuits or other loads need to remain energised for a defined period before switching off.
The CT-APS.12P combines an OFF-delay function with ten selectable time ranges and a wide control supply covering 24–48 V DC and 24–240 V AC. Its single changeover relay output provides flexible switching within automation and control circuits, while the voltage-related control input, compact DIN-rail housing and push-in terminals support efficient panel installation.
Typical Applications
- Industrial automation and control panels.
- Delayed shutdown and run-on circuits.
- Motor and actuator control systems.
- Fan and ventilation run-on applications.
- Machine control and production equipment.
- Lighting and electrical control systems.
- Sequencing and interlocking applications.
- OEM machinery and industrial automation equipment.
