Why Choose the ABB DW2 Digital Time Switch?

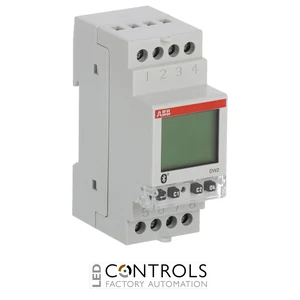

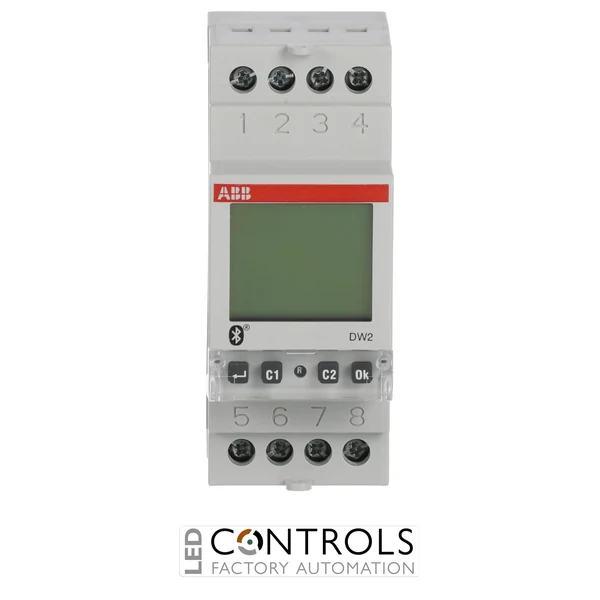

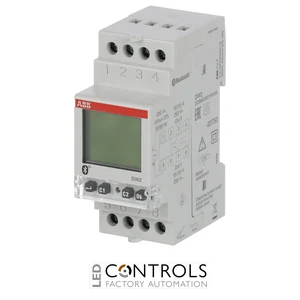

The ABB DW2 is a versatile two-channel digital weekly time switch designed for automatic control of lighting and other electrical loads according to programmed daily and weekly schedules. As part of the ABB DW digital time switch series, it combines flexible electronic scheduling with Bluetooth connectivity for convenient configuration in residential, commercial and industrial electrical installations.
The DW2 provides two independent switching channels, allowing separate electrical circuits or loads to be controlled from a single DIN-rail device. Up to 120 programme events can be stored, while standard, impulse, cycle, random and holiday functions provide flexibility for applications requiring precise and repeatable automatic switching.
Operating from a 230 V AC, 50/60 Hz supply, the DW2 features two change-over relay contacts with a maximum switching current of 16 A. Bluetooth communication enables programming and settings to be transferred using a compatible smartphone or tablet, while a replaceable backup battery preserves settings during interruptions to the mains supply.
Key Advantages
- Flexible weekly digital time switch for automated electrical load control.
- Two independent switching channels for controlling separate circuits or loads.
- Up to 120 programme events for comprehensive weekly scheduling.
- Bluetooth connectivity enables convenient programming from compatible mobile devices.
- Supports standard, impulse, cycle, random and holiday programme functions.
- Replaceable backup battery maintains settings during mains power interruptions.
- Compact 2-module DIN-rail design for straightforward installation in distribution boards and control panels.
Key Features
- ABB DW digital time switch series.
- Two independent switching channels.
- Digital weekly programming.
- 230 V AC, 50/60 Hz supply.
- Two change-over relay contacts.
- Maximum switching current of 16 A.
- Up to 120 programme events.
- Minimum standard switching interval of 1 minute.
- Impulse programming with 1 second resolution.
- Bluetooth interface for smartphone and tablet configuration.
- Running reserve for retention of settings during power interruptions.
- Compact 2-module DIN-rail mounting format.
Flexible Weekly Time Control
The ABB DW2 provides automatic time-based control of electrical equipment using programmable weekly schedules. Its two independent channels allow different loads to follow separate switching programmes, making one device suitable for installations that would otherwise require multiple individual timers.
Bluetooth connectivity simplifies commissioning and subsequent programme changes by allowing schedules and settings to be created on a compatible mobile device and transferred to the time switch. The backup battery retains settings during mains interruptions, helping ensure dependable scheduled operation in modern electrical installations.
Typical Applications
- Commercial and residential lighting control.
- Shop windows and illuminated advertising signs.
- Heating and ventilation equipment.
- Irrigation and fountain control systems.
- School and office building services.
- Electrical equipment requiring scheduled weekly operation.
