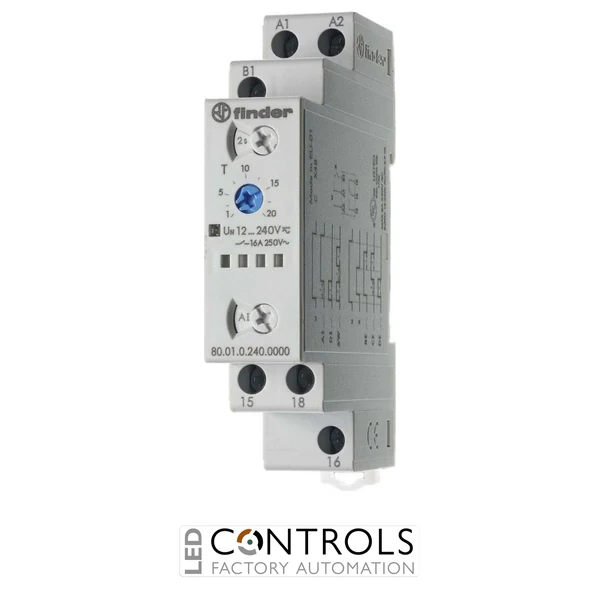

Why Choose the Finder 80.01.0.240.0000T Multifunction Timer Relay?
The Finder 80.01.0.240.0000T is a multifunction, multivoltage timer relay designed for railway applications, offering flexible time-delay control for industrial automation, electrical switching and railway control systems. Part of the Finder 80 Series, this modular timer provides six selectable timing functions, a universal 12–240 V AC/DC supply and an adjustable timing range from 0.1 seconds to 24 hours.
Featuring a single changeover (SPDT / 1 CO) relay output, the Finder 80.01.0.240.0000T supports delayed switching, interval operation, cyclic timing and externally controlled timing sequences. Its configurable functions make it suitable for applications requiring precise sequencing, delayed activation, controlled shutdown or repeated switching intervals without the complexity of a programmable controller.
The T suffix identifies a special railway-oriented version of the Finder 80.01 timer. This variant is associated with railway fire behaviour and vibration requirements, including EN 45545-2 and EN 61373. With screw terminal connections, LED indication and a compact DIN rail-mounted design, it provides a practical timing solution for railway electrical equipment and demanding industrial control panels.
Key Advantages
- Six selectable timing functions provide versatile control for industrial and railway applications.
- Universal 12–240 V AC/DC supply supports a wide range of control voltages.
- Adjustable timing from 0.1 seconds to 24 hours accommodates short delays and extended timing sequences.
- Single changeover (SPDT) output provides normally open and normally closed switching functionality.
- Railway-oriented T variant is designed for applications requiring consideration of railway-specific environmental standards.
- EN 45545-2 railway fire behaviour requirements support use in appropriately specified railway equipment.
- EN 61373 vibration and shock requirements support railway-related installation requirements.
- External START control input enables selected timing functions to be controlled by an external signal.
- LED status indication assists with operation checks and troubleshooting.
- Screw terminal connections provide straightforward electrical installation.
- DIN rail mounting simplifies integration into electrical cabinets.
- IP20 protection rating for installation within a suitable enclosure.
- −25 to +55 °C operating temperature range supports railway and industrial environments.
Key Features
- Finder 80 Series multifunction modular timer relay.
- Type 80.01 with six selectable timing functions.
- Special T version for railway applications.
- 12–240 V AC supply compatibility.
- 12–240 V DC supply compatibility.
- 0.1 s to 24 h adjustable timing range.
- One changeover relay output (1 CO / SPDT).
- Six operating functions: AI, DI, SW, BE, CE and DE.
- ON-delay operation for delayed activation.
- Interval timing for timed output activation.
- Symmetrical cyclic operation for repeated switching sequences.
- Control-signal timing functions using the external START input.
- Front-mounted timing and function adjustment.
- LED operating indication.
- Screw terminal connections.
- 35 mm DIN rail mounting in accordance with EN 60715.
- IP20 protection rating.
- Railway-related EN 45545-2 and EN 61373 requirements.
Technical Specifications
- Manufacturer: Finder
- Series: 80 Series
- Type: 80.01
- Manufacturer part number: 80.01.0.240.0000T
- Product type: Multifunction modular timer relay
- Variant: Special railway version (T)
- Supply voltage: 12–240 V AC/DC
- Minimum timing setting: 0.1 s
- Maximum timing setting: 24 h
- Number of timing functions: 6
- Timing functions: AI, DI, SW, BE, CE, DE
- Output configuration: 1 changeover (1 CO)
- Output contact arrangement: SPDT
- External control input: START
- Number of connection terminals: 6
- Terminal type: Screw terminals
- Timing adjustment: Front-mounted function, range and time selectors
- Status indication: LED
- Mounting type: DIN rail
- DIN rail standard: EN 60715
- Protection rating: IP20
- Operating temperature: −25 to +55 °C
- Railway fire behaviour standard: EN 45545-2 + A1:2016
- Railway shock and vibration standard: EN 61373
- Application category: Railway and industrial automation
- EAN: 8012823355085
Multifunction Timing Control for Railway and Industrial Automation
Timing relays are essential components in electrical control systems where operations must occur after a defined delay, remain active for a specified interval or repeat according to a programmed sequence. The Finder 80.01.0.240.0000T provides six selectable timing functions, enabling engineers to configure a wide variety of switching sequences using one compact modular device.
The available functions include AI (ON delay), DI (interval), SW (symmetrical flasher, starting with ON), BE (OFF delay with control signal), CE (ON and OFF delay with control signal) and DE (interval with control signal). These functions can be selected to suit the required application, while the adjustable timing range allows operation from fractions of a second through to extended delays of up to 24 hours.
The 12–240 V AC/DC supply range allows the timer to be incorporated into electrical control systems operating at different voltages. Its single changeover output can be used to control compatible contactor coils, signalling circuits and auxiliary loads, subject to the applicable output contact ratings and load characteristics.
The railway-oriented T variant is particularly relevant where equipment specifications require consideration of fire behaviour, vibration and shock performance. Engineers should verify the applicable installation conditions and railway approval requirements against the manufacturer's documentation before selecting the device for a particular vehicle or infrastructure project.
Typical Applications
- Railway vehicle electrical control systems.
- Railway auxiliary equipment and timing circuits.
- Railway signalling and control interfaces where the device meets the applicable system requirements.
- Industrial automation timing and sequencing.
- Delayed contactor and auxiliary relay operation.
- Electrical control panels and distribution equipment.
- Motor-control sequencing and timed switching.
- Door, gate and access-control equipment.
- Lifts, hoists and material handling systems.
- Timed lighting and auxiliary equipment control.
- Intermittent switching and cyclic control circuits.
- Industrial machinery requiring adjustable ON-delay, OFF-delay or interval functions.
