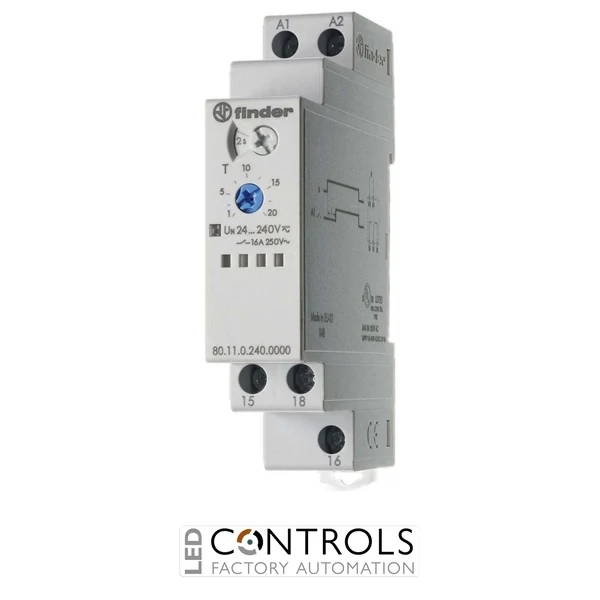

Why Choose the Finder 80.11.0.240.0000T ON-Delay Timer Relay?
The Finder 80.11.0.240.0000T is a railway-oriented ON-delay timer relay designed for controlled switching, delayed activation and electrical sequencing in railway and industrial automation applications. Part of the Finder 80 Series, this modular timer features a wide 24–240 V AC/DC supply range, an adjustable timing range from 0.1 seconds to 24 hours and a single changeover (SPDT / 1 CO) output rated at 16 A.
Unlike multifunction timers, the Finder 80.11.0.240.0000T provides a dedicated ON-delay (AI) timing function. When the supply voltage is applied, the timer begins its preset delay, and the output relay changes state once the selected time has elapsed. Removing the supply resets the timer, making it suitable for delayed equipment activation, contactor sequencing and auxiliary control circuits.
The T suffix identifies the railway-oriented variant, specified for applications involving railway fire behaviour and mechanical environmental requirements, including EN 45545-2 and EN 61373. Its compact 17.5 mm-wide housing, screw terminal connections, LED indication and 35 mm DIN rail mounting make it practical for installation in railway electrical cabinets and industrial control panels.
Key Advantages
- Dedicated ON-delay function provides straightforward delayed switching without unnecessary programming.
- 24–240 V AC/DC supply range accommodates a wide selection of industrial and railway control voltages.
- Adjustable timing from 0.1 seconds to 24 hours supports both short and extended activation delays.
- 16 A rated changeover contact offers substantial switching capability for compatible electrical loads.
- 250 V AC rated switching voltage supports common industrial control applications.
- Railway-oriented T variant is suitable for applications requiring consideration of railway-specific standards.
- EN 45545-2 railway fire behaviour requirements support appropriately specified railway equipment.
- EN 61373 shock and vibration requirements support railway environmental applications.
- Single changeover output provides normally open and normally closed switching connections.
- Six selectable time scales allow flexible adjustment of the required delay.
- 17.5 mm slimline construction helps maximise available DIN rail space.
- Screw terminals and LED indication simplify installation and operational checks.
- 35 mm DIN rail mounting enables convenient integration into electrical enclosures.
Key Features
- Finder 80 Series modular timer relay.
- Type 80.11 single-function ON-delay timer.
- Special T variant for railway applications.
- 24–240 V AC supply compatibility.
- 24–240 V DC supply compatibility.
- 50/60 Hz AC supply operation.
- ON-delay (AI) timing function.
- 0.1 s to 24 h adjustable timing range.
- Six selectable timing scales.
- One changeover relay output (1 CO / SPDT).
- 16 A rated contact current.
- 250 V AC rated contact voltage.
- Supply-voltage-triggered timing with reset when supply power is removed.
- Front-mounted timing adjustment using screwdriver-operated selectors.
- Integrated LED operating indication.
- Screw terminal connections.
- 17.5 mm housing width.
- 35 mm DIN rail mounting.
- IP20 protection rating.
- −25 to +55 °C operating temperature range.
Technical Specifications
- Manufacturer: Finder
- Series: 80 Series
- Type: 80.11
- Manufacturer part number: 80.11.0.240.0000T
- Product type: Single-function ON-delay timer relay
- Variant: Railway-oriented T version
- Supply voltage: 24–240 V AC/DC
- AC supply frequency: 50/60 Hz
- Timing function: AI — ON delay
- Number of timing functions: 1
- Minimum timing setting: 0.1 s
- Maximum timing setting: 24 h
- Number of time scales: 6
- Timing initiation: Application of supply voltage
- Reset method: Removal of supply voltage
- Number of output contacts: 1
- Output configuration: 1 changeover (1 CO)
- Output contact arrangement: SPDT / 1 Form C
- Rated contact current: 16 A
- Rated contact voltage: 250 V AC
- Terminal type: Screw terminals
- Timing adjustment: Front-mounted screwdriver-operated selectors
- Status indication: LED
- Mounting type: 35 mm DIN rail
- DIN rail standard: EN 60715
- Housing width: 17.5 mm
- Protection rating: IP20
- Operating temperature: −25 to +55 °C
- Railway fire behaviour standard: EN 45545-2 + A1:2016
- Railway shock and vibration standard: EN 61373
- Application category: Railway and industrial automation
- EAN: 8012823355092
Reliable ON-Delay Timing for Railway and Industrial Control Systems
Electrical control systems frequently require equipment to start only after a defined delay. The Finder 80.11.0.240.0000T provides this functionality through its dedicated AI ON-delay operating mode. When supply voltage is applied, the timing sequence begins while the output remains in its initial state. Once the preset delay expires, the changeover contact transfers, allowing the connected control circuit to operate.
When the supply is removed, the relay returns to its initial state and the timing cycle resets. This makes the device suitable for delayed contactor energisation, staged equipment activation, sequential control and auxiliary switching where a repeatable power-on delay is required.
The timer's 24–240 V AC/DC operating range allows it to be used across different control supply arrangements, while its 16 A changeover contact provides switching capability for appropriately rated loads. For inductive loads, contactors or motor-control equipment, the applicable utilisation category and manufacturer's switching limits should be checked before installation.
The railway-oriented T version is intended for applications where fire behaviour, shock and vibration requirements are important selection criteria. Compliance with a railway equipment specification must be assessed at system level, including the relevant installation conditions and any additional project-specific approvals.
Typical Applications
- Railway vehicle electrical control systems.
- Railway auxiliary equipment activation delays.
- Railway electrical cabinets and control interfaces.
- Delayed contactor and auxiliary relay energisation.
- Industrial machinery start-up sequencing.
- Electrical control panels and distribution equipment.
- Motor-control circuits requiring timed activation.
- Ventilation and auxiliary equipment start delays.
- Automated doors, gates and access-control equipment.
- Lifts, hoists and material handling systems.
- Building automation and timed electrical switching.
- Industrial automation applications requiring a single adjustable ON-delay function.
